Transfer Case Shift Control Switch Connector End View C1

Fig 1: Transfer Case Shift Control Switch Connector End View C1
G01671153Courtesy of GENERAL MOTORS CORP.

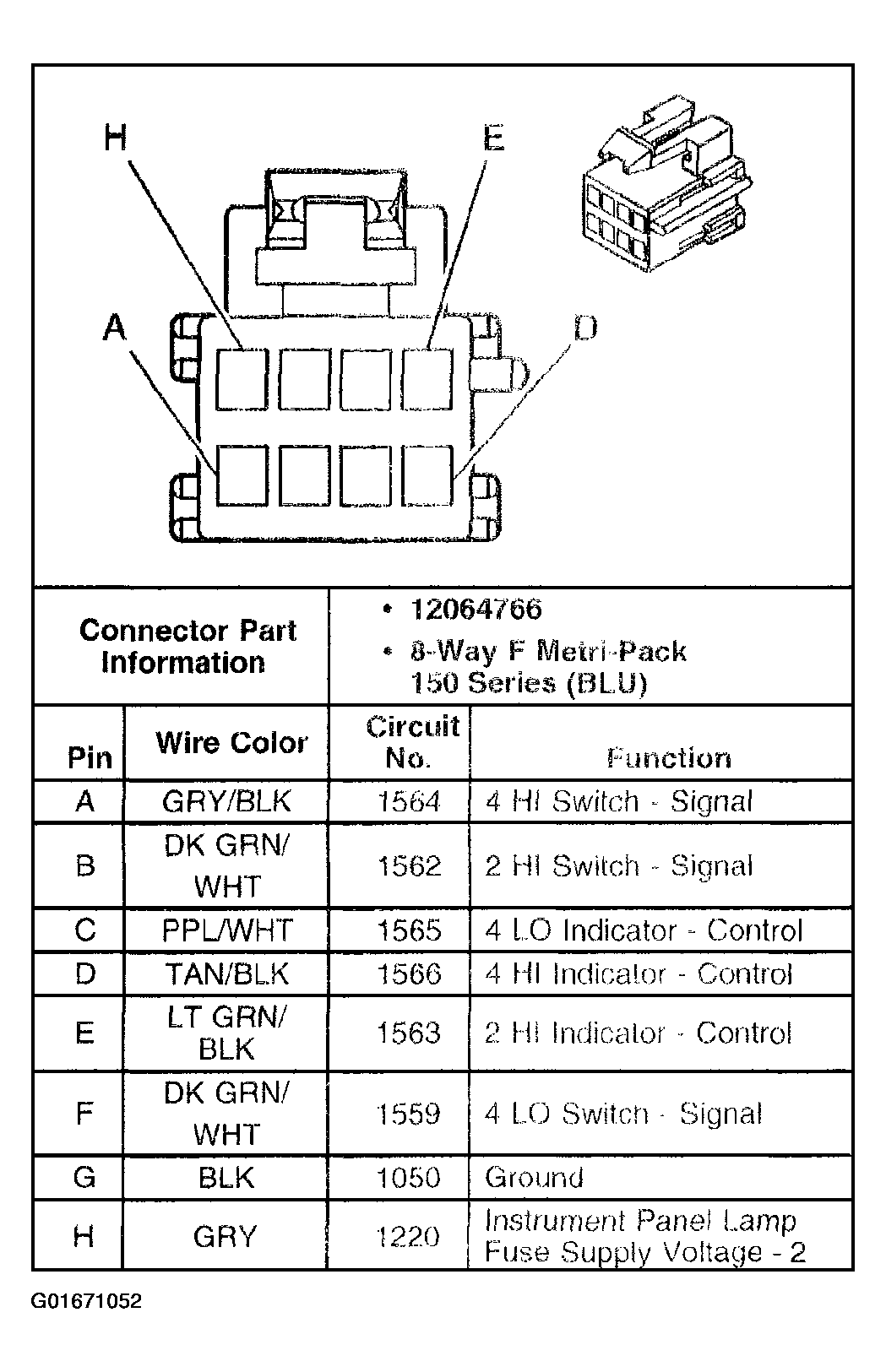

Fig 1: Transfer Case Shift Control Switch Connector End View C1
G01671052Courtesy of GENERAL MOTORS CORP.
