Propshaft Speed Sensor Connector End View - Front

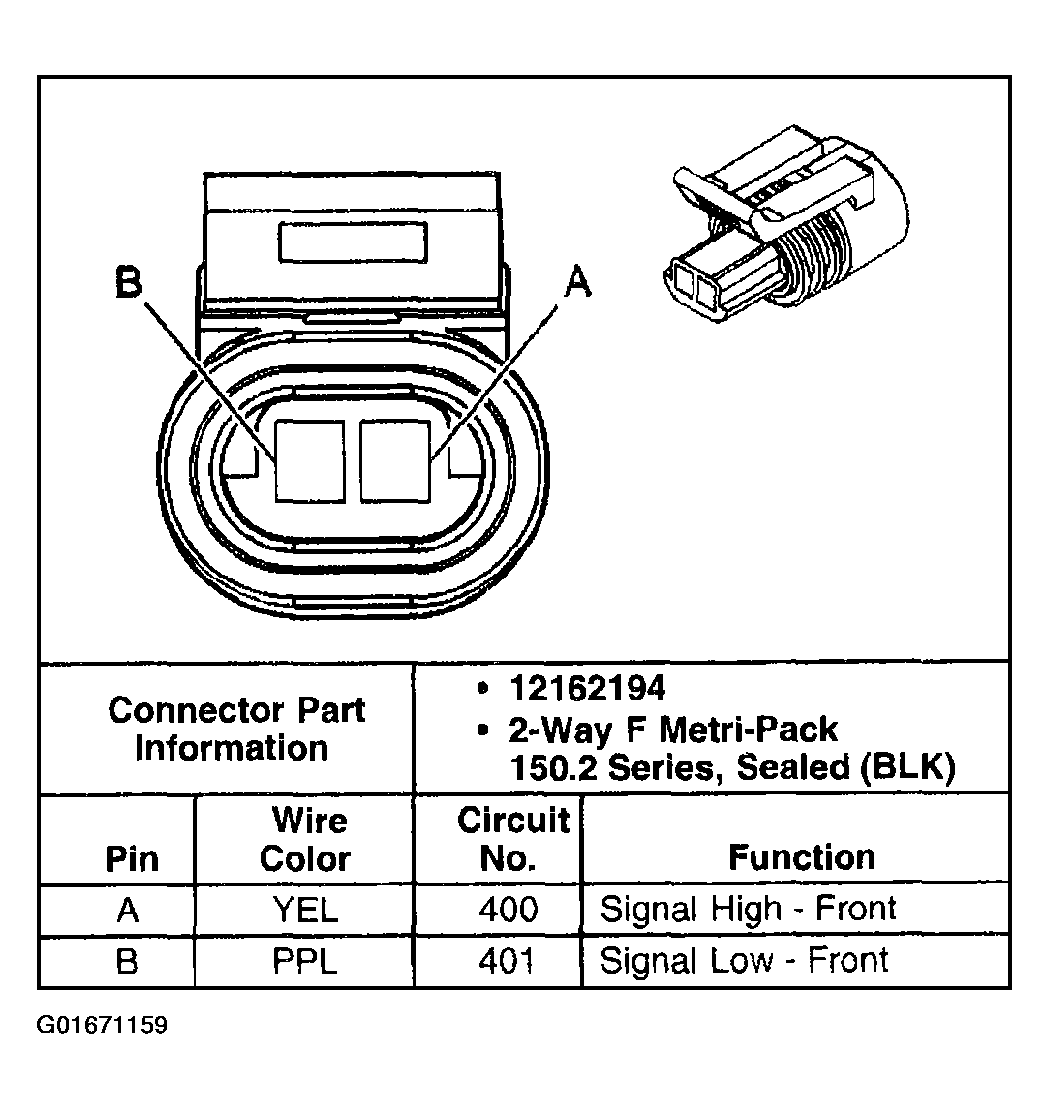

Fig 1: Propshaft Speed Sensor Connector End View - Front

G01671159

Courtesy of GENERAL MOTORS CORP.
