Heated Seat Control Module Connector End View - Driver/Front Passenger

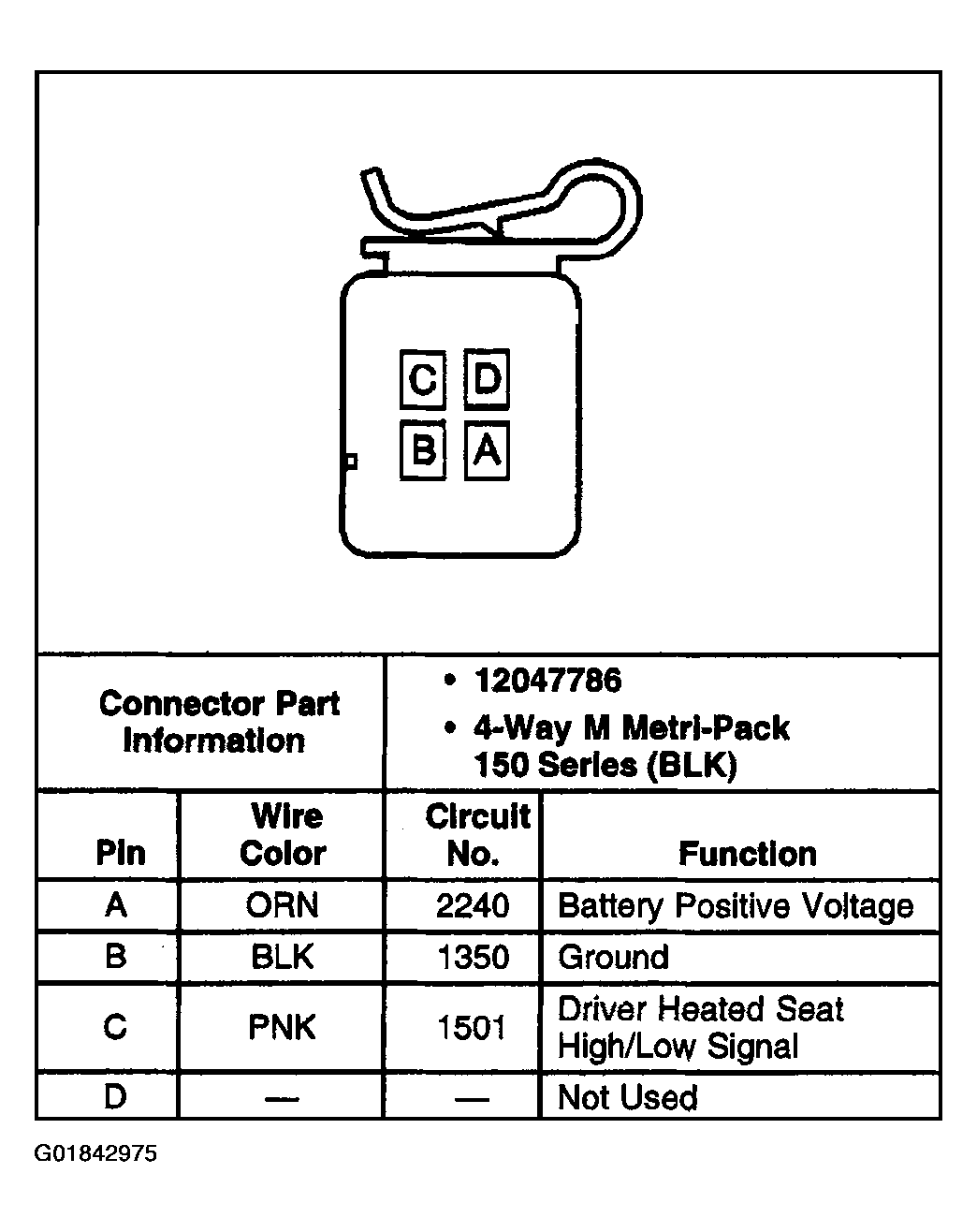

Fig 1: Heated Seat Control Module Connector End View - Driver/Front Passenger

G01842975

Courtesy of GENERAL MOTORS CORP.
