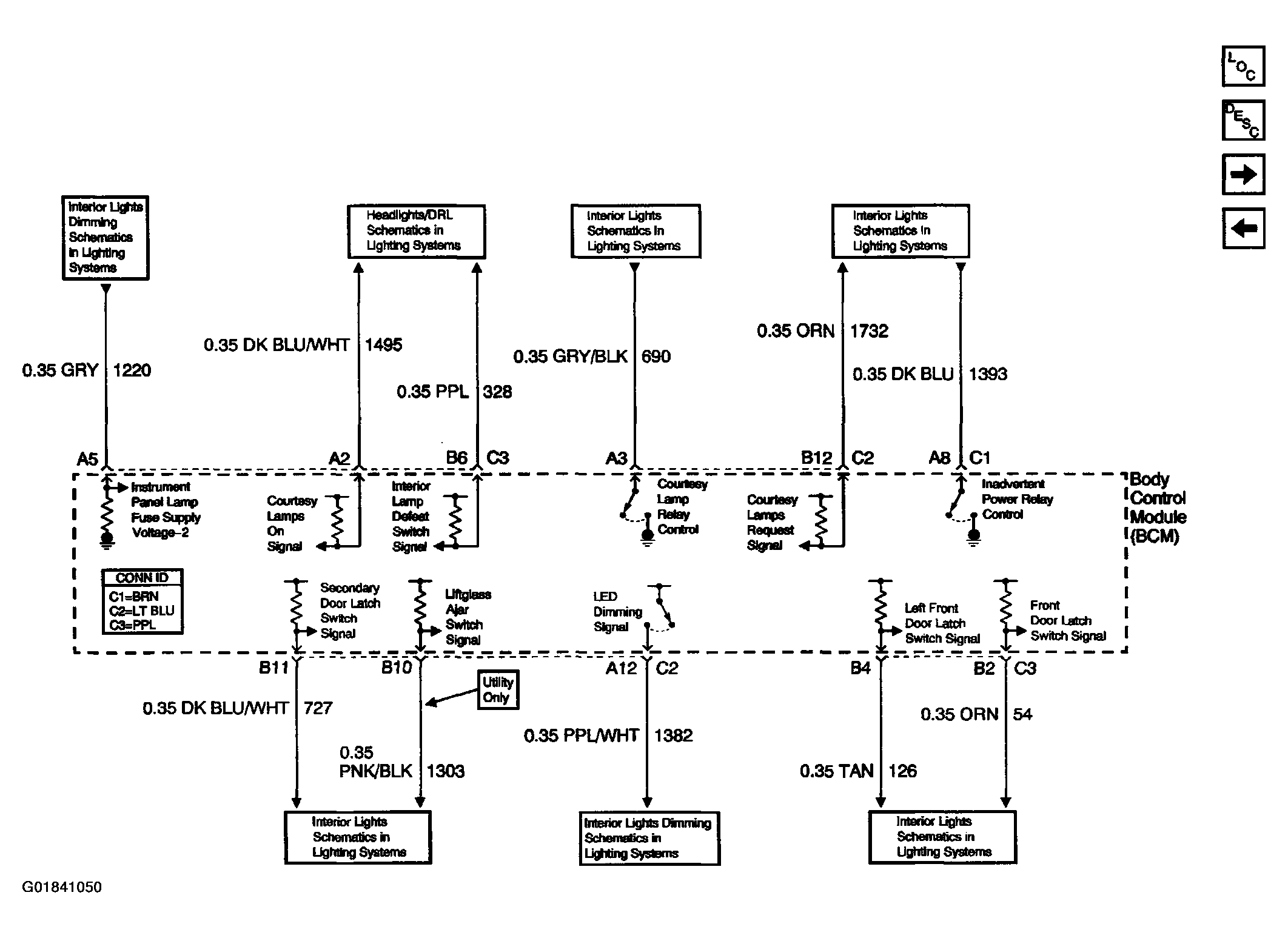

Home >> GMC >> 2002 >> Jimmy 4D Utility, 4WD, Automatic >> Repair and Diagnosis >> Accessories & Equipment >> Communication Devices >> Body Control System >> Schematic & Routing Diagrams >> Body Control Module Schematics >> Interior Lights References
