Power Steering Pump Disassembled View (P Series)

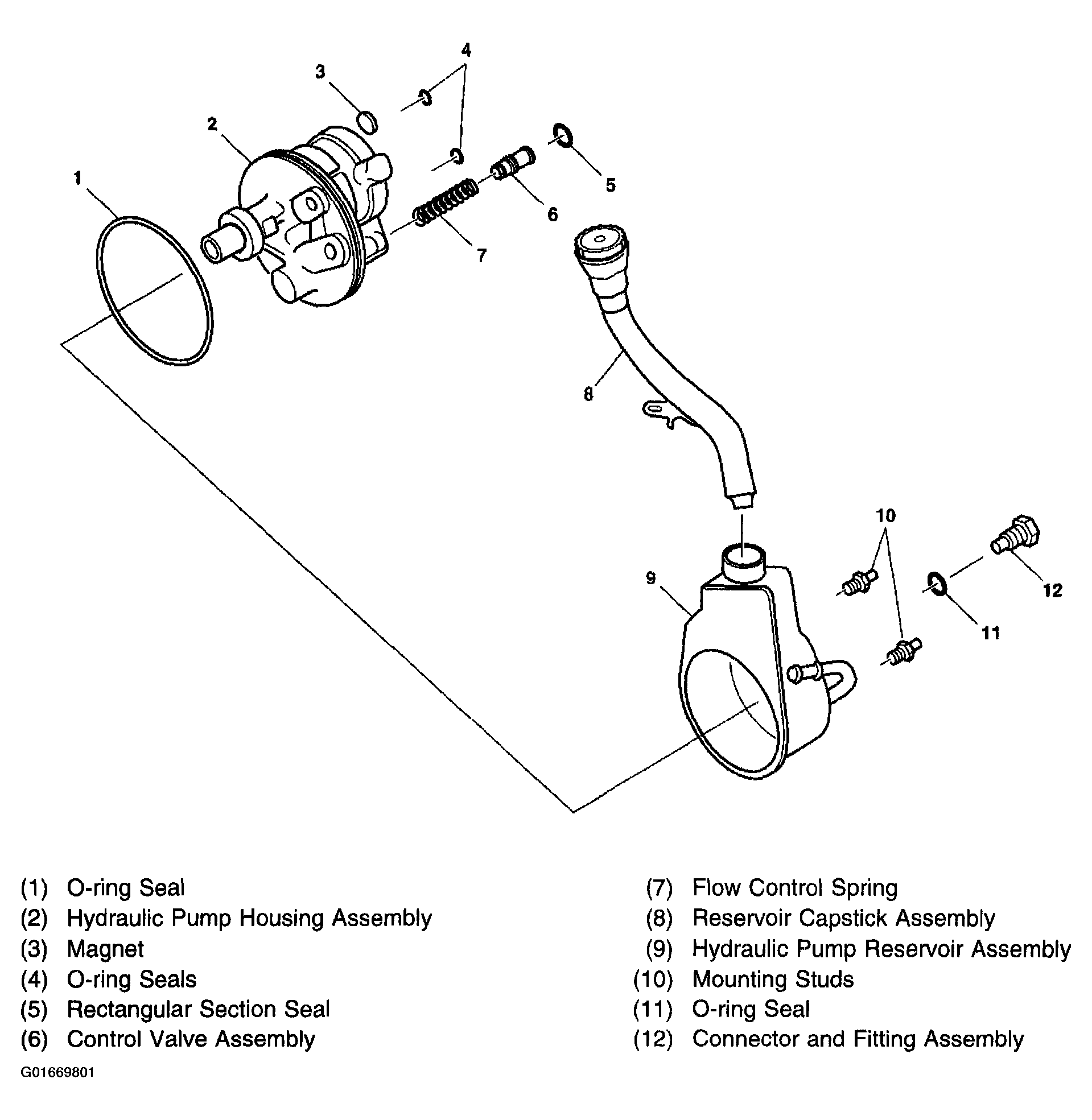

Fig 1: Power Steering Pump Reservoir Disassembled View (P Series)

G01669801

Courtesy of GENERAL MOTORS CORP.
