Steering Wheel Controls C2 Connector End View

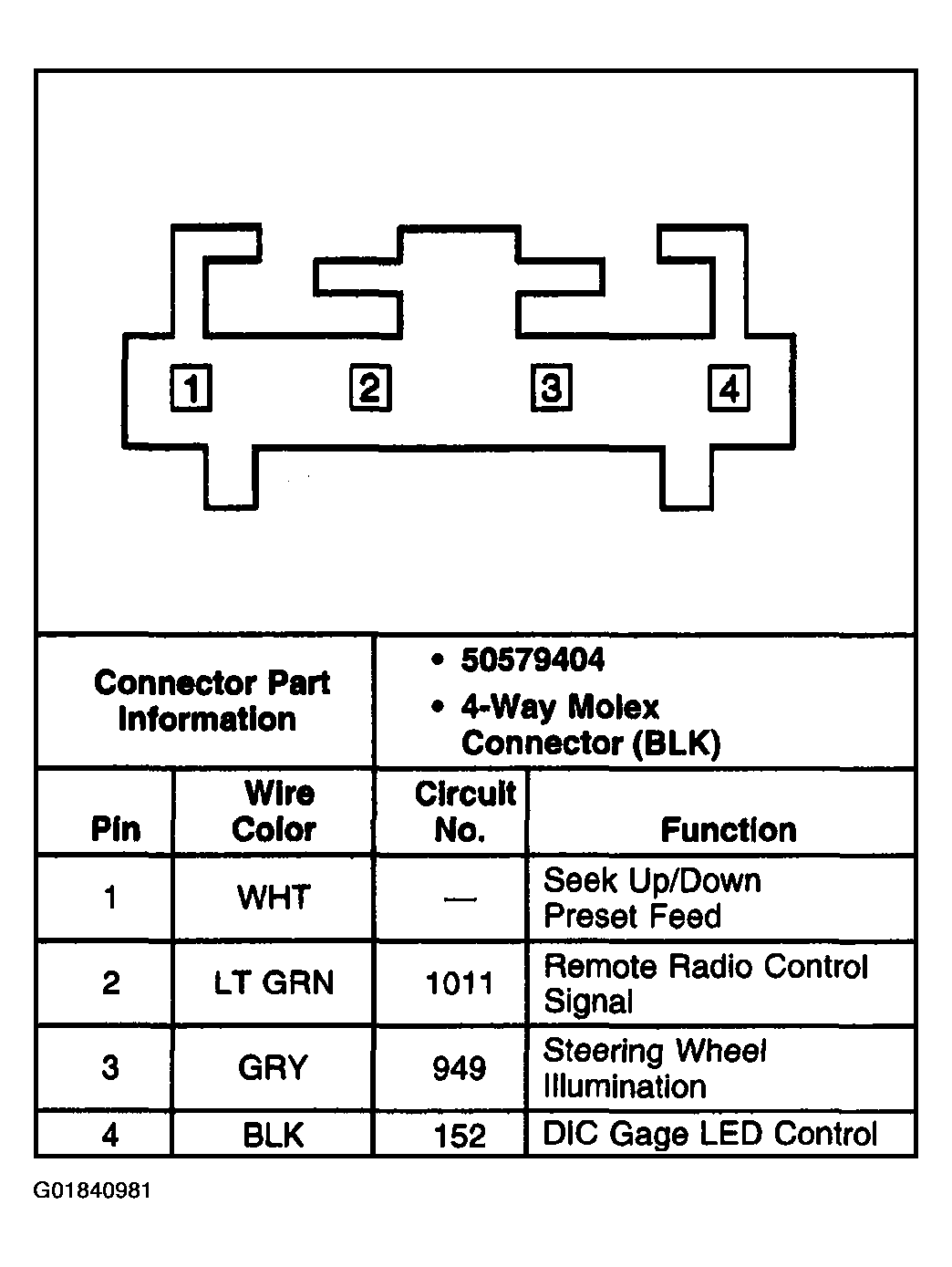

Fig 1: Steering Wheel Controls C2 Connector End View

G01840981

Courtesy of GENERAL MOTORS CORP.
