Propshaft Speed Sensor Connector End View - Rear

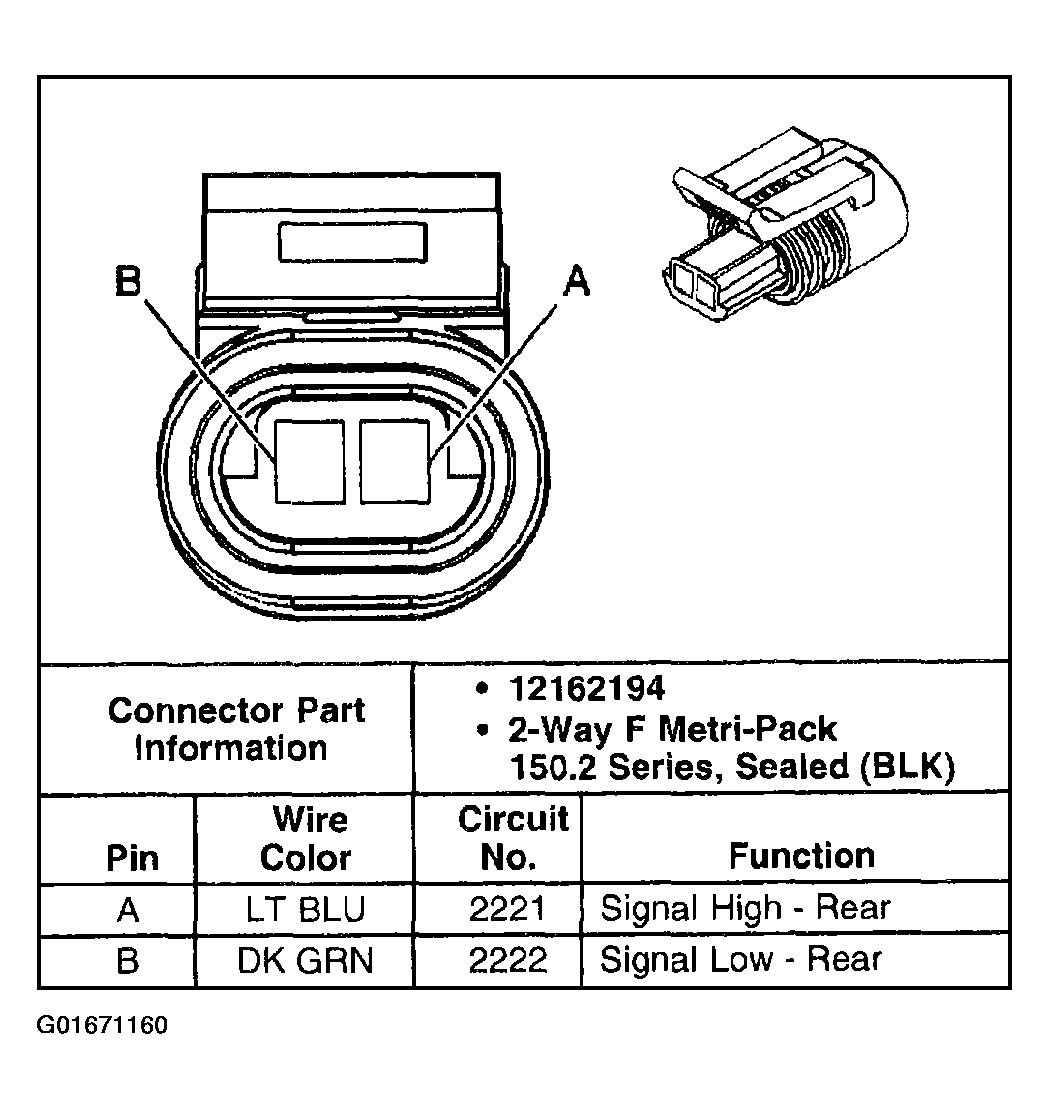

Fig 1: Propshaft Speed Sensor Connector End View - Rear

G01671160

Courtesy of GENERAL MOTORS CORP.
