Identifying Sunload Sensor Harness Connector End View

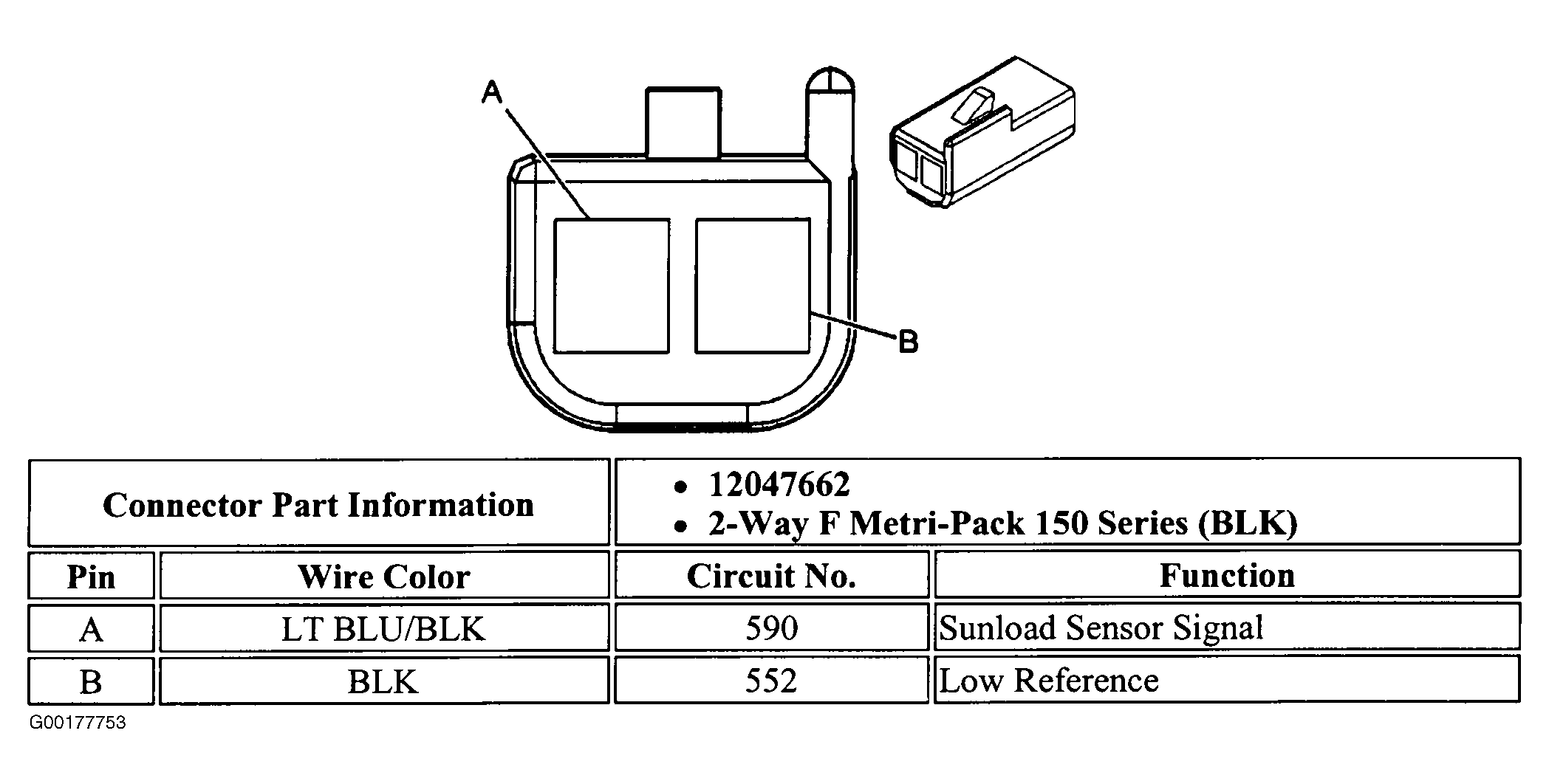

Fig 1: Identifying Sunload Sensor Harness Connector End View

G00177753

Courtesy of GENERAL MOTORS CORP.
