Identifying Air Temperature Sensor Harness Connector End View
Identifying Air Temperature Sensor Harness Connector End View

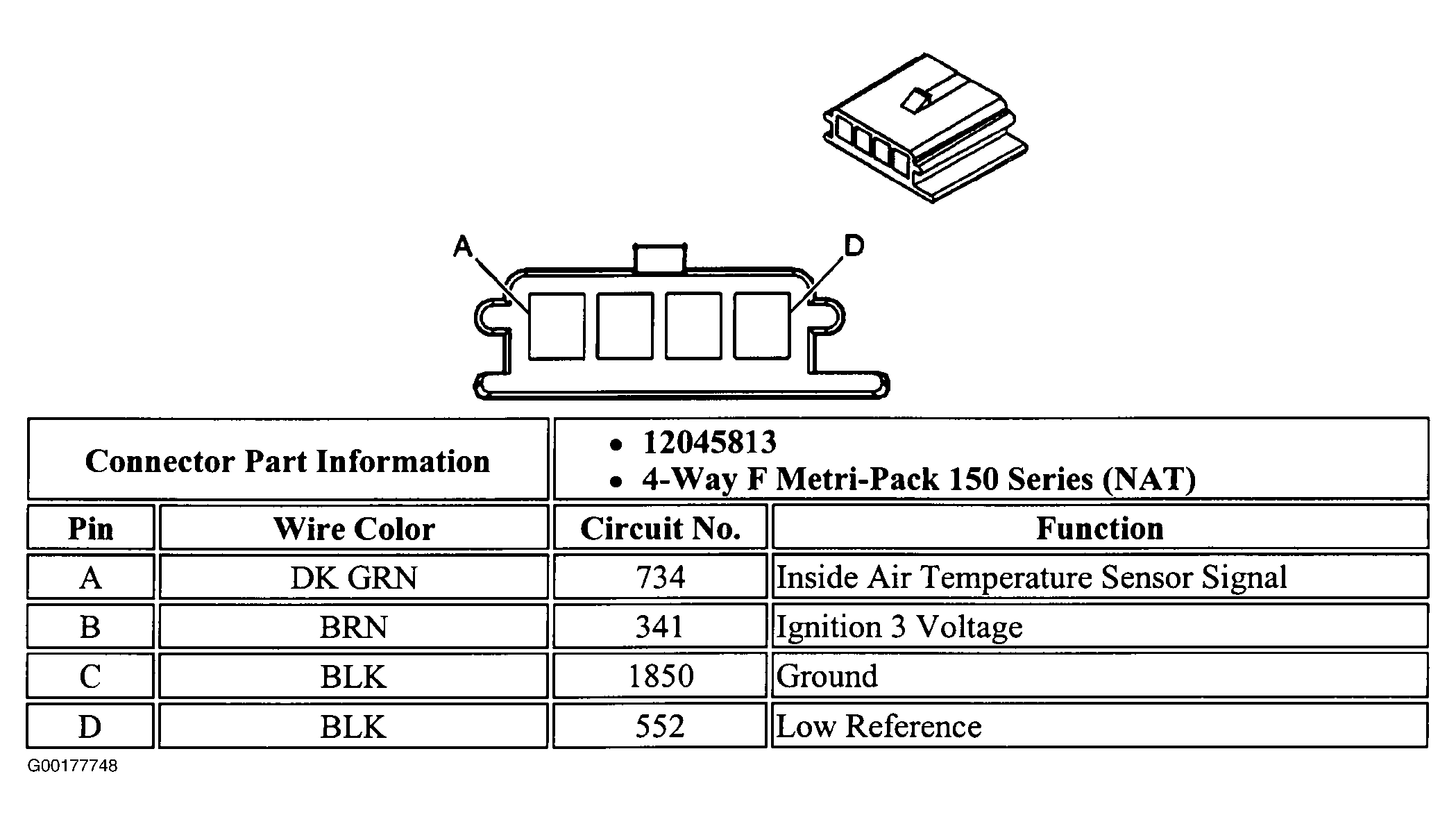

Fig 1: Identifying Air Temperature Sensor Harness Connector End View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
