I/P Compartment Lamp Connector End View

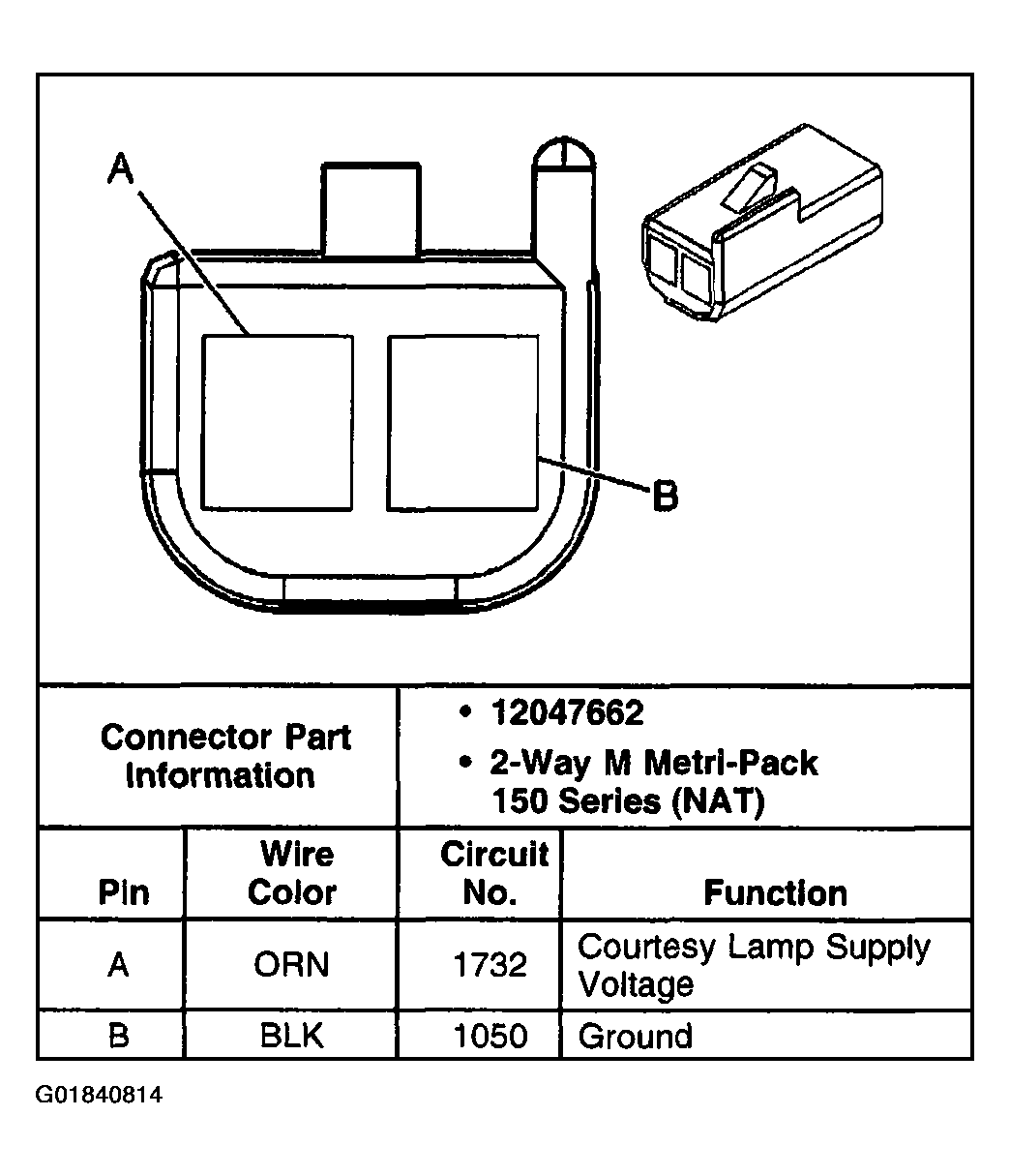

Fig 1: I/P Compartment Lamp Connector End View

G01840814

Courtesy of GENERAL MOTORS CORP.
