STOPLAMP Switch: Installation

WARNING: This page is about a different variant/trim than selected.

Install the electrical connector to the stoplamp switch. See Fig 3. Install the stoplamp switch and the pushrod to the brake pedal pin. See Fig 2. Install the pushrod retainer on the brake pedal pin. The retainer will snap into place. See Fig 1.

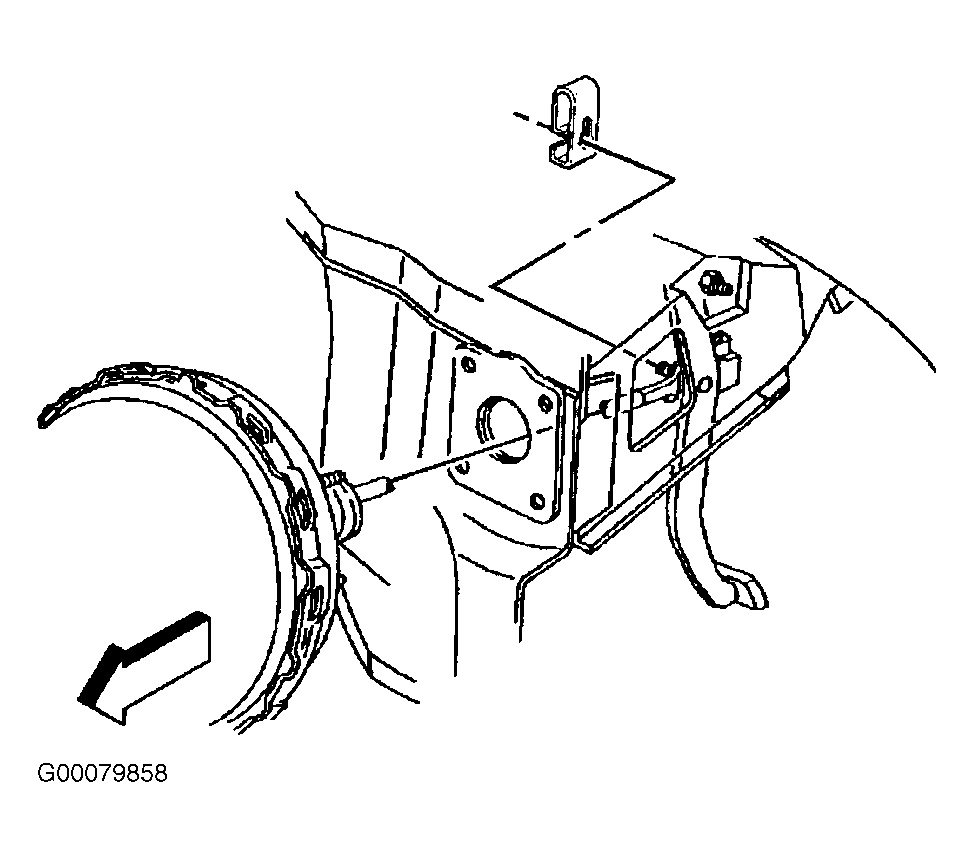

Fig 1: Removing & Installing Stoplamp Switch Retainer

Courtesy of GENERAL MOTORS CORP.

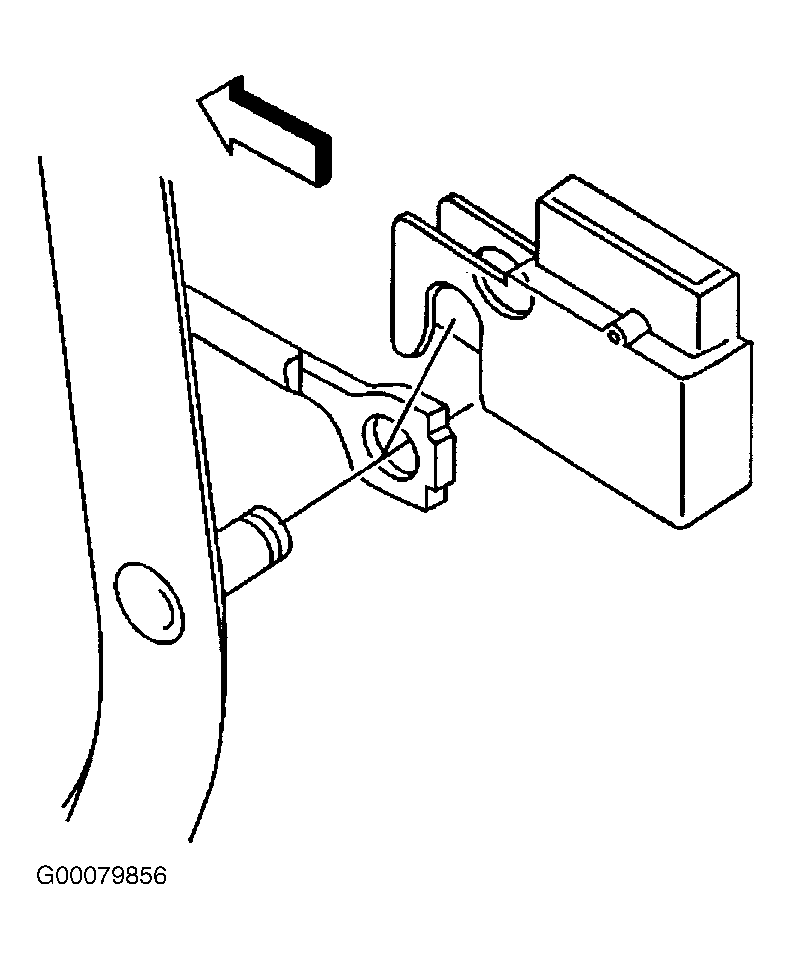

Fig 2: Removing & Installing Stoplamp Switch On Pedal Pin

Courtesy of GENERAL MOTORS CORP.

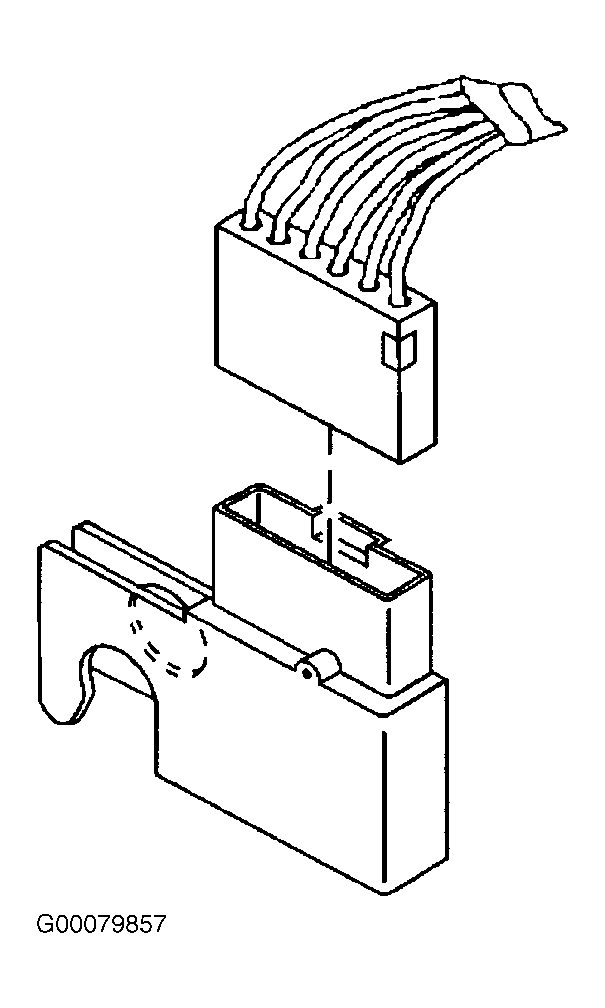

Fig 3: Removing & Installing Stoplamp Switch Harness Connector

Courtesy of GENERAL MOTORS CORP.
