Floor Shift Control: Installation

WARNING: This page is about a different variant/trim than selected.

Install the floor shift control to the floor panel. Install the nuts securing the shift controller to the floor panel. Tighten the nuts to 18 INCH lbs. (25 N.m). See Fig 3. Install shift lock solenoid connector. See Fig 4.
Install the shift cable onto shift control. Install cable retainer clip. See Fig 2.
Install the shift control cover. Install floor console, if equipped. See appropriate procedure.
Install the gearshift lever handle and boot assembly.

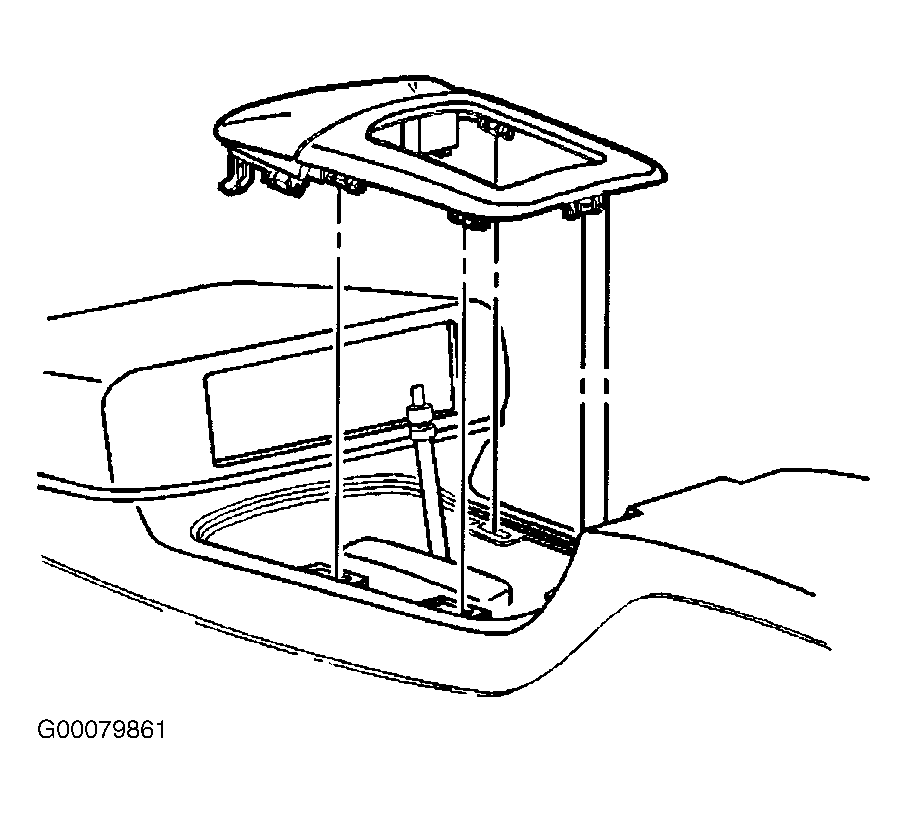

Fig 1: Removing & Installing Shift Control Cover

Courtesy of GENERAL MOTORS CORP.

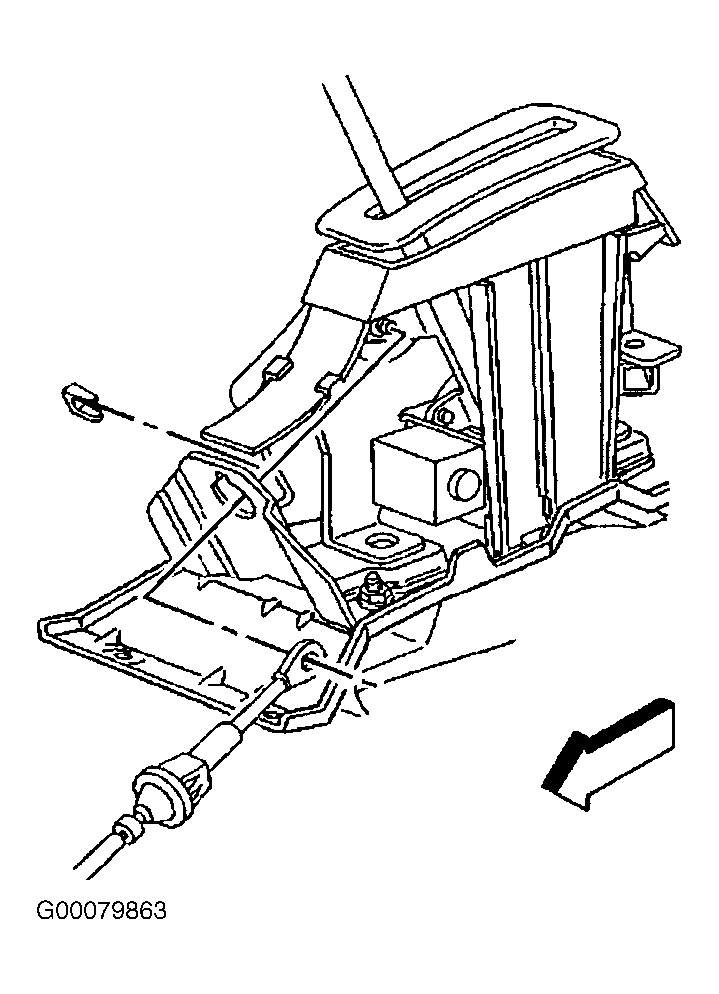

Fig 2: Removing & Installing Shift Cable At Shift Control Assembly

Courtesy of GENERAL MOTORS CORP.

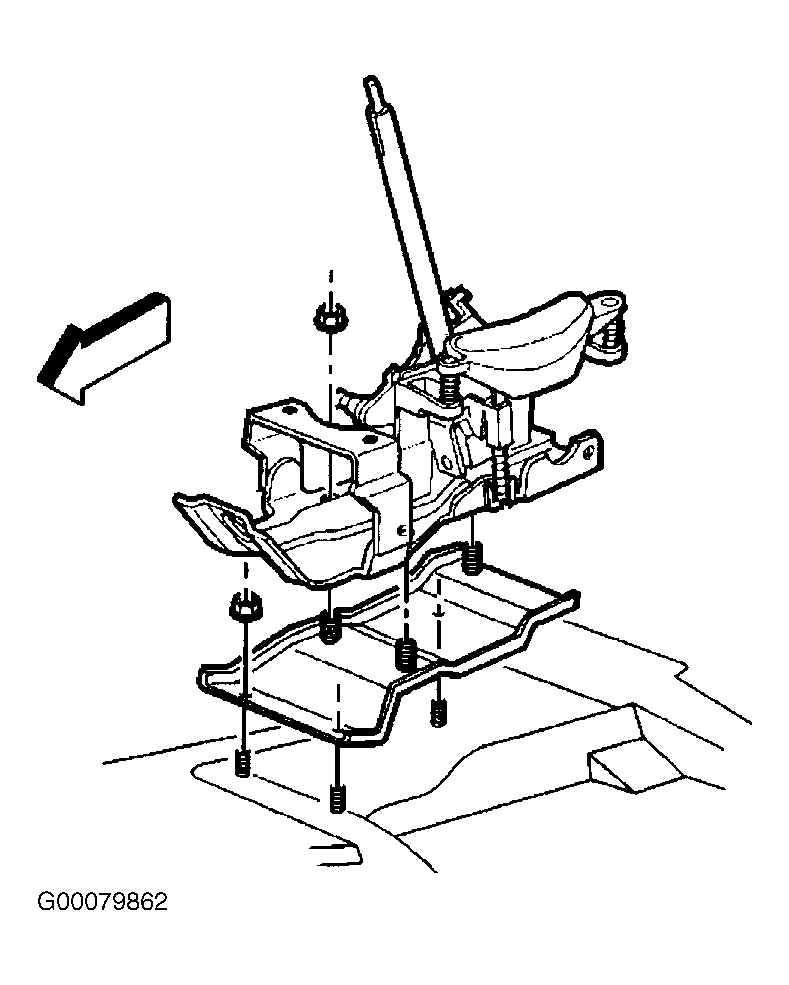

Fig 3: Removing & Installing Shift Control Assembly

Courtesy of GENERAL MOTORS CORP.

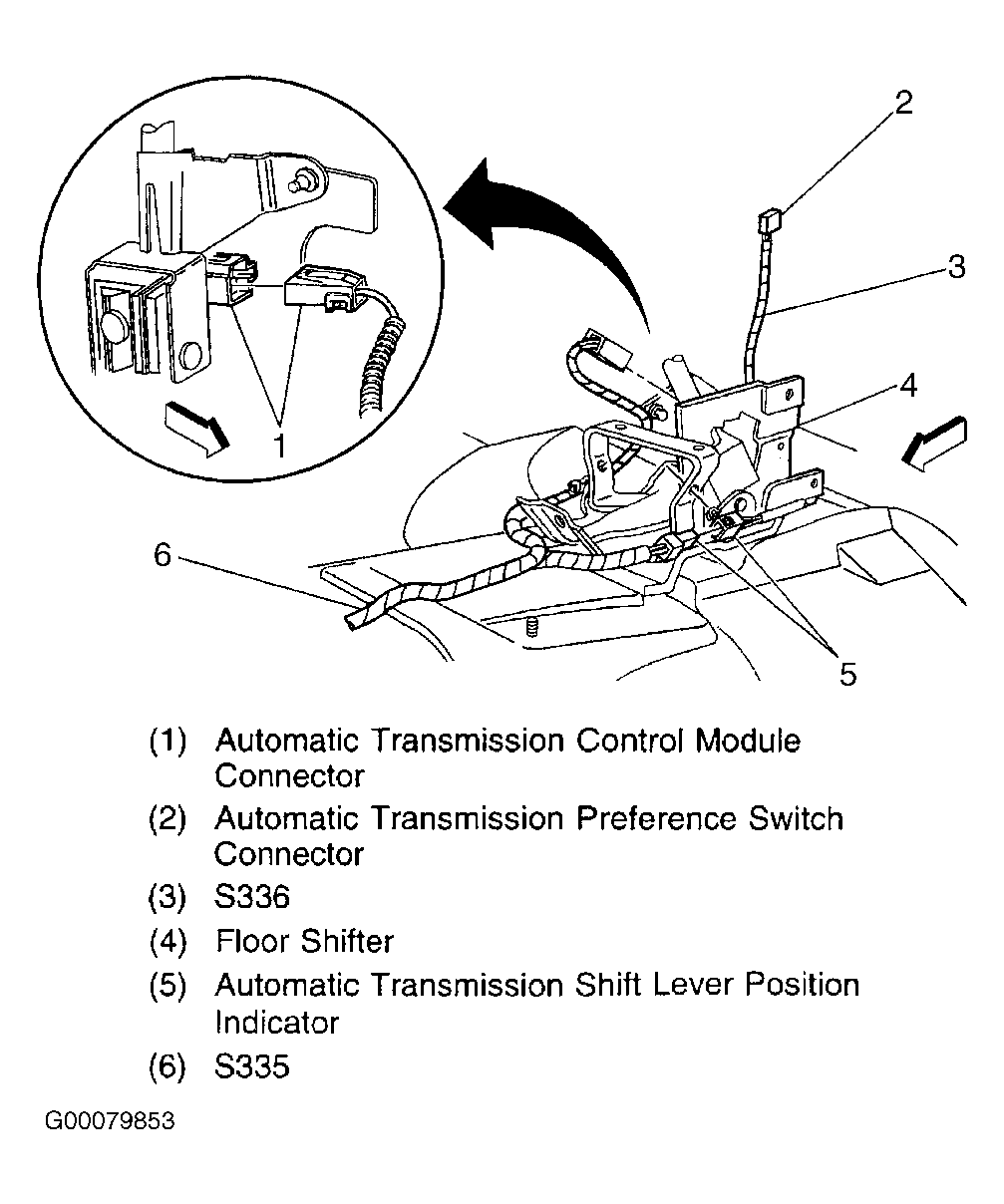

Fig 4: Removing & Installing Shift Lock Harness Connectors

Courtesy of GENERAL MOTORS CORP.
