Floor Shift Boot: Installation

WARNING: This page is about a different variant/trim than selected.

Install the shift boot to the console trim. Install the retainer securing the shift boot to the console trim. See Fig 1.

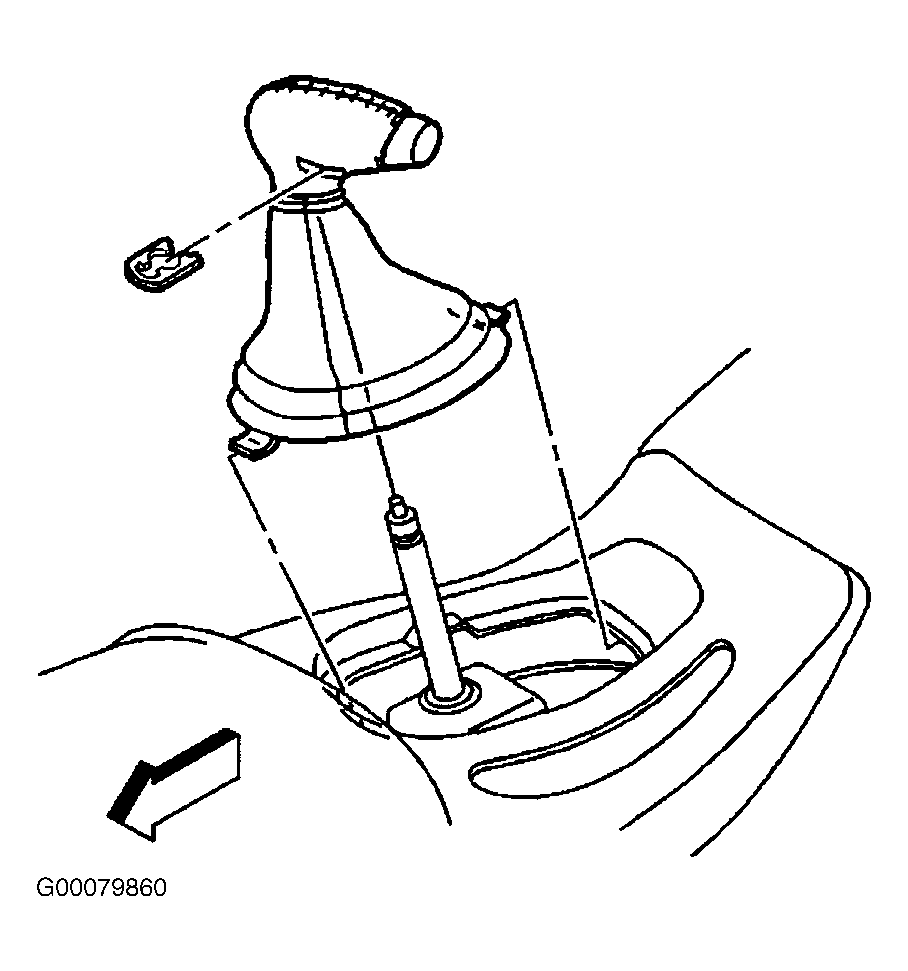

Fig 1: Removing & Installing Shift Boot

Courtesy of GENERAL MOTORS CORP.
