Connector Identification

WARNING: This page is about a different variant/trim than selected.

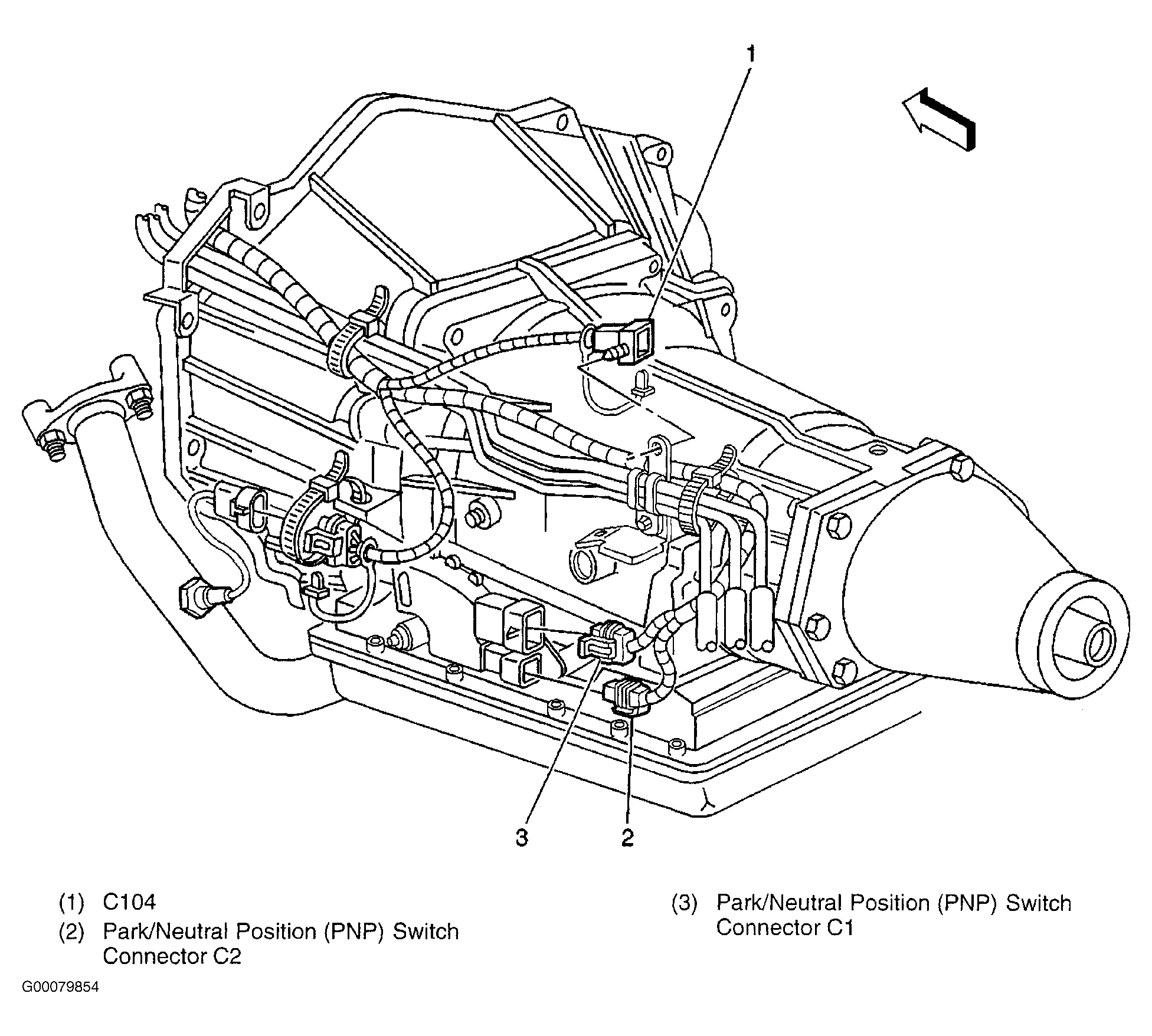

Fig 1: Locating PNP Switch Harness Connectors

Courtesy of GENERAL MOTORS CORP.

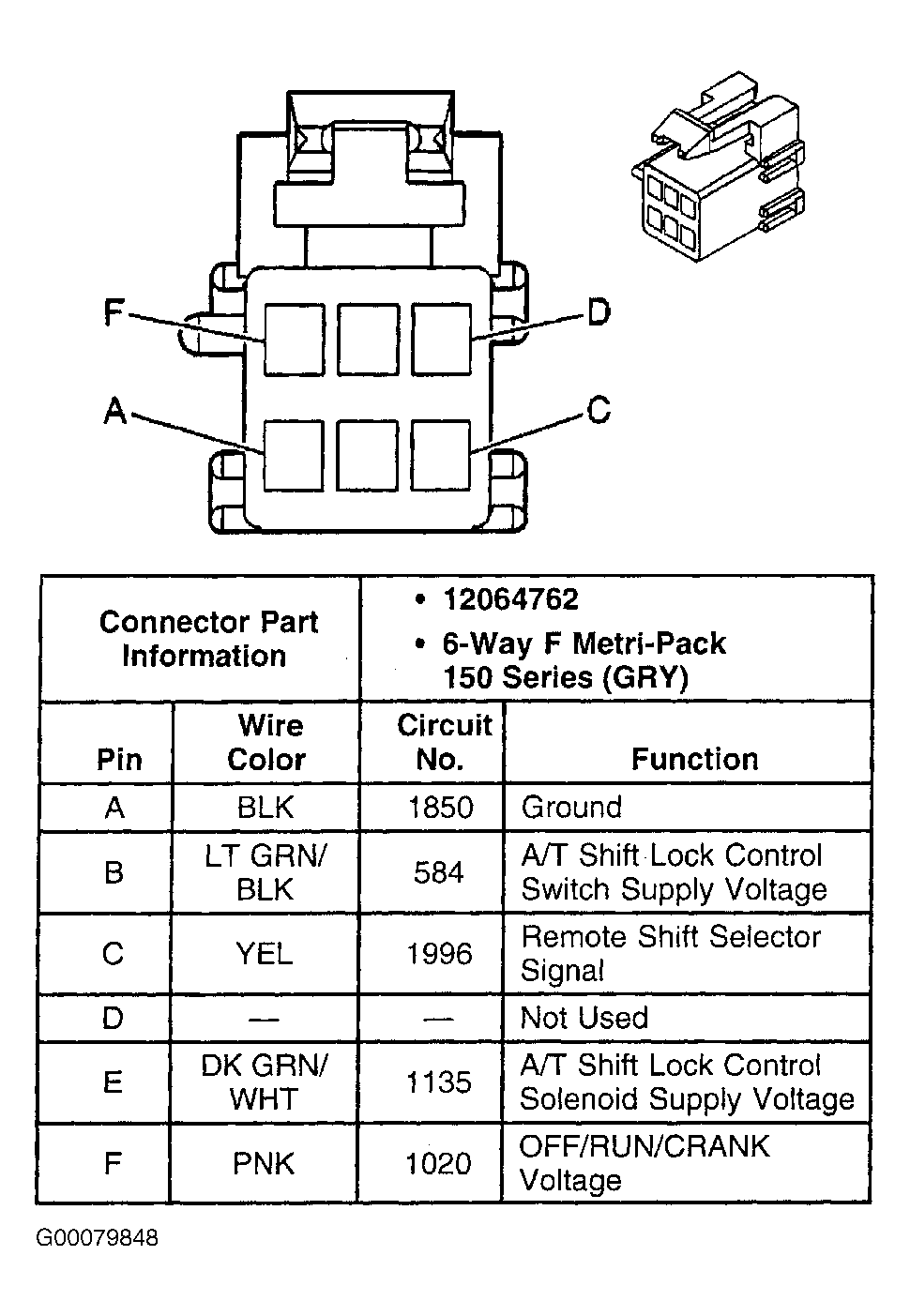

Fig 2: Identifying Shift Lock Solenoid Harness Connector Terminals (Floor Shift)

Courtesy of GENERAL MOTORS CORP.

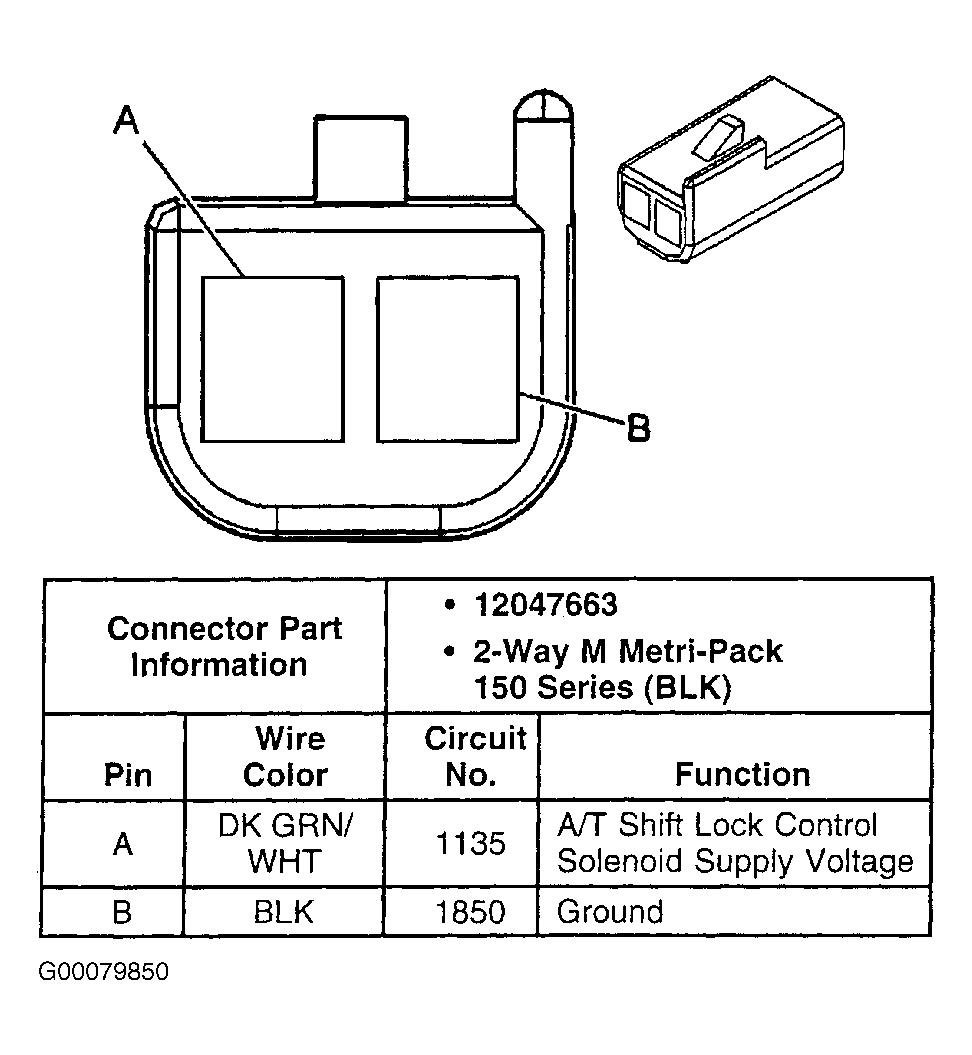

Fig 3: Identifying Park Lock Solenoid Harness Connector Terminals

Courtesy of GENERAL MOTORS CORP.

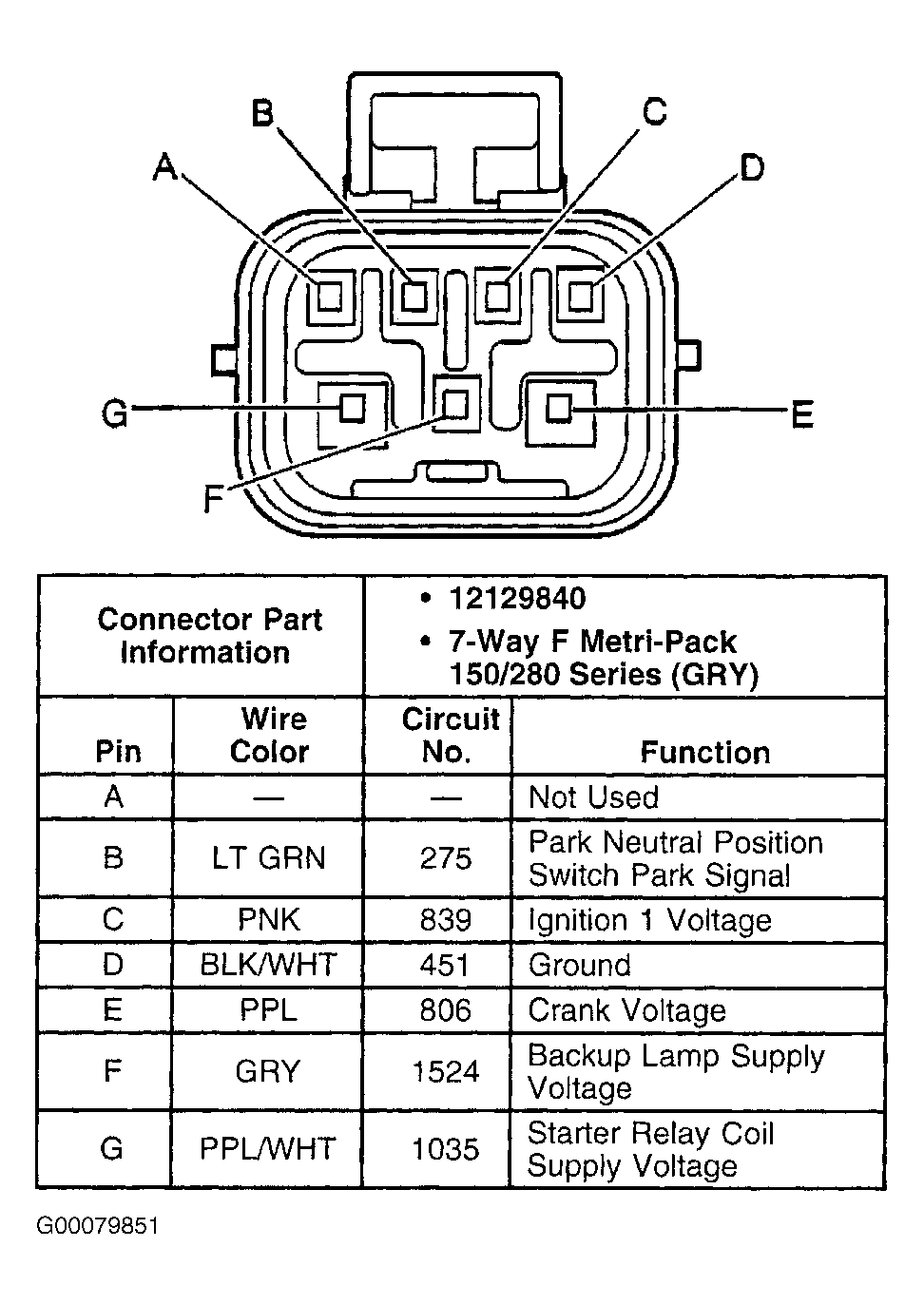

Fig 4: Identifying PNP Harness Connector (C1) Terminals

Courtesy of GENERAL MOTORS CORP.

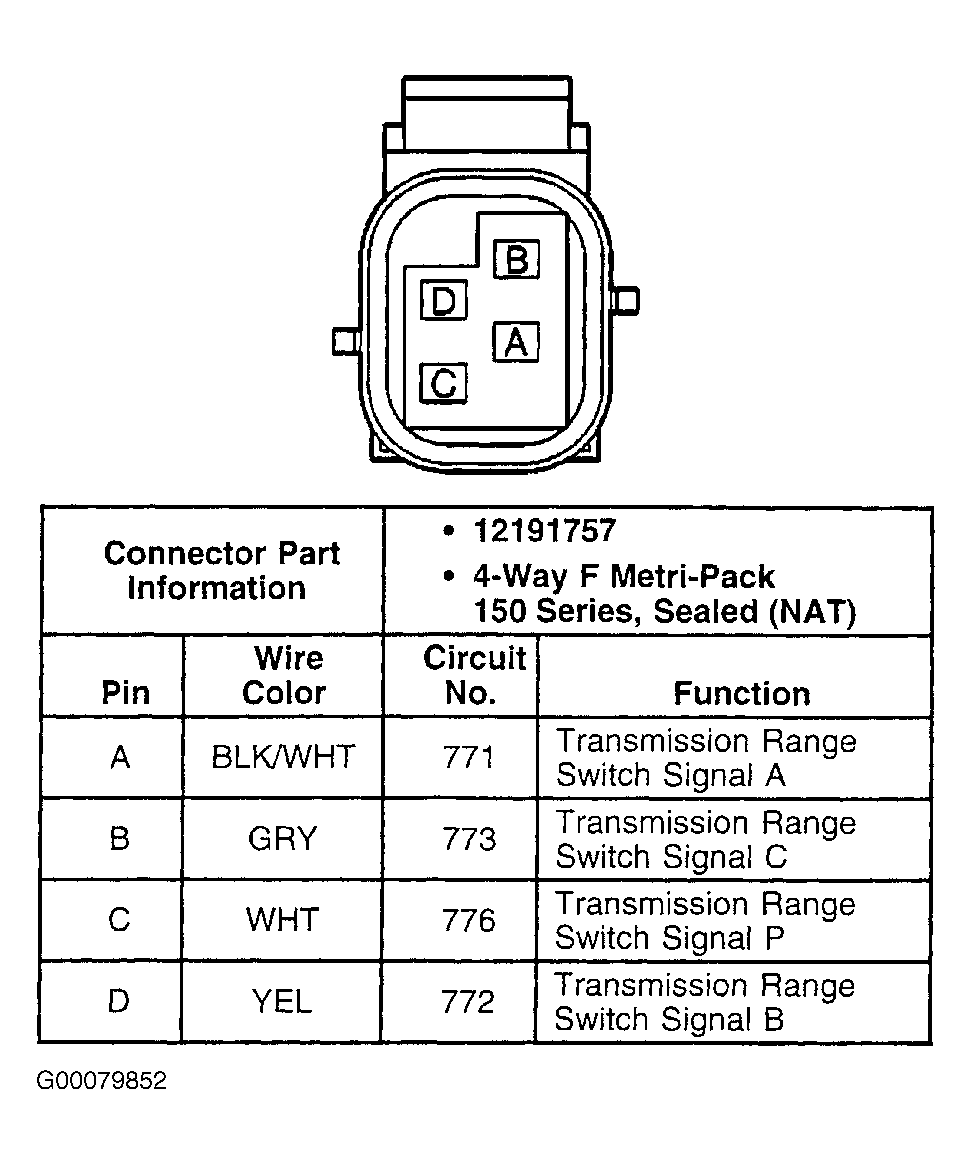

Fig 5: Identifying PNP Harness Connector (C2) Terminals

Courtesy of GENERAL MOTORS CORP.

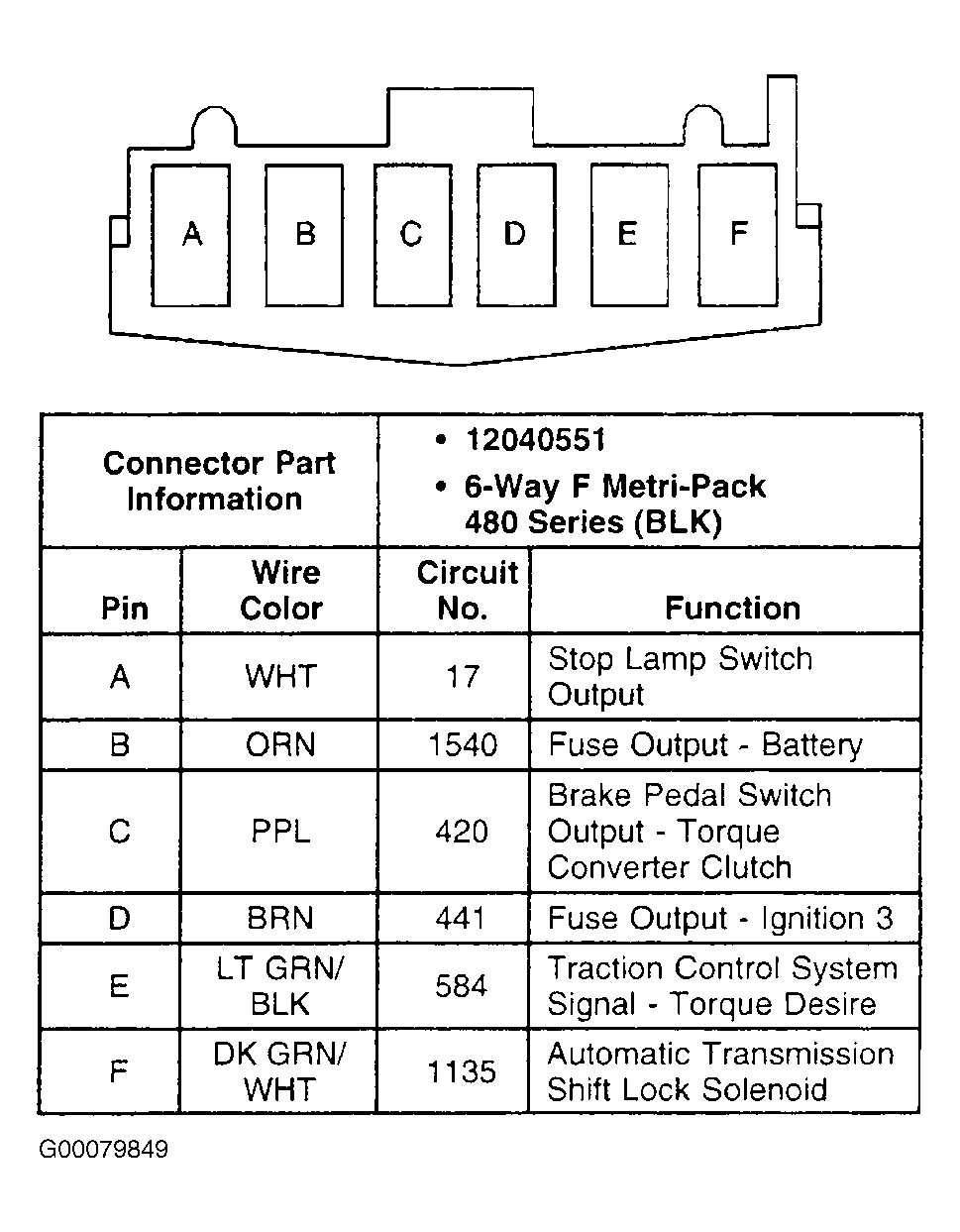

Fig 6: Identifying Stoplamp Switch Harness Connector Terminals

Courtesy of GENERAL MOTORS CORP.
