Front Seat Heater Control Module Replacement

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

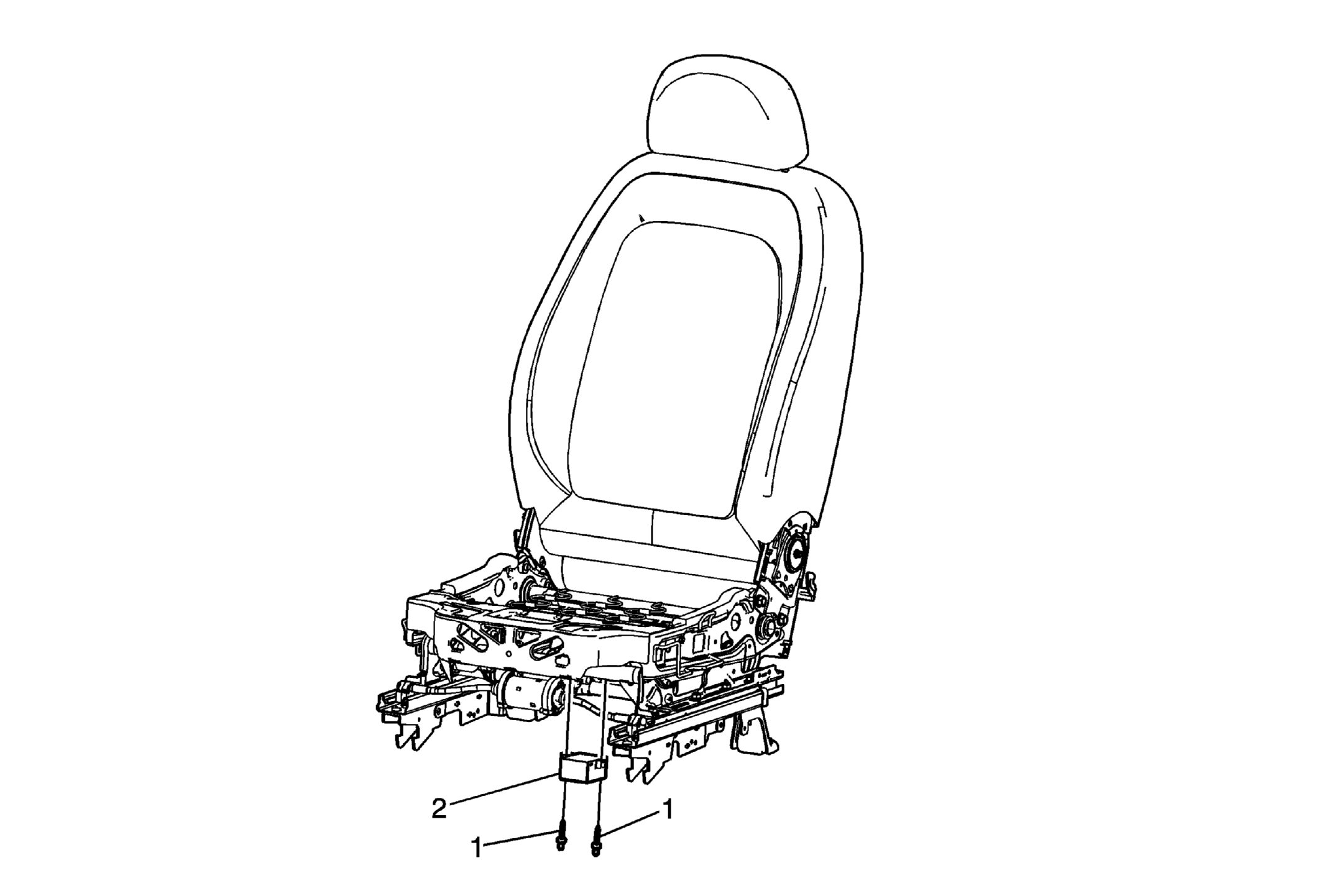

Fig 1: Front Seat Heater Control Module
GM1868511Courtesy of GENERAL MOTORS CORP.
Callout Component Name

Preliminary Procedures

  1. Remove the front seat. Refer to Front Seat Replacement - Bucket .
  2. Remove the front seat cushion cover and pad. Refer to Front Seat Cushion Cover and Pad Replacement (without KA1) or Front Seat Cushion Cover and Pad Replacement (with KA1) .
1 Front Heated Seat Control Module Rivets (Qty: 2)

Procedure

  1. Drill out the head of the rivet to remove the module.
  2. Install new rivets for installation.
2 Front Heated Seat Control Module

Procedure

  1. Disconnect the electrical connector.
  2. Check to make sure the heated seats are functioning properly.
