Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lower the headliner. Refer to HEADLINER REPLACEMENT .
  2. Disconnect the cables from the antenna.
  3. Loosen the retaining nut until the antenna assembly can be pulled from the top of the roof.

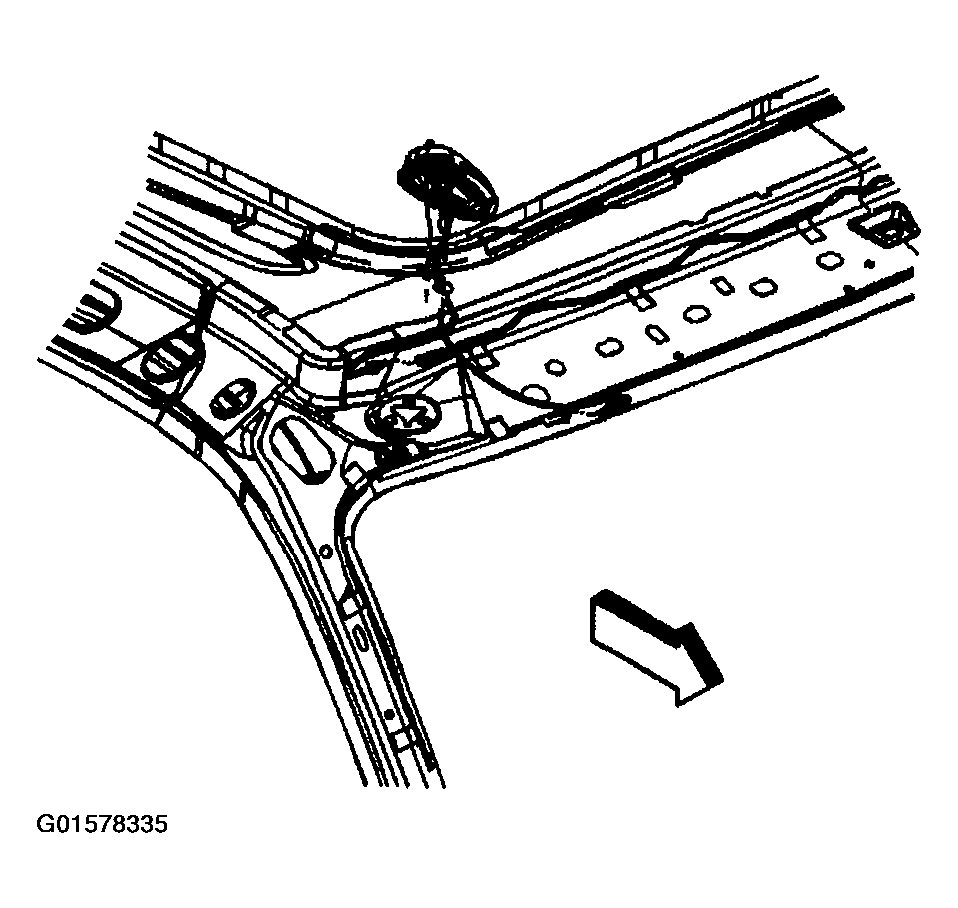

    Fig 1: Cellular & Navigation Antenna Assembly
    G01578335Courtesy of GENERAL MOTORS CORP.
