Test Description

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

The numbers below refer to the step numbers on the diagnostic table.

2. This step checks the conditions of the cellular and navigation antenna.

3. This step tests the condition of the cellular antenna coax and for proper ground of the cellular antenna.

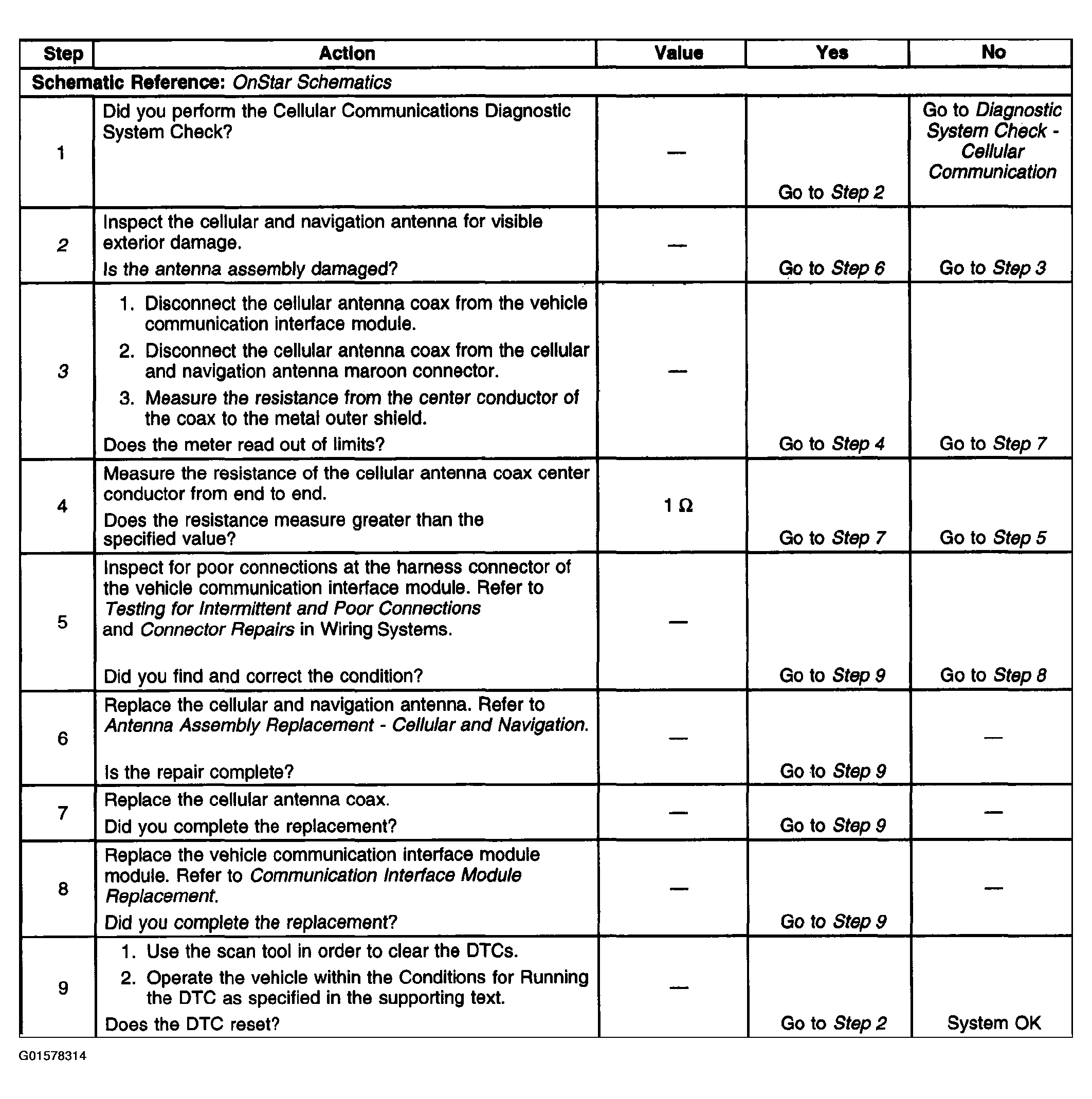

Fig 1: DTC B2470
G01578314Courtesy of GENERAL MOTORS CORP.
