Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the VCIM bracket to the seat bracket.
  2. Slide the VCIM bracket forward until the retaining tabs become locked to the seat bracket.

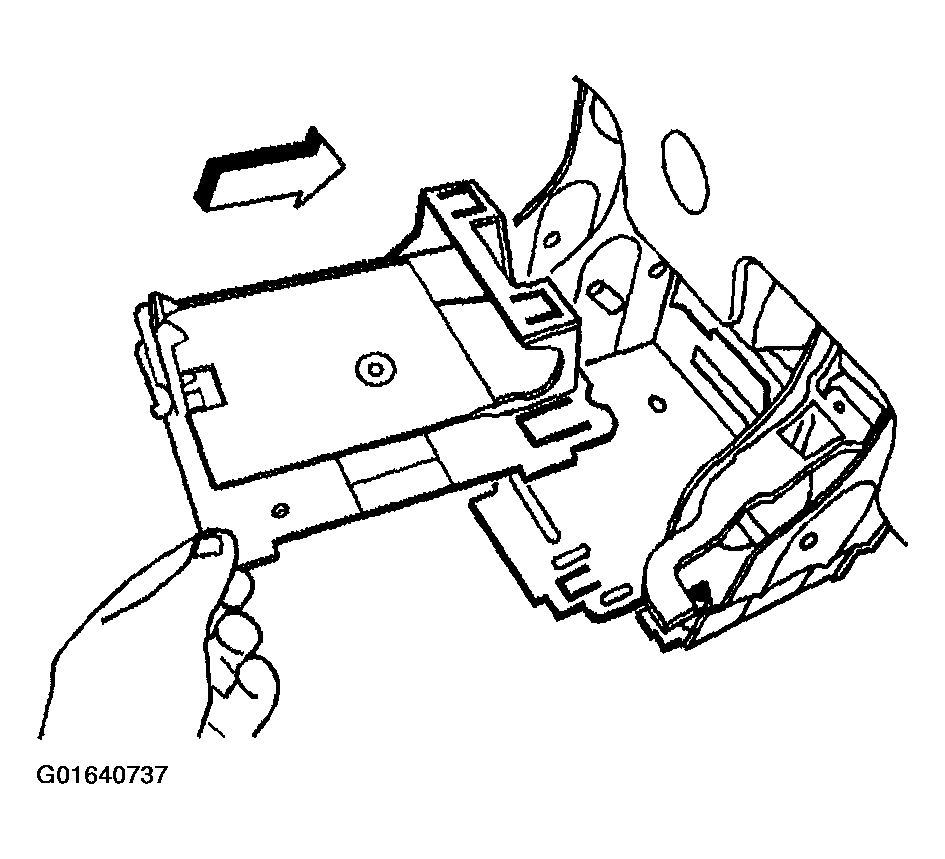

    Fig 1: Positioning VCIM Bracket To Seat Bracket
    G01640737Courtesy of GENERAL MOTORS CORP.
  3. Ensure the retaining tab (1) on the VCIM bracket is properly seated.
  4. Install the communication interface module. Refer to COMMUNICATION INTERFACE MODULE REPLACEMENT (TRAILBLAZER, ENVOY, BRAVADA)   or COMMUNICATION INTERFACE MODULE REPLACEMENT (TRAILBLAZER EXT, ENVOY XL)   in Interior Trim.
  5. Position the right second row seat to a passenger position.

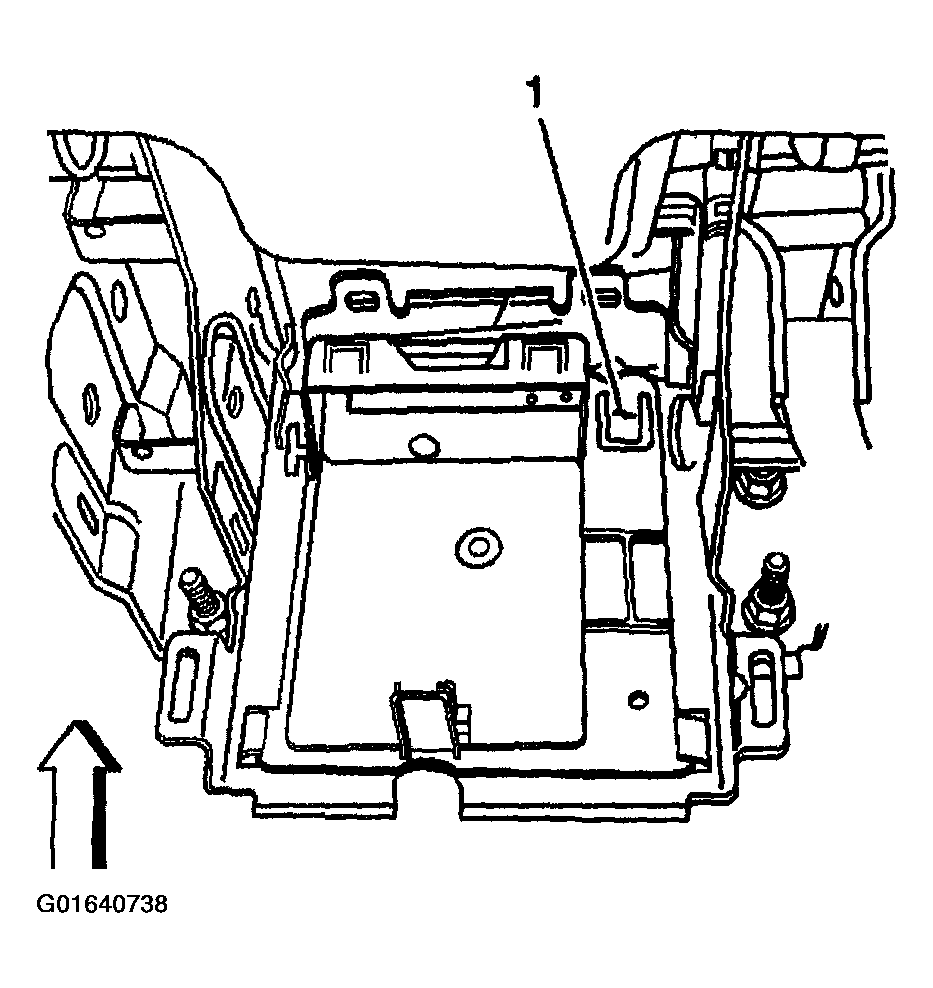

    Fig 2: Identifying Retaining Tab Seated Position
    G01640738Courtesy of GENERAL MOTORS CORP.
