Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the dome lamp lens by inserting a flat-bladed tool to the back edge and pushing downward to release the tab.

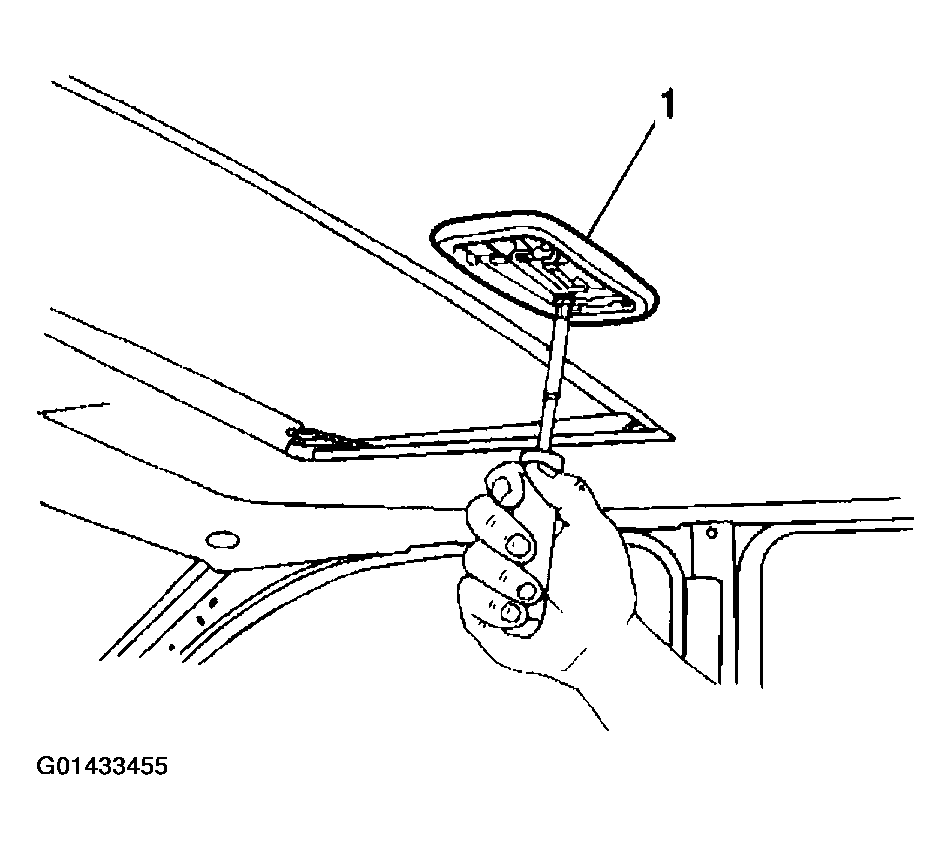

    Fig 1: Removing Dome & Reading Lamp Lens
    G01433455Courtesy of GENERAL MOTORS CORP.
  2. Remove the bulb from the dome lamp.

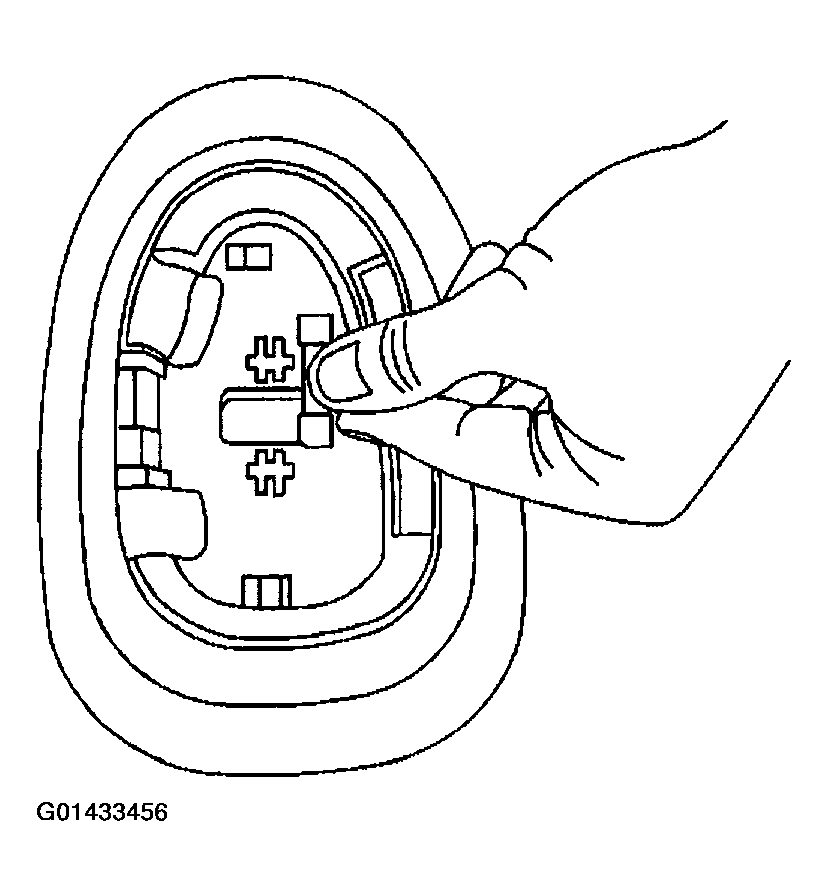

    Fig 2: Removing Dome & Reading Lamp Bulb
    G01433456Courtesy of GENERAL MOTORS CORP.
