Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the bulb (3) to the dome lamp (2), if removed.
  2. Connect the dome lamp electrical connector (1).

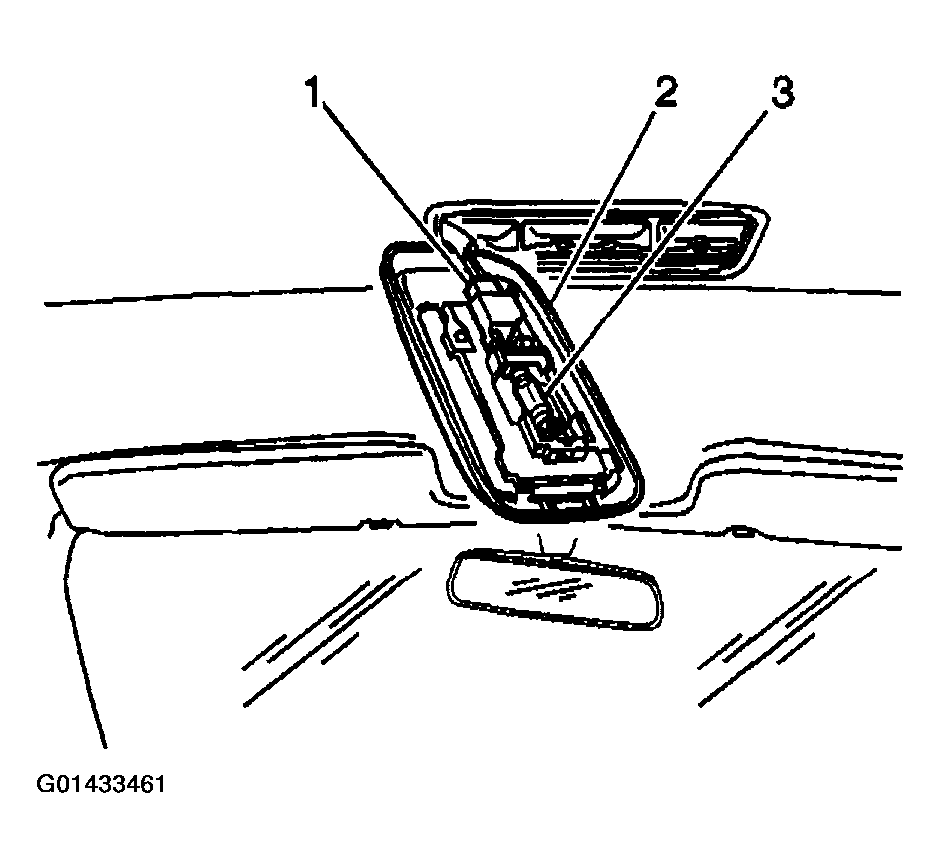

    Fig 1: Installing Dome Lamp Connector & Bulb
    G01433461Courtesy of GENERAL MOTORS CORP.
  3. Install the dome lamp (1) to the roof.
  4. Install the dome lamp lens.
    Fig 2: Installing Dome Lamp Lens
    G01433462Courtesy of GENERAL MOTORS CORP.
