Charging System Test

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

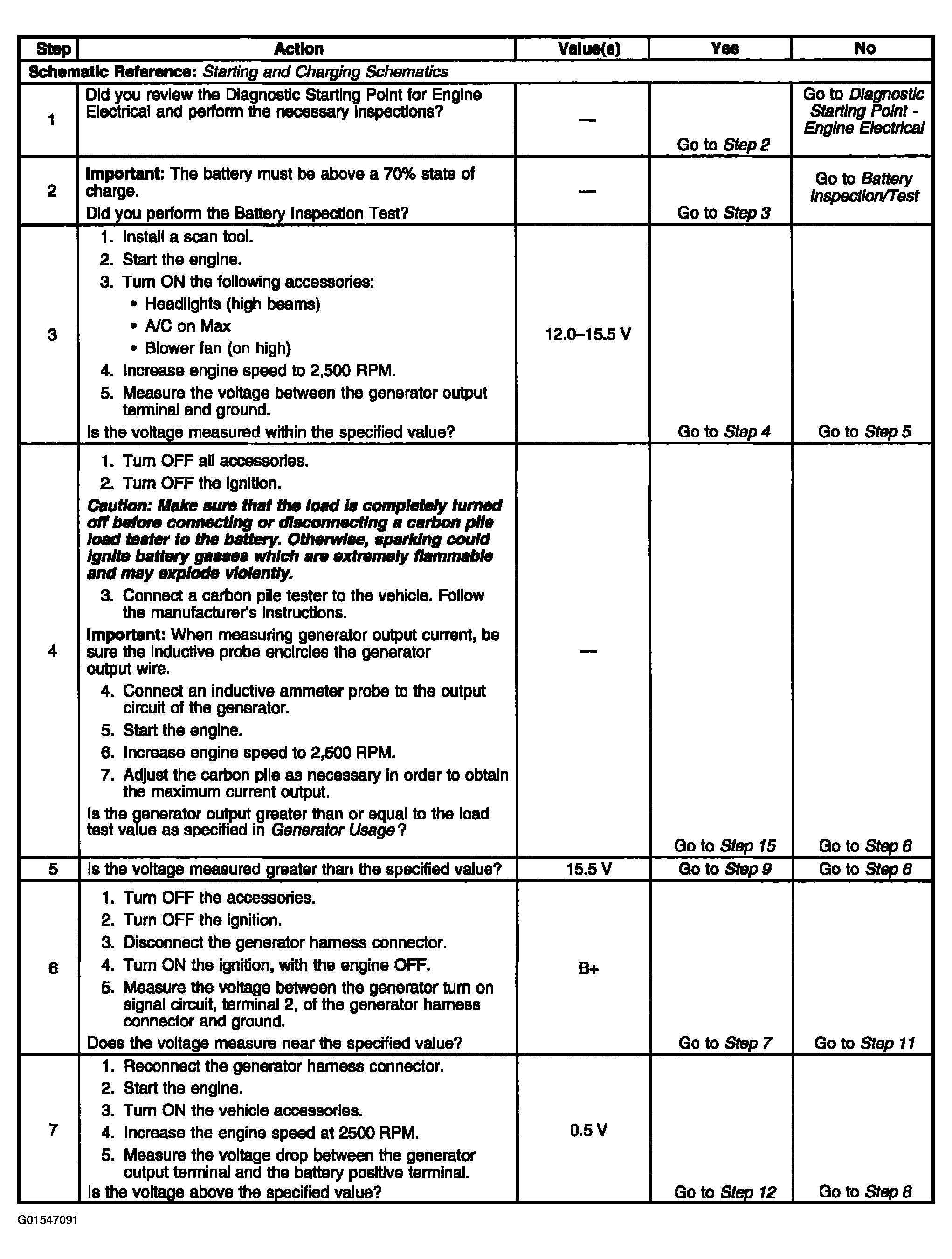

Fig 1: Charging System Test (Steps 1-7)

Courtesy of GENERAL MOTORS CORP.

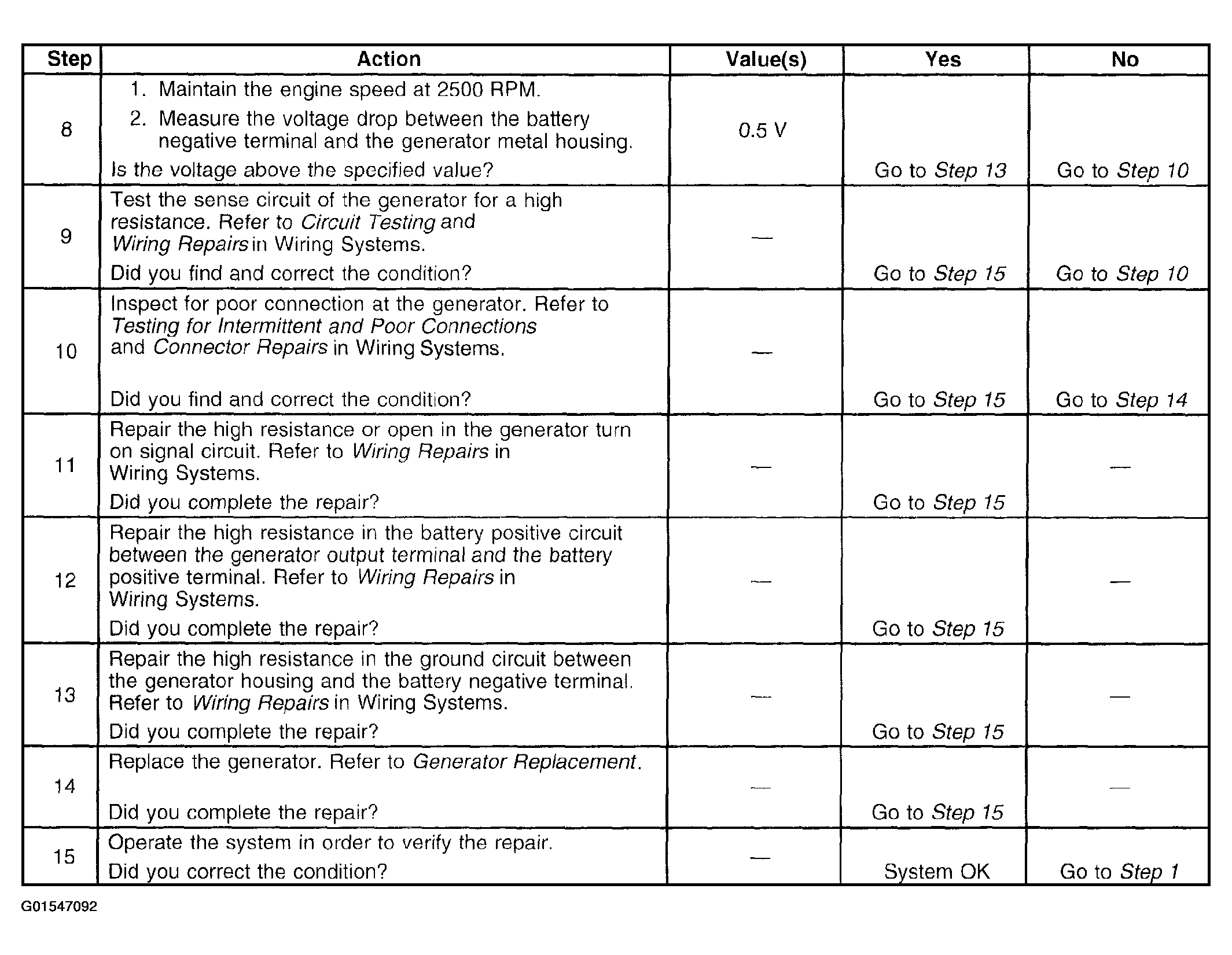

Fig 2: Charging System Test (Steps 8-15)

Courtesy of GENERAL MOTORS CORP.
