Automatic Level Control Suspension Component Views

WARNING: This page is about a different car, the 2004 Pontiac Aztek and 2004 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

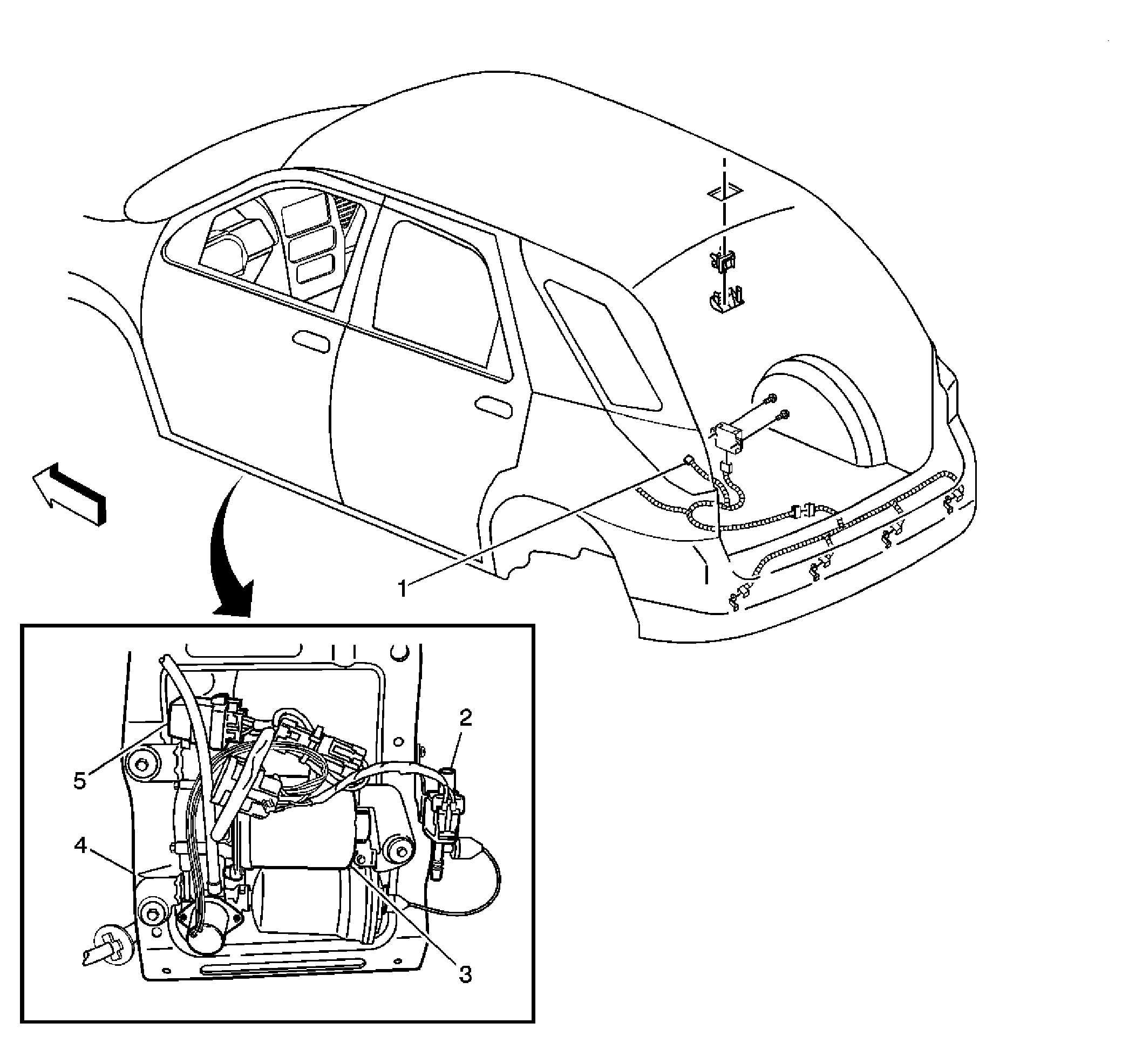

Fig 1: Relay, Switch, Solenoid and Compressor Assembly Component View
GM1232745Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Inflator Air Switch
2 Inflator Soleniod
3 Automatic Level Control (ALC) Compressor
4 Exhaust Solenoid
5 Automatic Level Control (ALC) Compressor Relay

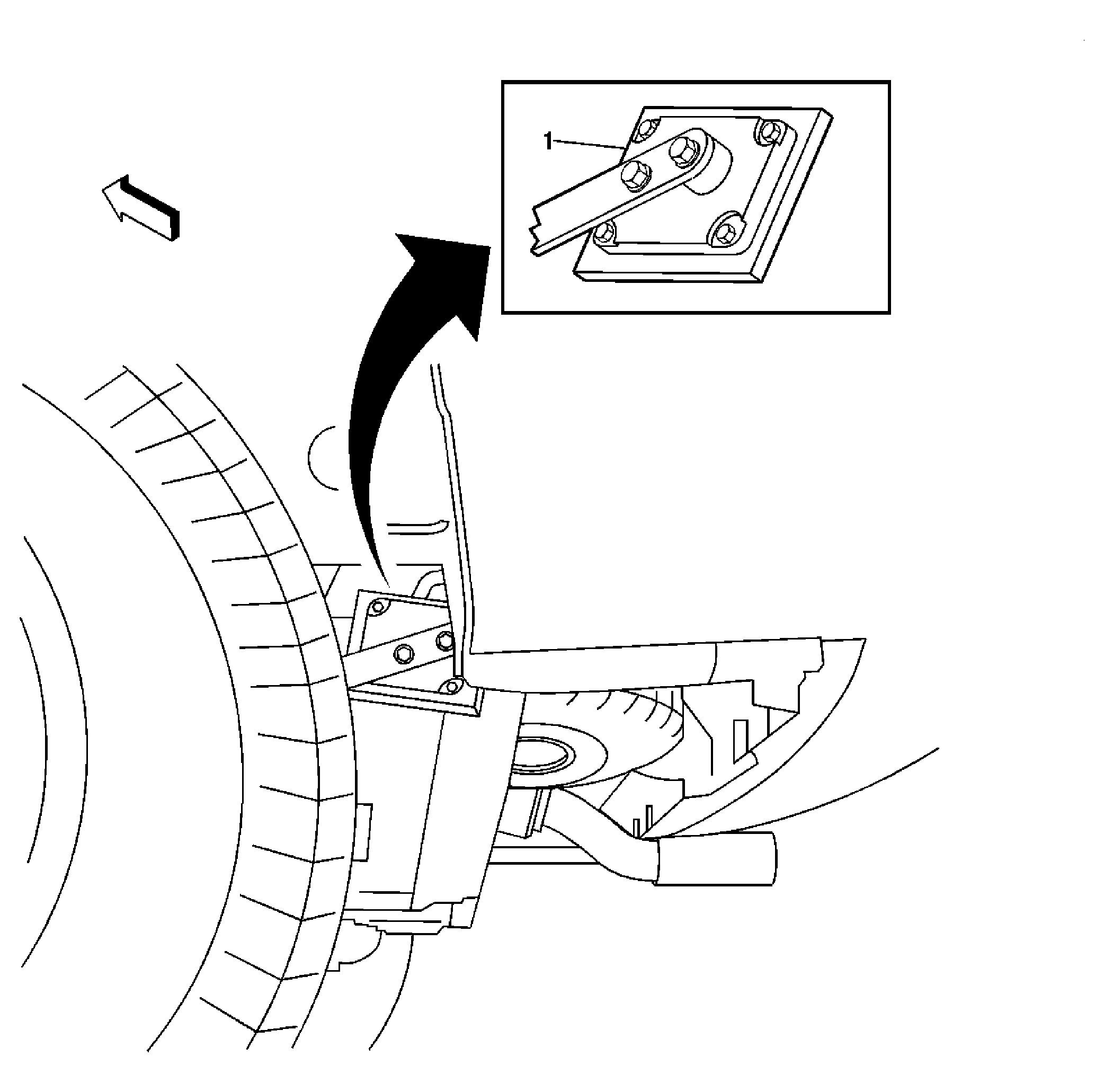

Fig 2: Automatic Level Control (ALC) Sensor Component View
GM772910Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Auto Level Control (ALC) Sensor
