Theft Deterrent System Component Views
WARNING: This page is about a different car, the 2004 Pontiac Aztek and 2004 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

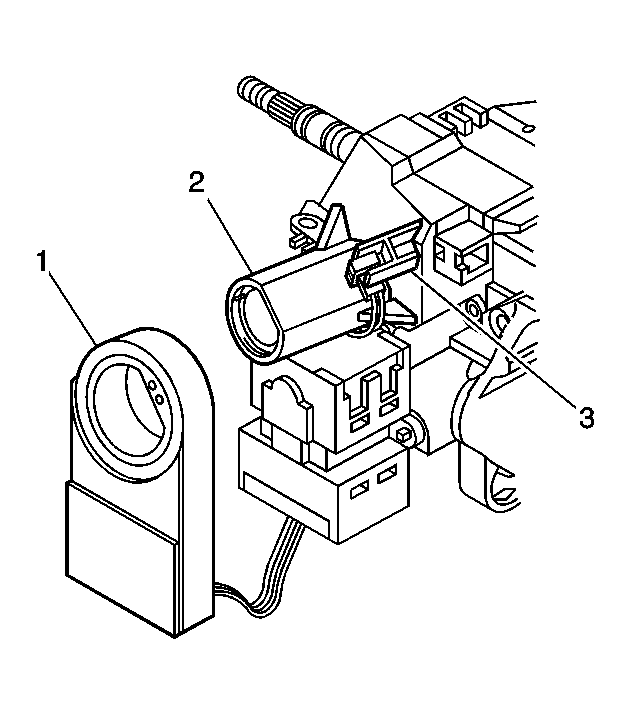

Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Theft Deterrent Control Module |
| 2 |
Ignition Key Housing |
| 3 |
Key Warning Switch |

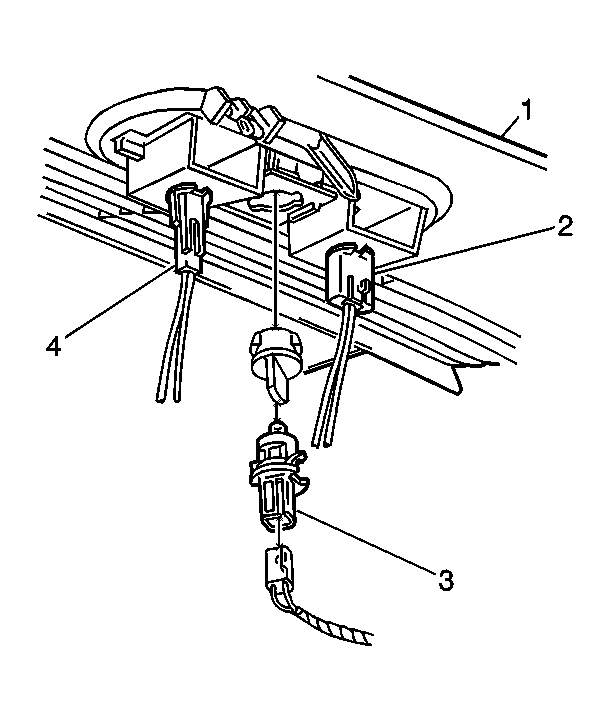

Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
I/P Trim Panel |
| 2 |
Daytime Running Lamps (DRL) Ambient Light Sensor Connector |
| 3 |
Sunload Sensor Connector |
| 4 |
Theft LED Connector |
