Power Outlet Component Views
WARNING: This page is about a different car, the 2004 Pontiac Aztek and 2004 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Instrument Cluster |
| 2 |
Driver's Information/HUD Switches |
| 3 |
A/C Sunload Sensor (CJ2)/Ambient Light Sensor (CJ3/C60) |
| 4 |
Security Indicator Lamp |
| 5 |
Inflatable Restraint I/P Module |
| 6 |
HVAC Control Module |
| 7 |
Fuse Block-Center Console |
| 8 |
Cigar Lighter |
| 9 |
Auxiliary Power Outlet-Center Console Lower (2002 and earlier) |
| 10 |
Auxiliary Power Outlet-Center Console Upper |
| 11 |
Radio |
| 12 |
Ignition Switch |
| 13 |
Turn Signal, Wiper, Washer, Cruise and High Beam Switch |
Courtesy of GENERAL MOTORS CORP.

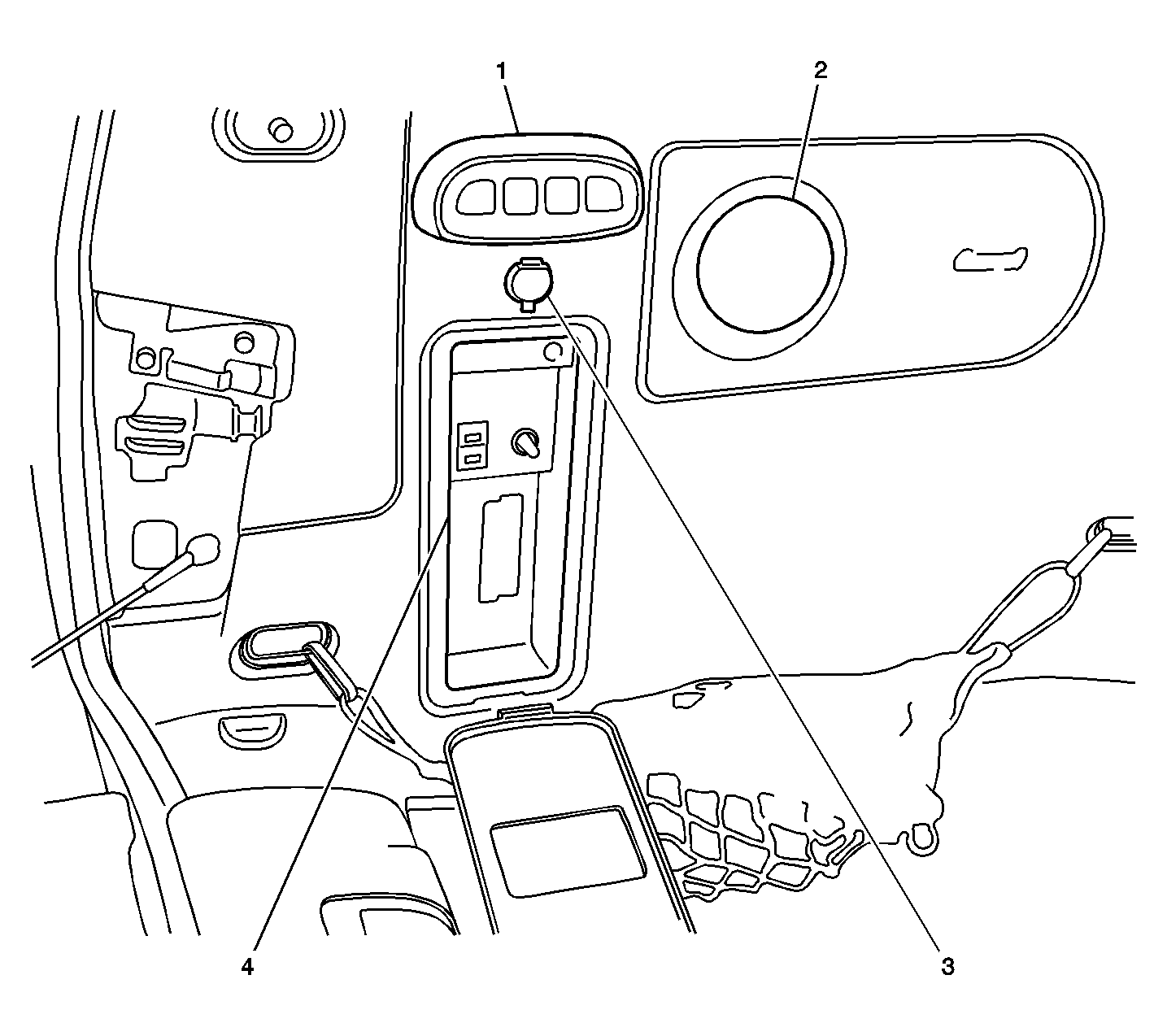

| Callout |
Component Name |
| 1 |
Tailgate Audio Controls |
| 2 |
Subwoofer |
| 3 |
Aux Outlet-Rear |
| 4 |
Auto Level Control (ALC) Inflator Air Switch |
