SIR Component Views
WARNING: This page is about a different car, the 2004 Pontiac Aztek and 2004 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

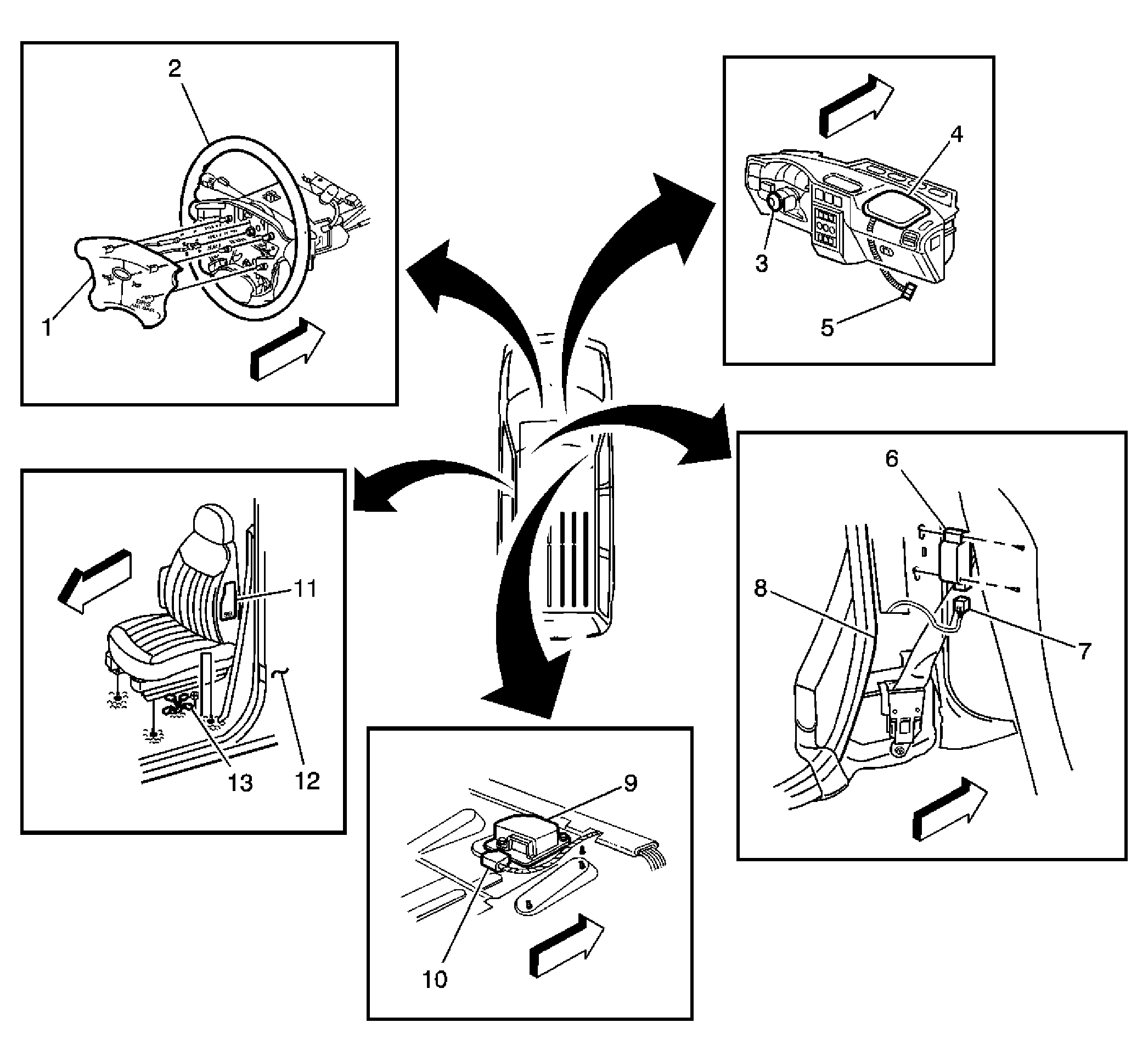

| Callout | Component Name |
|---|---|
| 1 | Inflatable Restraint Steering Wheel Module |
| 2 | Steering Wheel |
| 3 | Steering Column |
| 4 | Inflatable Restraint IP Module |
| 5 | Inflatable Restraint IP Module Connector |
| 6 | Inflatable Restraint Side Impact Sensor - LH (RH Similar) |
| 7 | Inflatable Restraint Side Impact Sensor - LH Connector (RH Similar) |
| 8 | LH "B" Pillar |
| 9 | Inflatable Restraint Sensing and Diagnostic Module (SDM) |
| 10 | SDM Wiring Harness Connector - RH (LH Similar) |
| 11 | Inflatable Restraint Side Impact Module - LH (RH Similar) |
| 12 | Seat Belt Retractor Pretensioner (inside B-Pillar) - LH (RH Similar) |
| 13 | Inflatable Restraint Side Impact Module - LH Connector (RH Similar) |

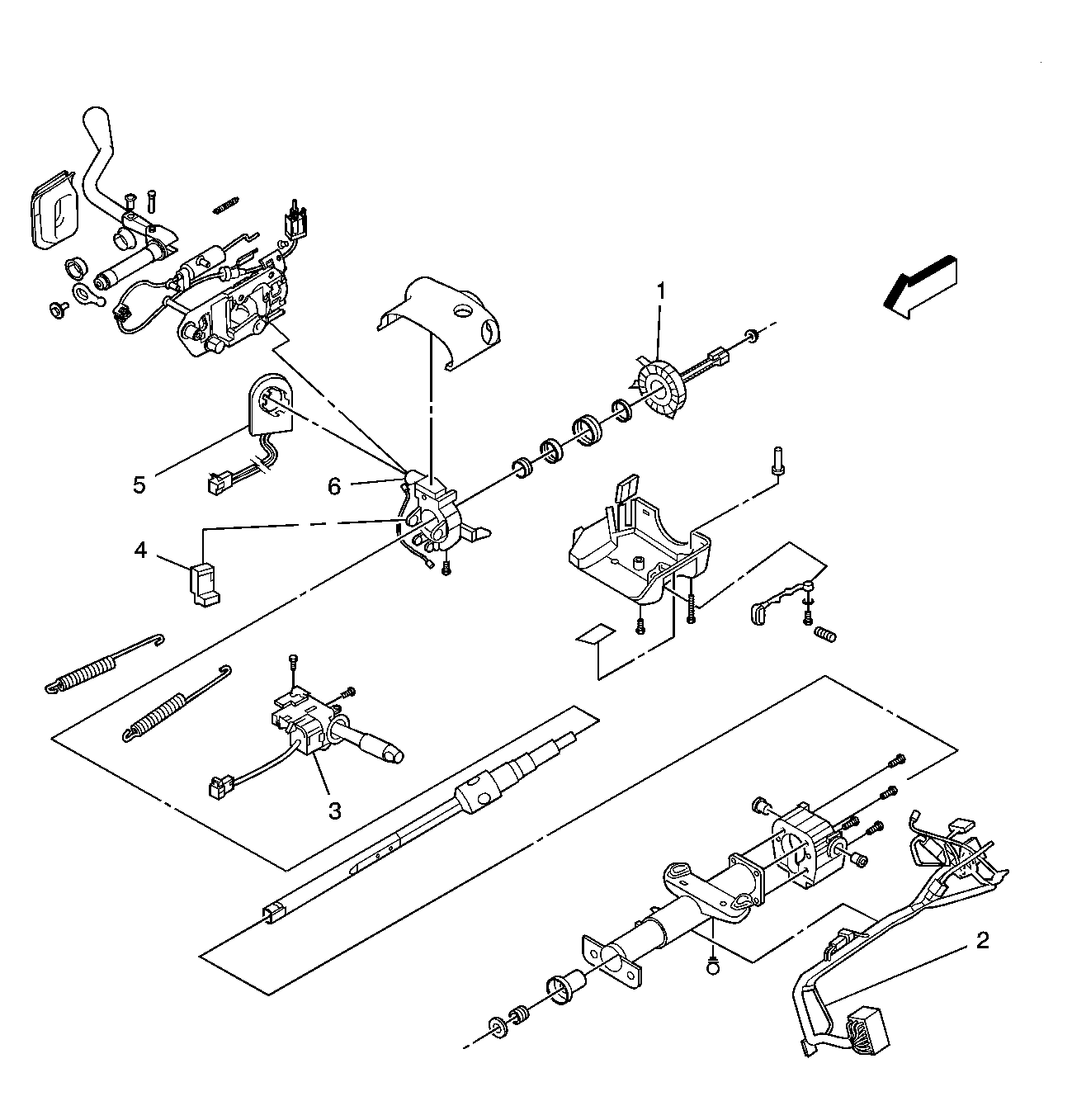

| Callout | Component Name |
|---|---|
| 1 | Inflatable Restraint Steering Wheel Coil |
| 2 | Wire Harness Assembly |
| 3 | Multifunction Switch |
| 4 | Ignition Switch |
| 5 | Theft Deterrent Module |
| 6 | Ignition Key Alarm |

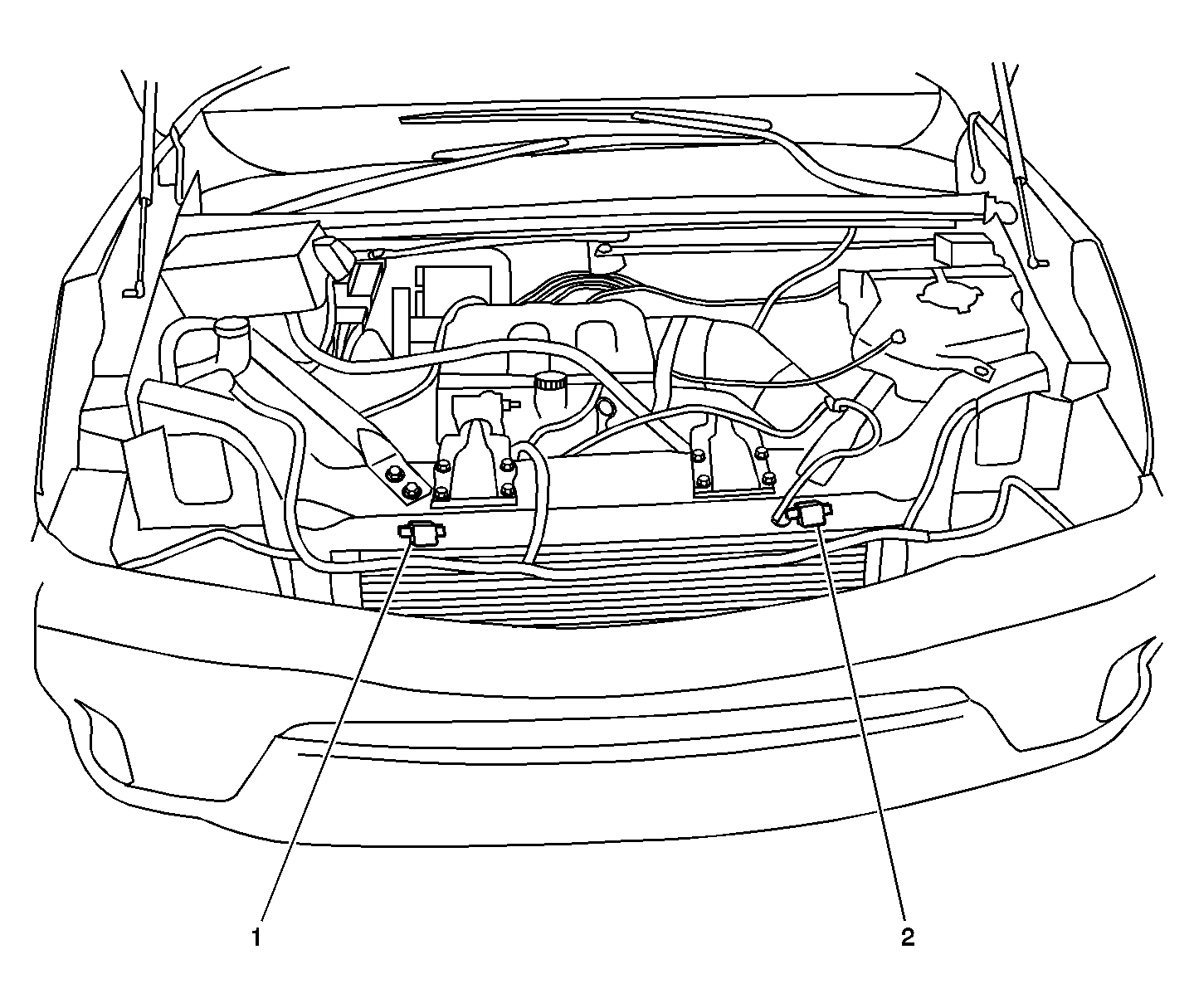

| Callout | Component Name |
|---|---|
| 1 | Inflatable Restraint Forward Discriminating Sensor-Right |
| 2 | Inflatable Restraint Forward Discriminating Sensor-Left |
