Radio/Audio System Schematics

WARNING: This page is about a different car, the 2004 Pontiac Aztek and 2004 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

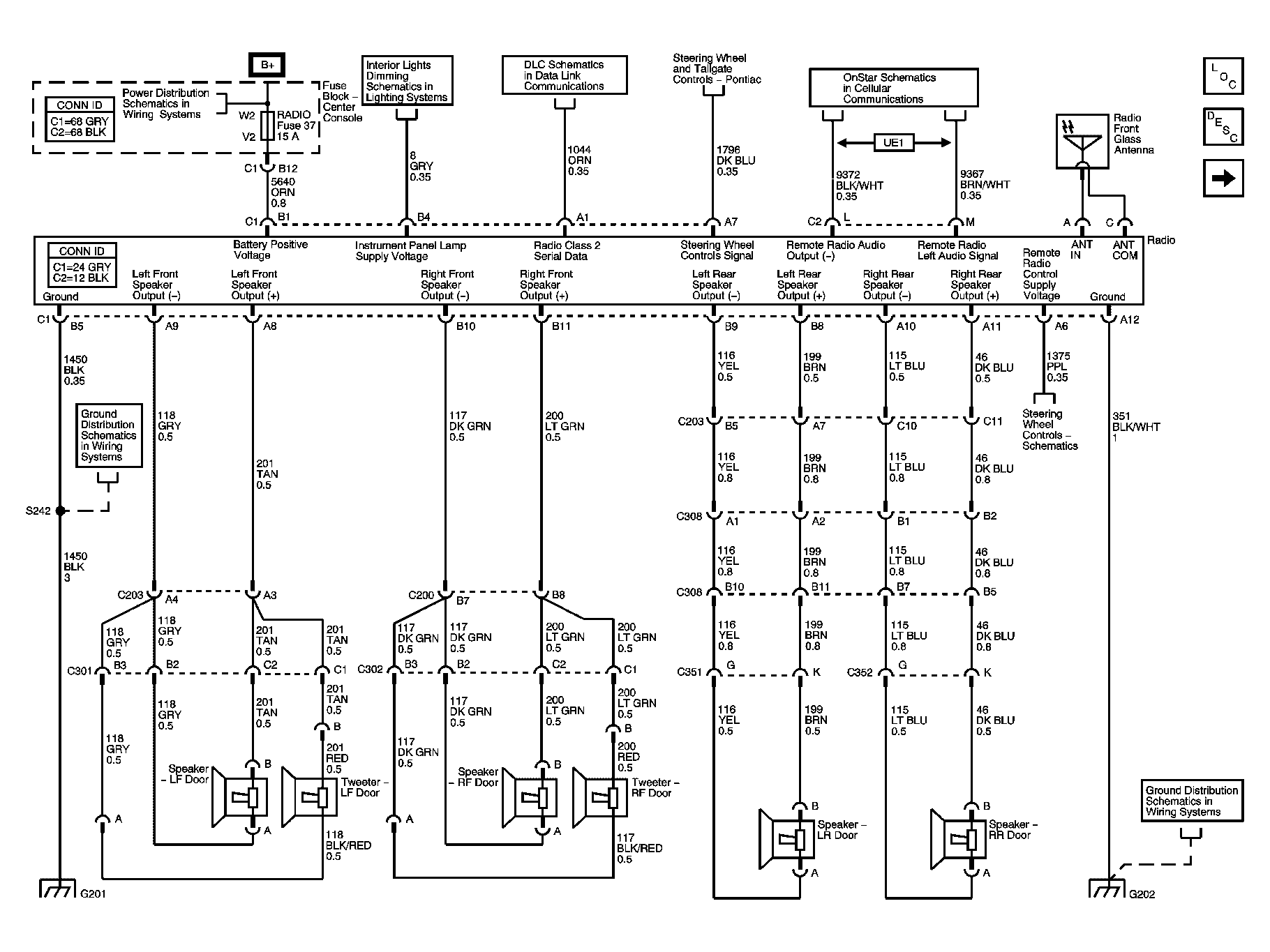

Fig 1: Radio System (U96) Schematic - Pontiac

Courtesy of GENERAL MOTORS CORP.

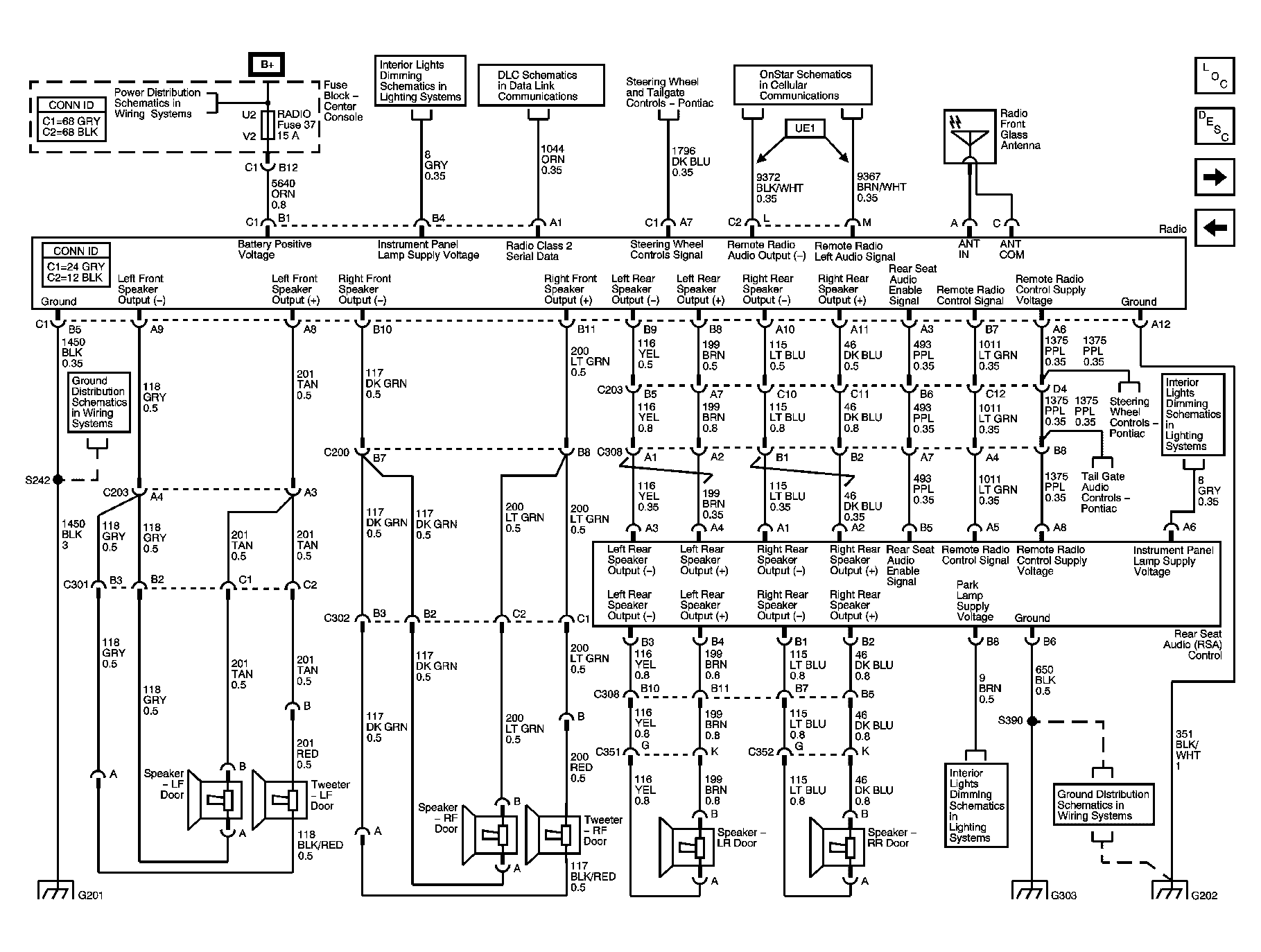

Fig 2: Radio W/Rear Seat Audio Controls (U96 W/U32) Schematic - Pontiac

Courtesy of GENERAL MOTORS CORP.

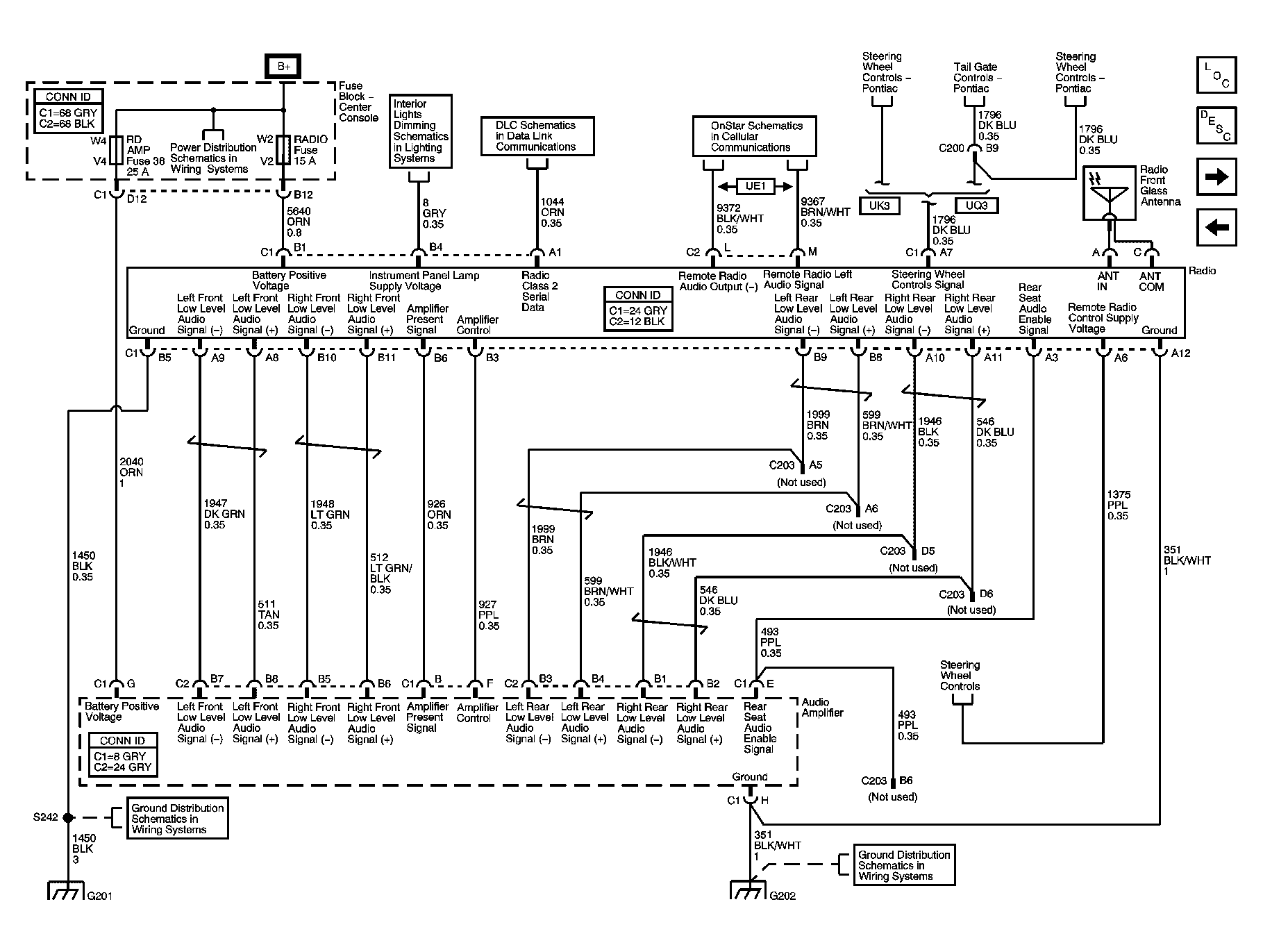

Fig 3: Uplevel Radio W/O Rear Seat Audio Controls (UQ3) Schematic - Pontiac

Courtesy of GENERAL MOTORS CORP.

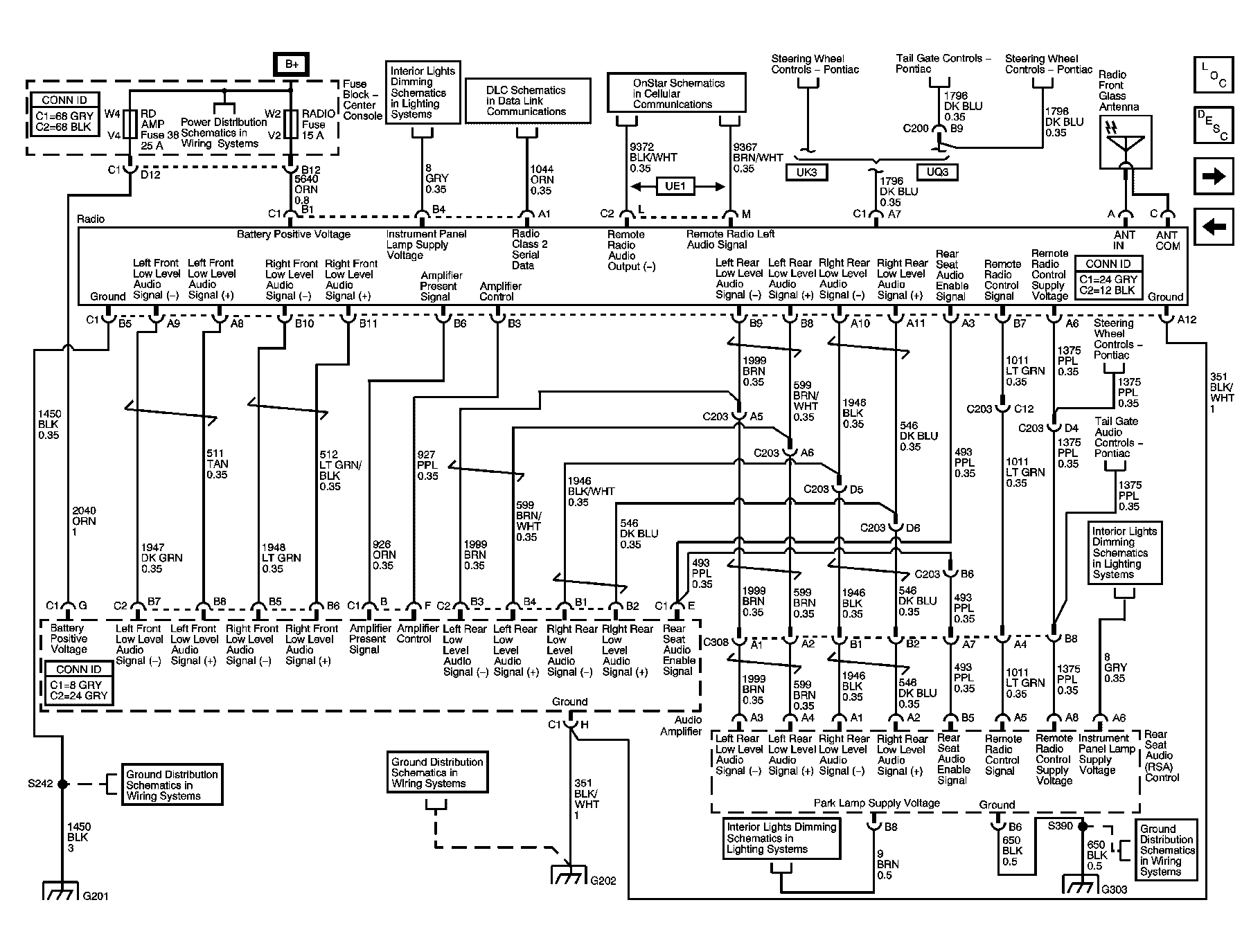

Fig 4: Uplevel Radio W/Rear Seat Audio Controls (UQ3 W/U32) Schematic - Pontiac

Courtesy of GENERAL MOTORS CORP.

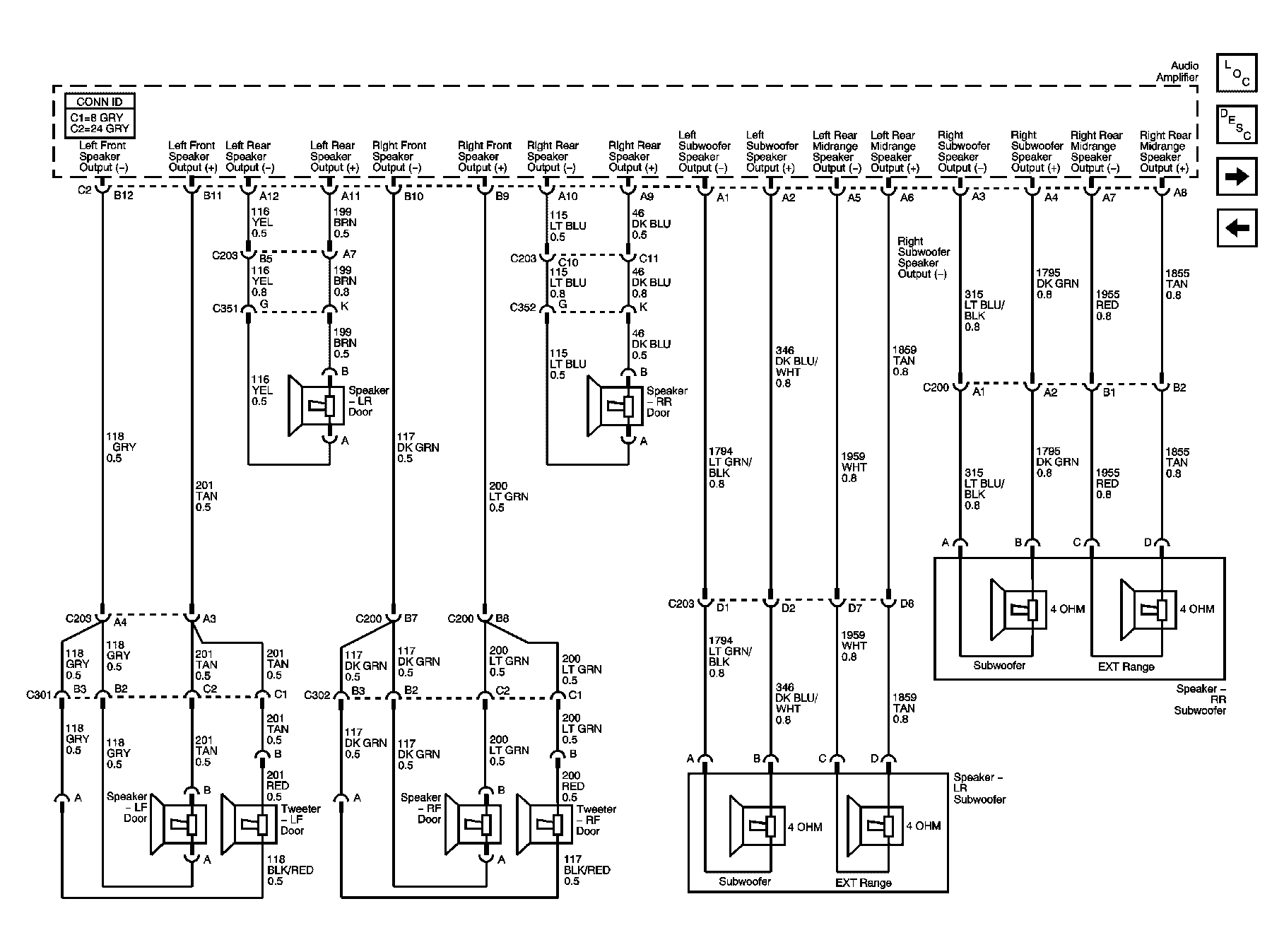

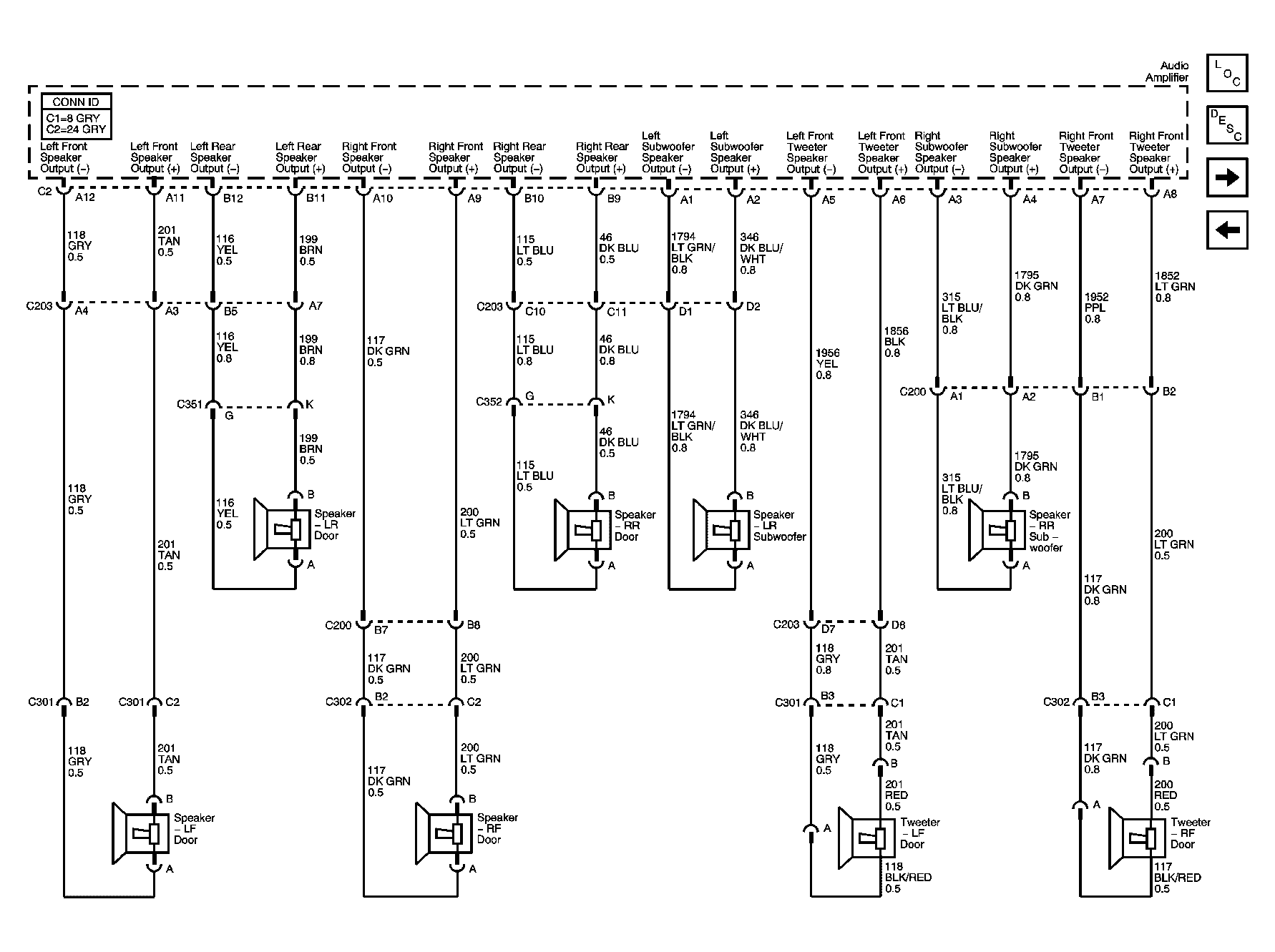

Fig 5: Radio Speakers (UQ3) Schematic - Pontiac

Courtesy of GENERAL MOTORS CORP.

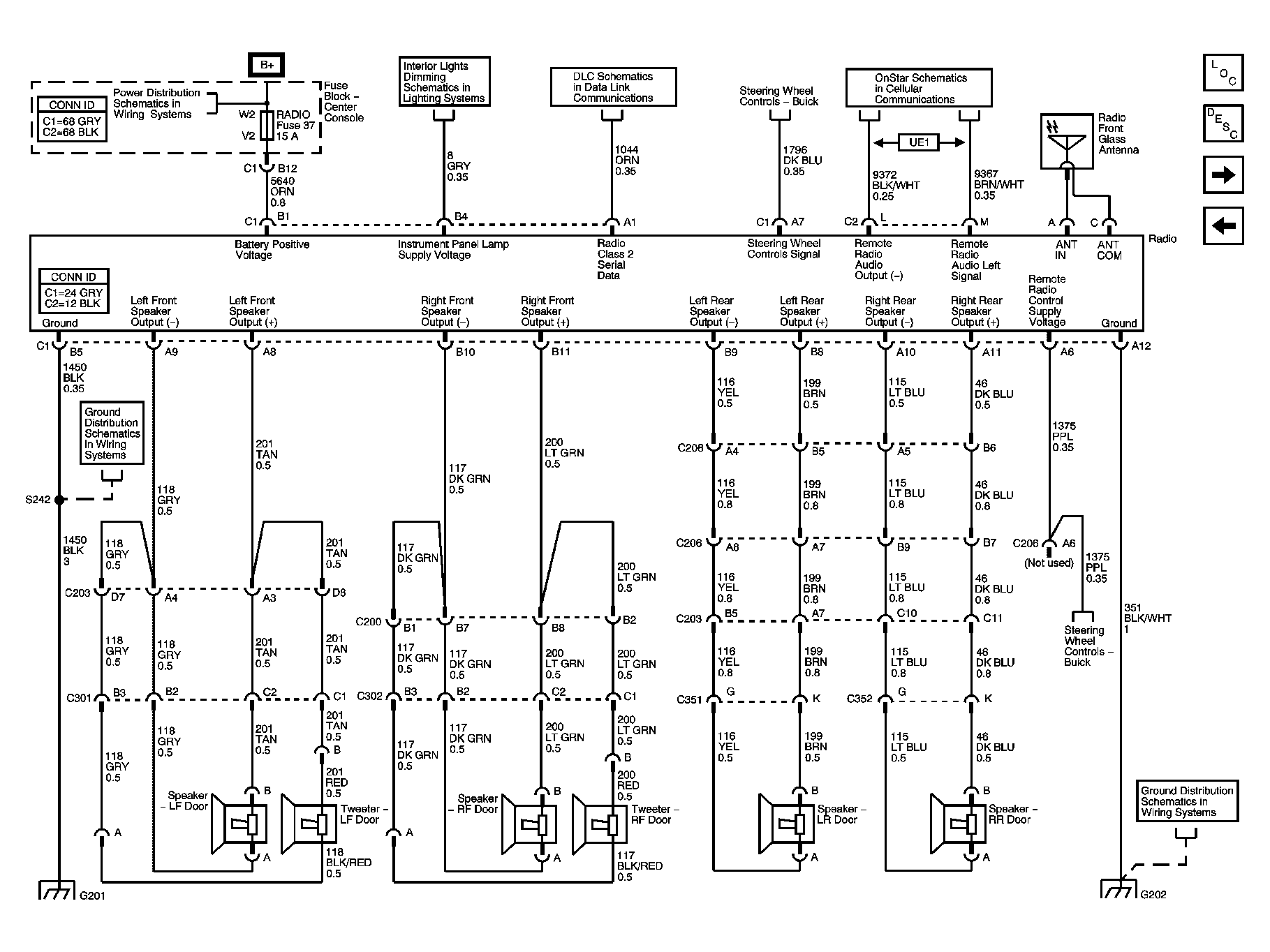

Fig 6: Radio System (U96) Schematic - Buick

Courtesy of GENERAL MOTORS CORP.

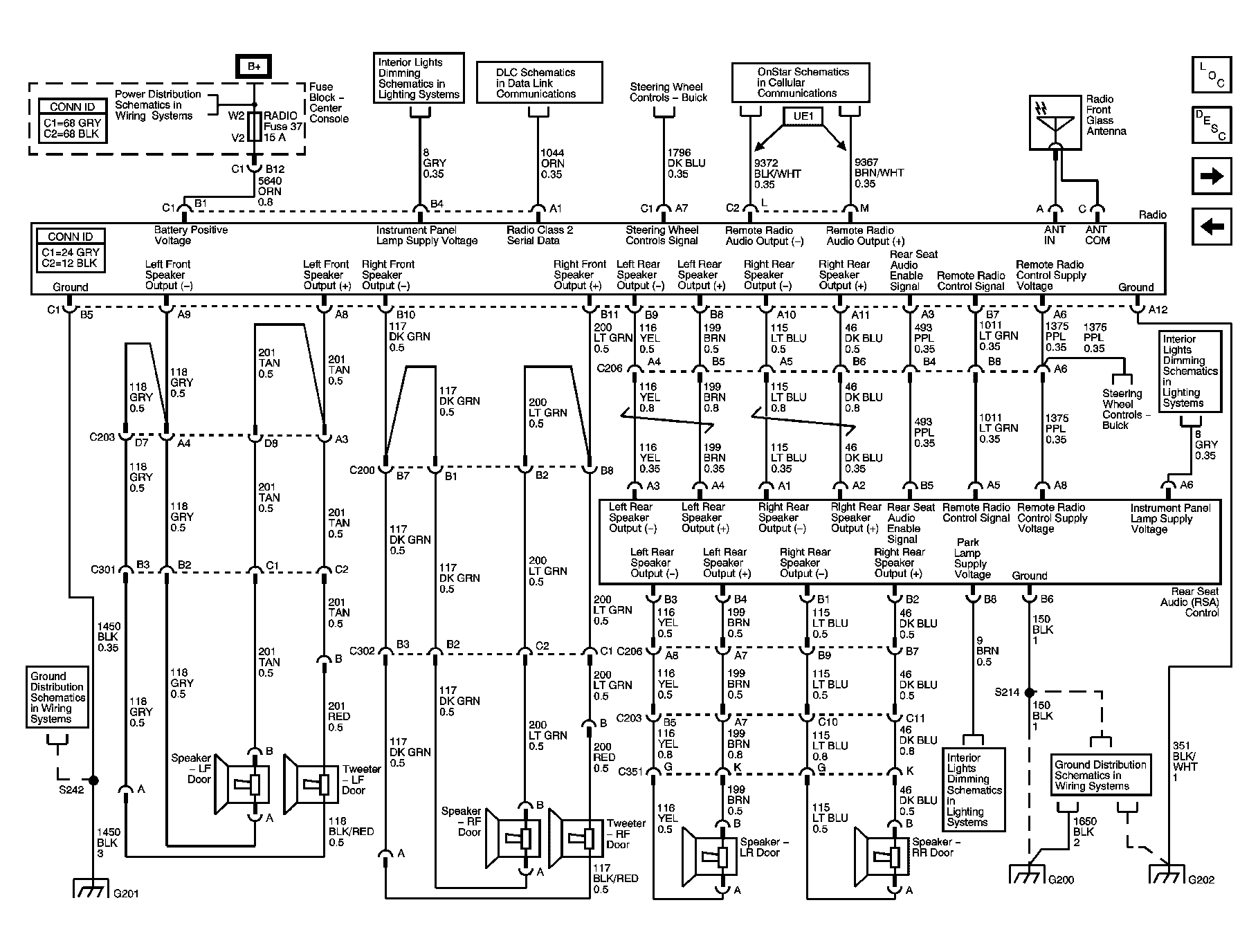

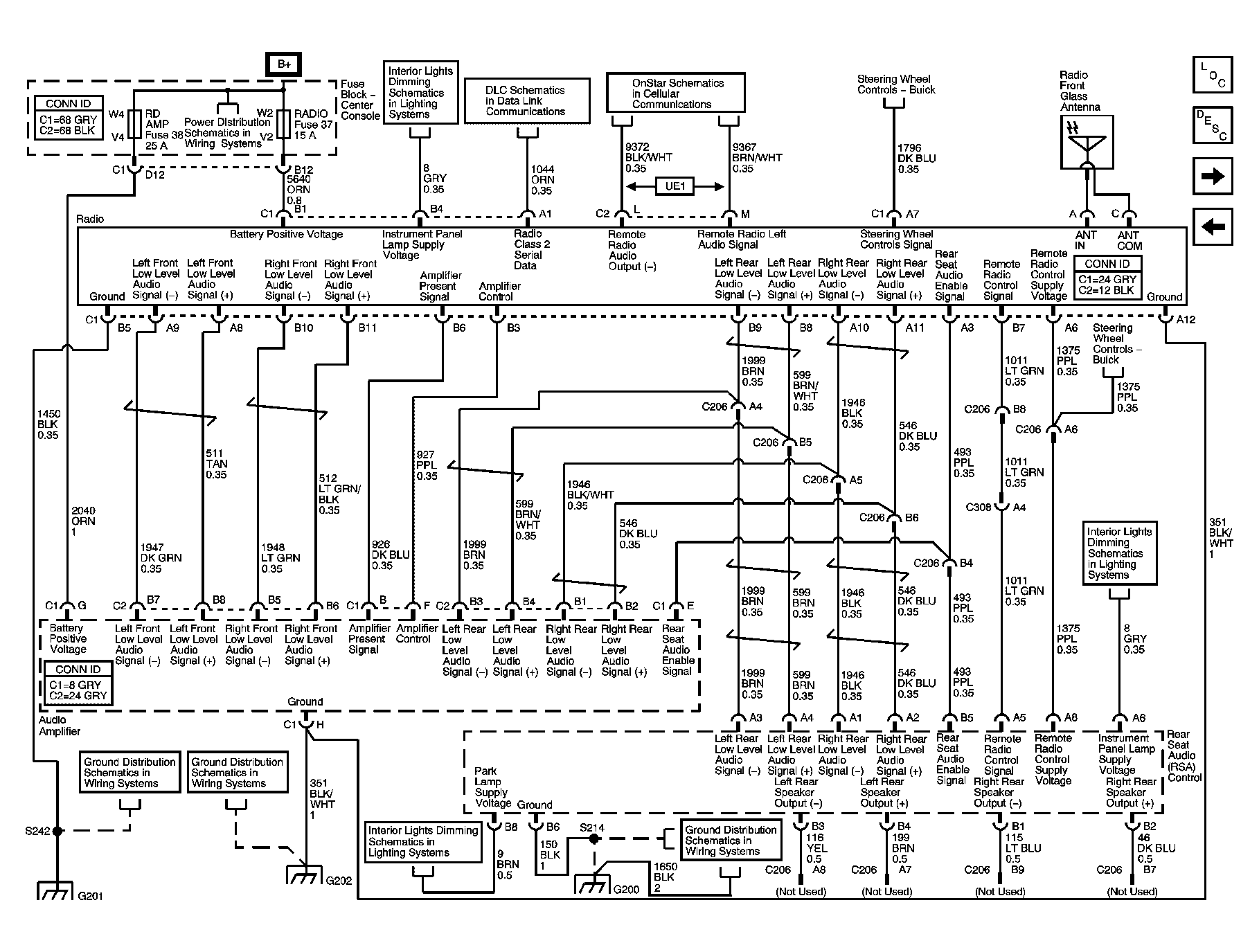

Fig 7: Radio W/Rear Seat Audio Controls (U96 W/U32) Schematic - Buick

Courtesy of GENERAL MOTORS CORP.

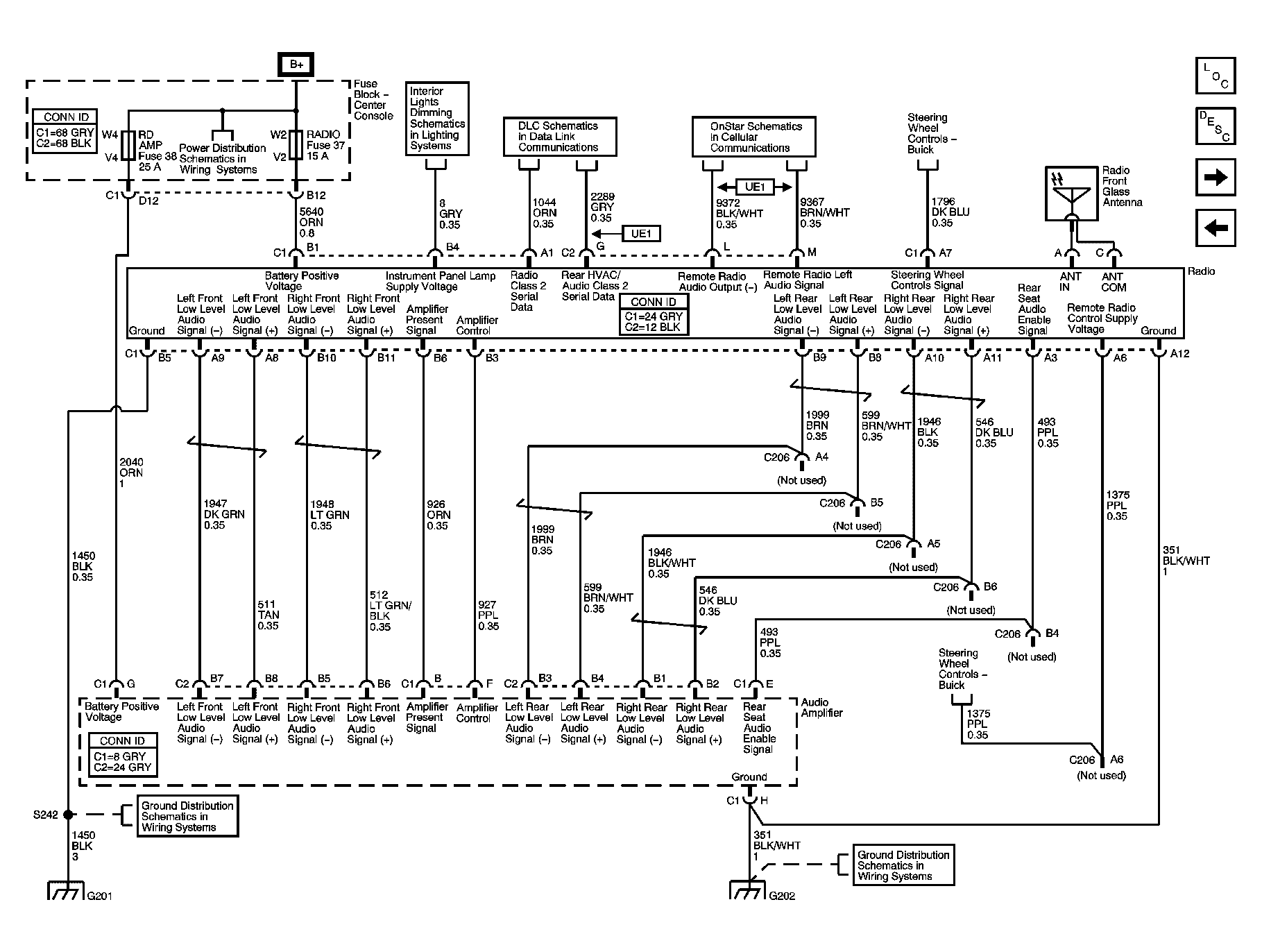

Fig 8: Uplevel Radio W/O Rear Seat Audio Controls (UQ3) Schematic - Buick

Courtesy of GENERAL MOTORS CORP.

Fig 9: Uplevel Radio W/Rear Seat Audio Controls (UQ3 W/U32) Schematic - Buick

Courtesy of GENERAL MOTORS CORP.

Fig 10: Radio Speakers (UQ3) Schematic - Buick

Courtesy of GENERAL MOTORS CORP.

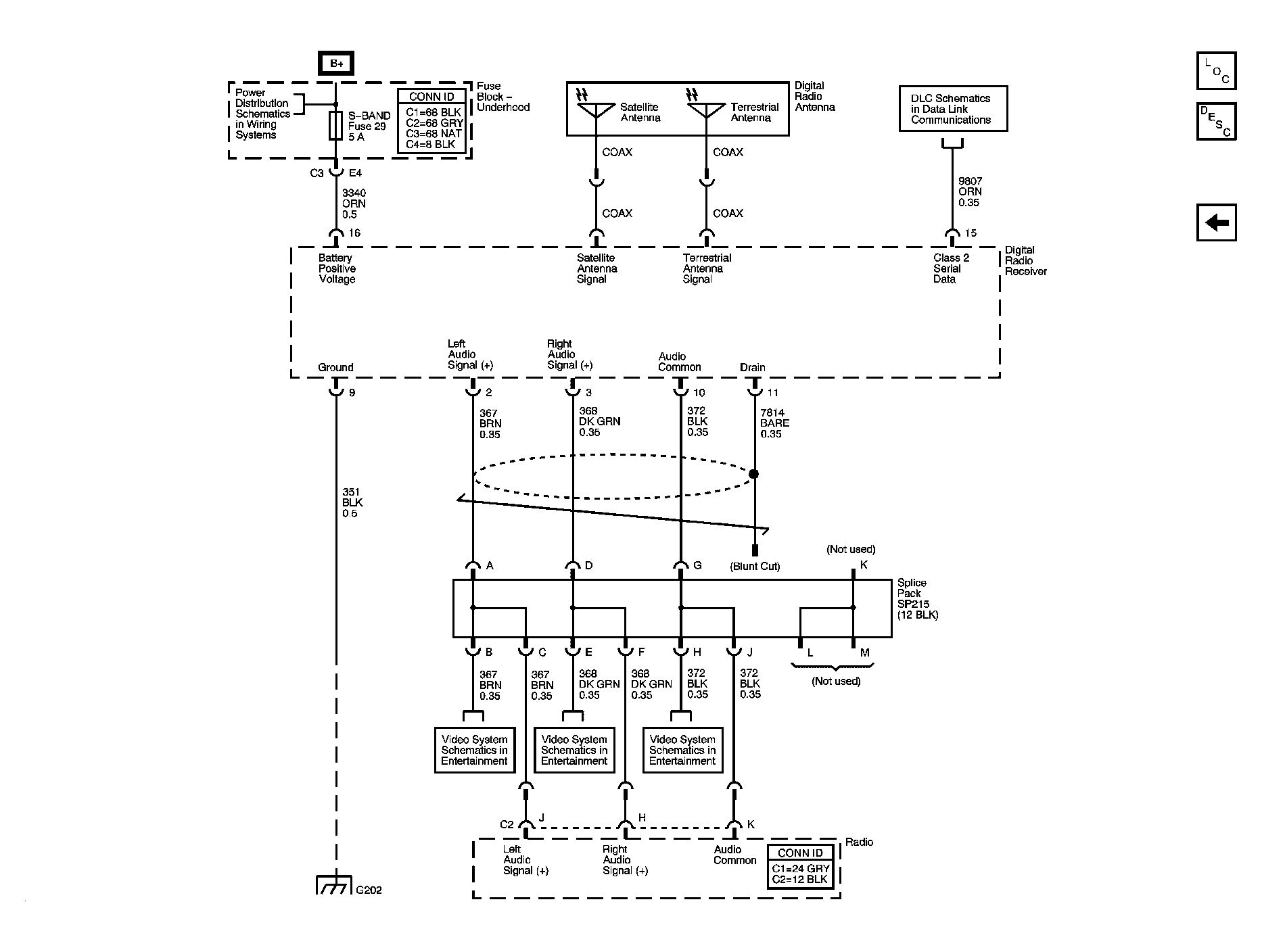

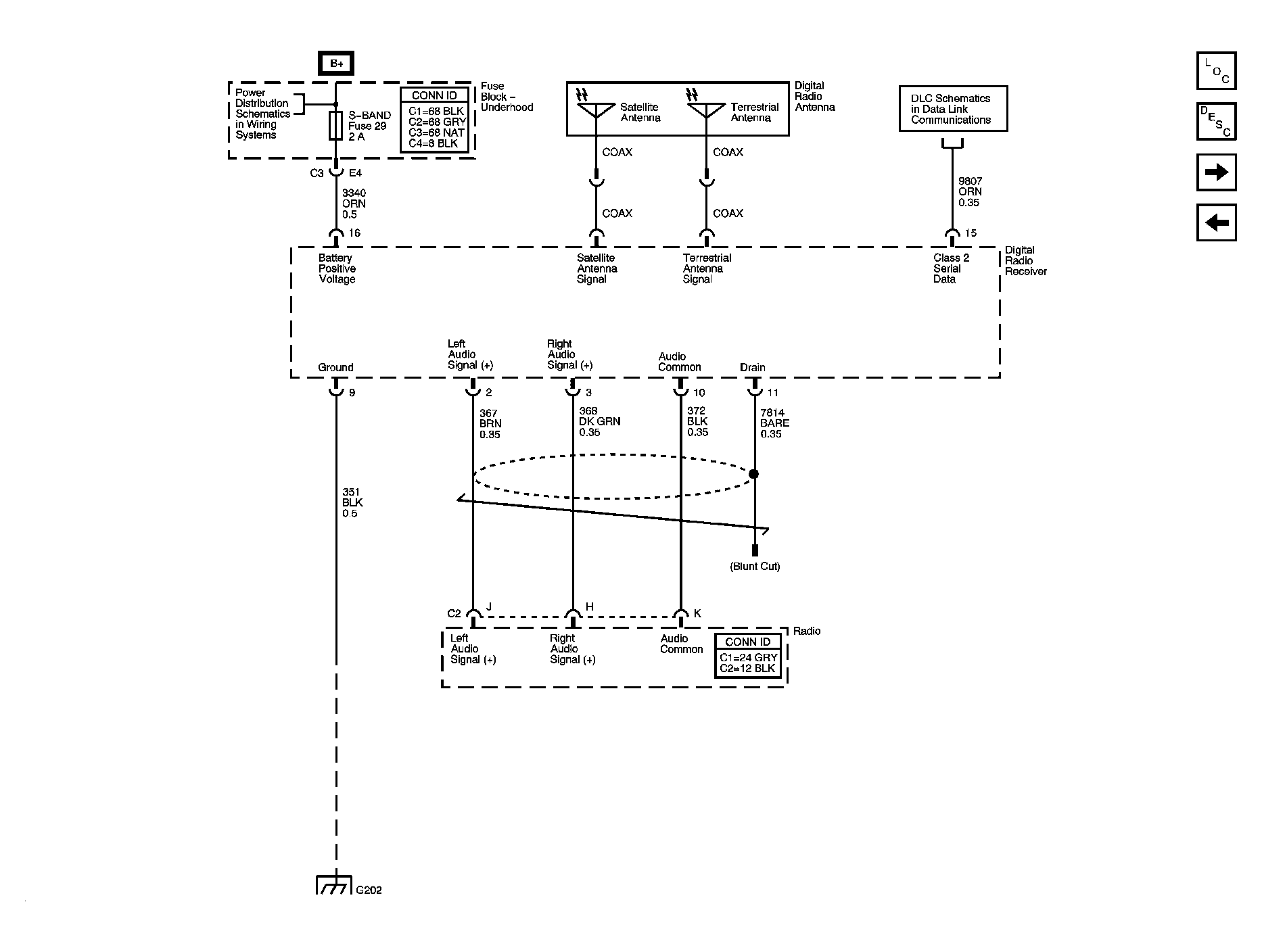

Fig 11: Digital Radio Receiver W/U2K Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 12: Digital Radio Receiver W/U2K & UE1 Schematic

Courtesy of GENERAL MOTORS CORP.
