Installation Procedure

  1. Install the ground strap.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the ground strap bolt to the cowl.

    Tighten

    Tighten the ground strap to cowl bolt to 17 N.m (12 lb ft).

  3. Raise the vehicle.

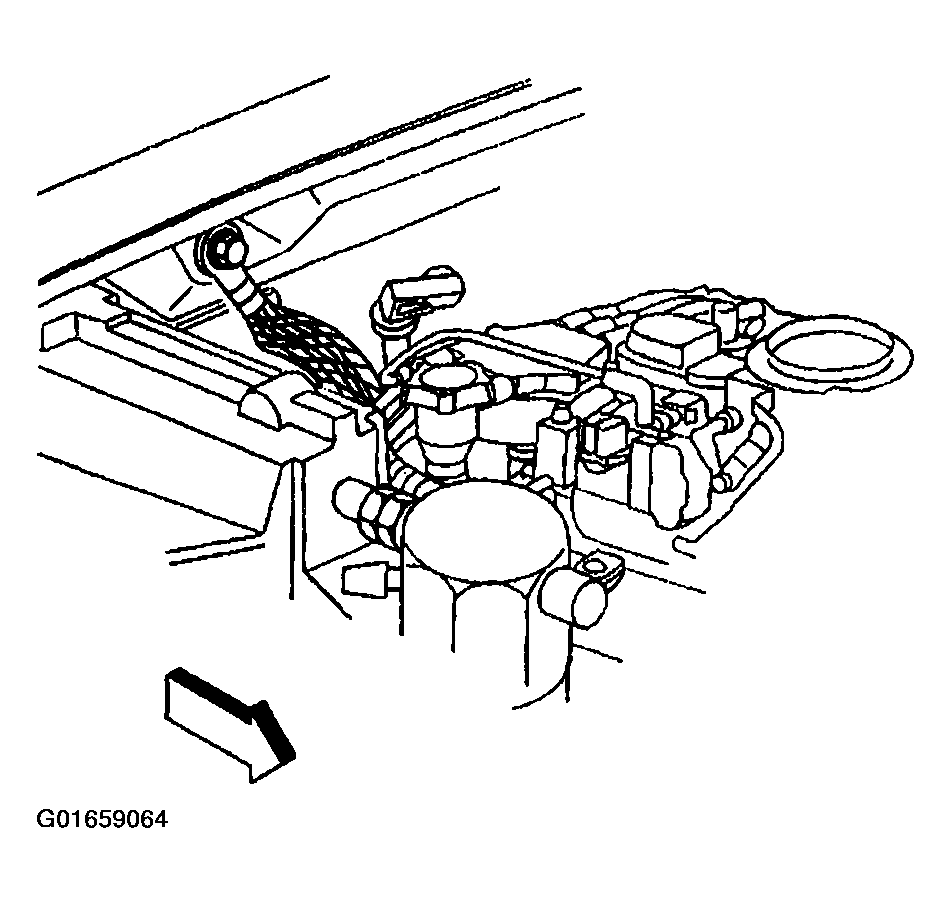

    Fig 1: Ground Strap To Cowl Bolt (4.3L)
    G01659064Courtesy of GENERAL MOTORS CORP.
  4. Install the ground strap bolt to the engine.

    Tighten

    Tighten the ground strap bolt to 50 N.m (37 lb ft).

  5. Lower the vehicle.

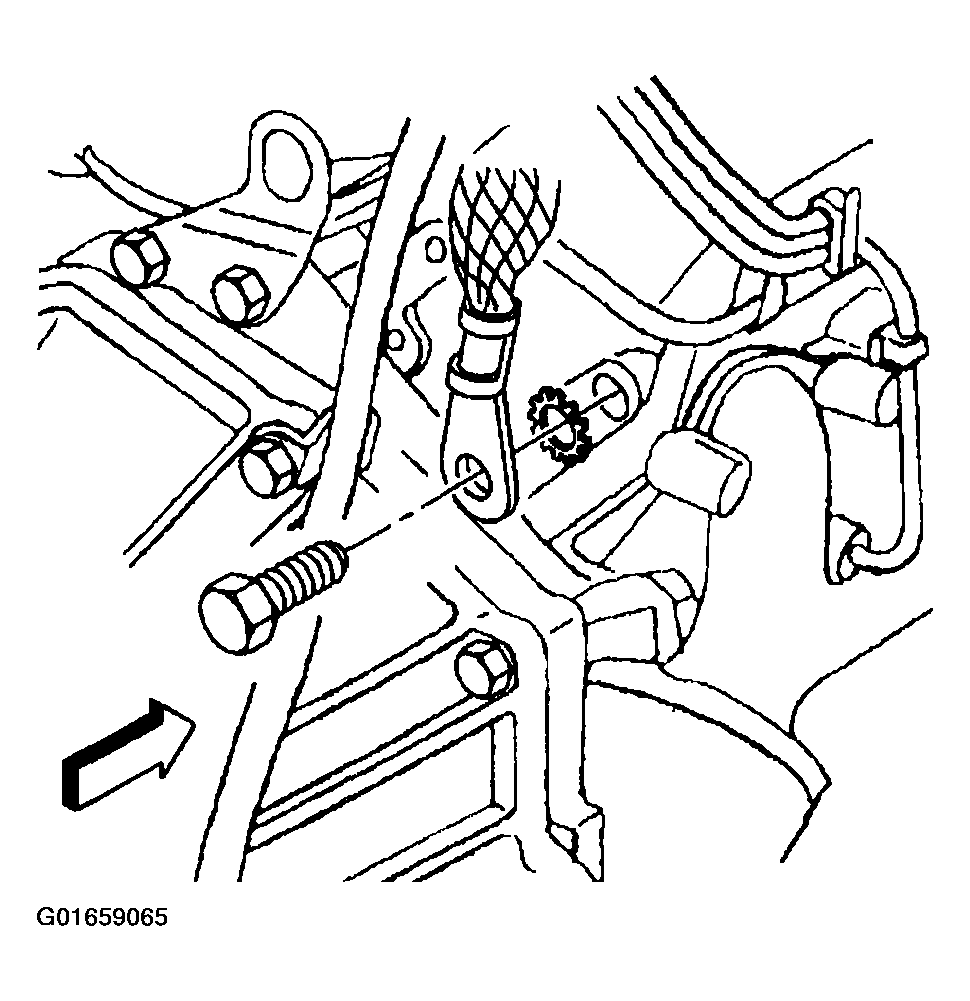

    Fig 2: Ground Strap To Engine Bolt (4.3L)
    G01659065Courtesy of GENERAL MOTORS CORP.
