Removal Procedure

  1. Remove the battery. Refer to Battery Replacement .

    Remove the battery tray retaining bolts.

  2. Remove the battery tray.

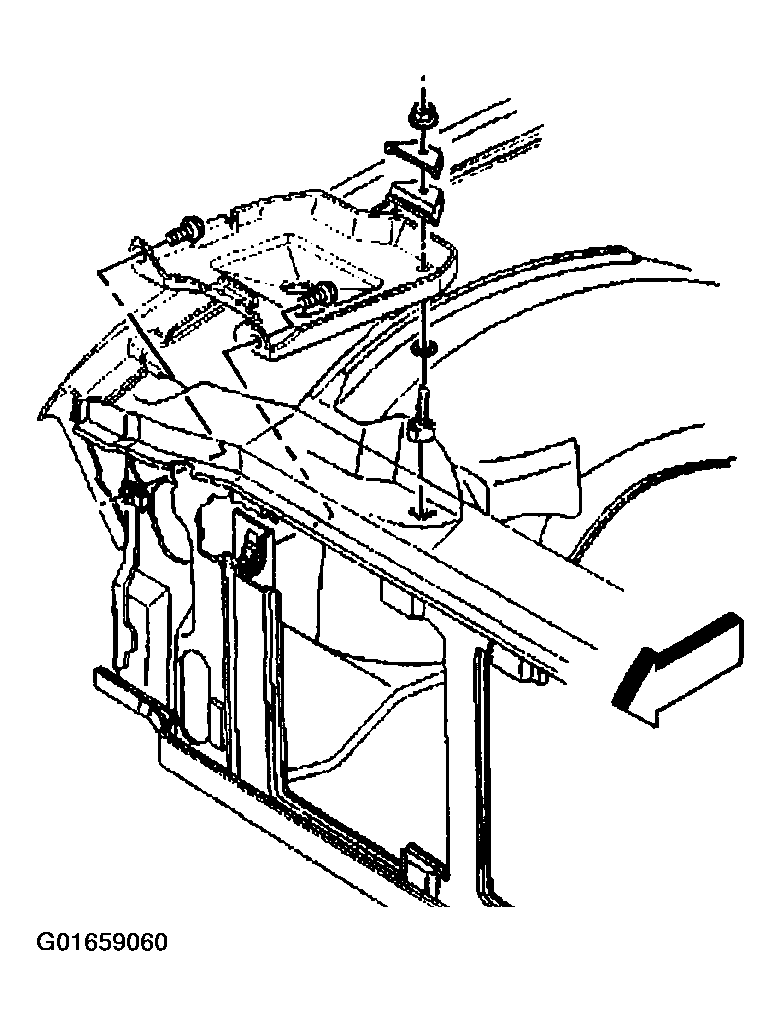

    Fig 1: Battery Tray & Retaining Bolts
    G01659060Courtesy of GENERAL MOTORS CORP.
