Installation Procedure

  1. Install the positive battery cable to the vehicle.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the positive battery cable nut to the engine.

    Tighten

    Tighten the positive battery cable nut to 6 N.m (80 lb in).

  3. Install the nut retaining the positive battery cable to the starter.

    Tighten

    Tighten the positive battery cable nut to 9 N.m (80 lb in).

  4. Lower the vehicle.

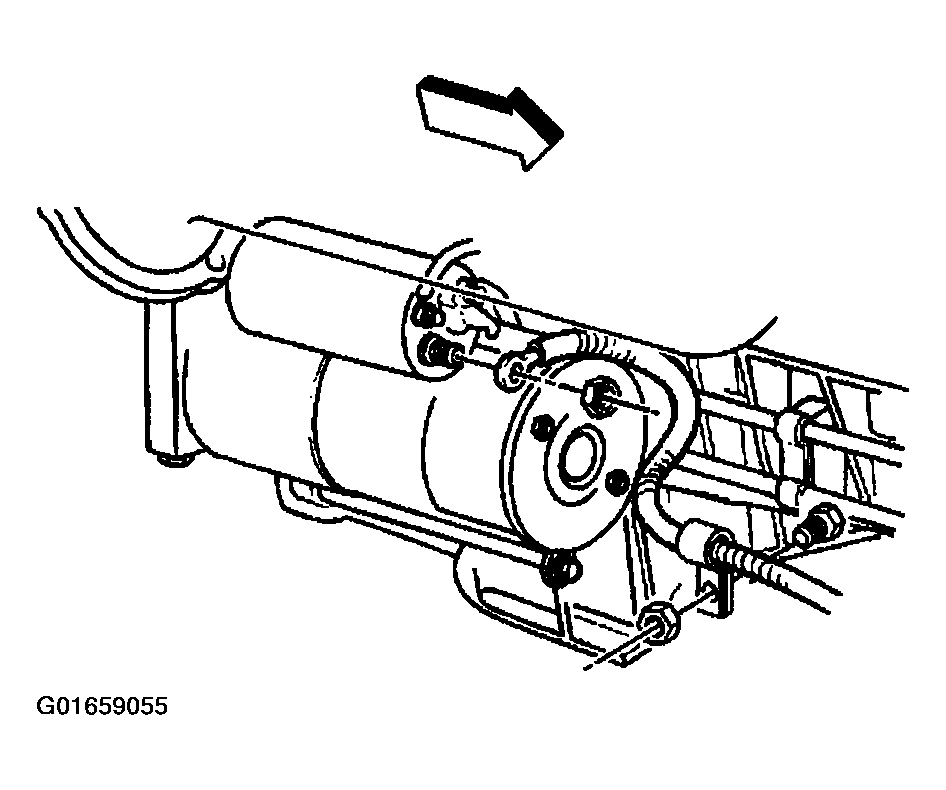

    Fig 1: Positive Battery Cable To Starter Nut & Positive Battery Cable To Engine Nut (4.3L)
    G01659055Courtesy of GENERAL MOTORS CORP.
  5. Install the nut retaining the positive battery cable to the generator.

    Tighten

    Tighten the positive battery cable nut to 17 N.m (13 lb ft).

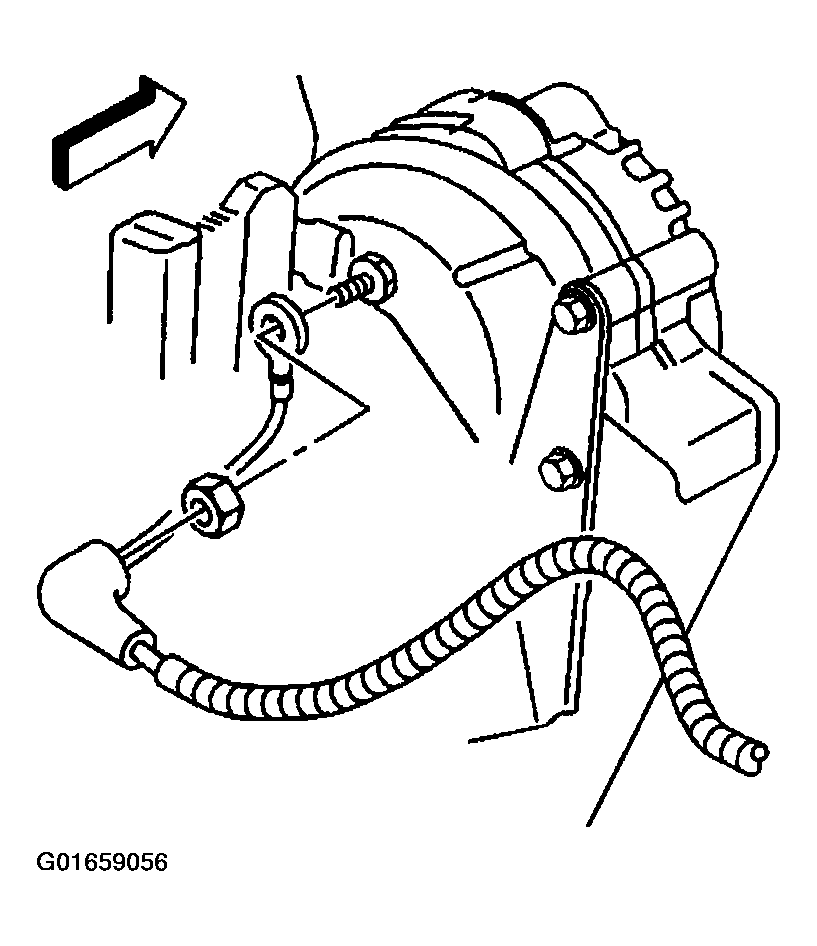

    Fig 2: Positive Battery Cable To Generator Nut (4.3L)
    G01659056Courtesy of GENERAL MOTORS CORP.
  6. Install the nut retaining the positive battery cable to the underhood fuse block.

    Tighten

    Tighten the positive battery cable nut to 10 N.m (89 lb in).

  7. Connect the positive battery cable to the battery.

    Tighten

    Tighten the positive terminal bolt to 14 N.m (11 lb ft).

  8. Connect the negative battery cable to the battery.

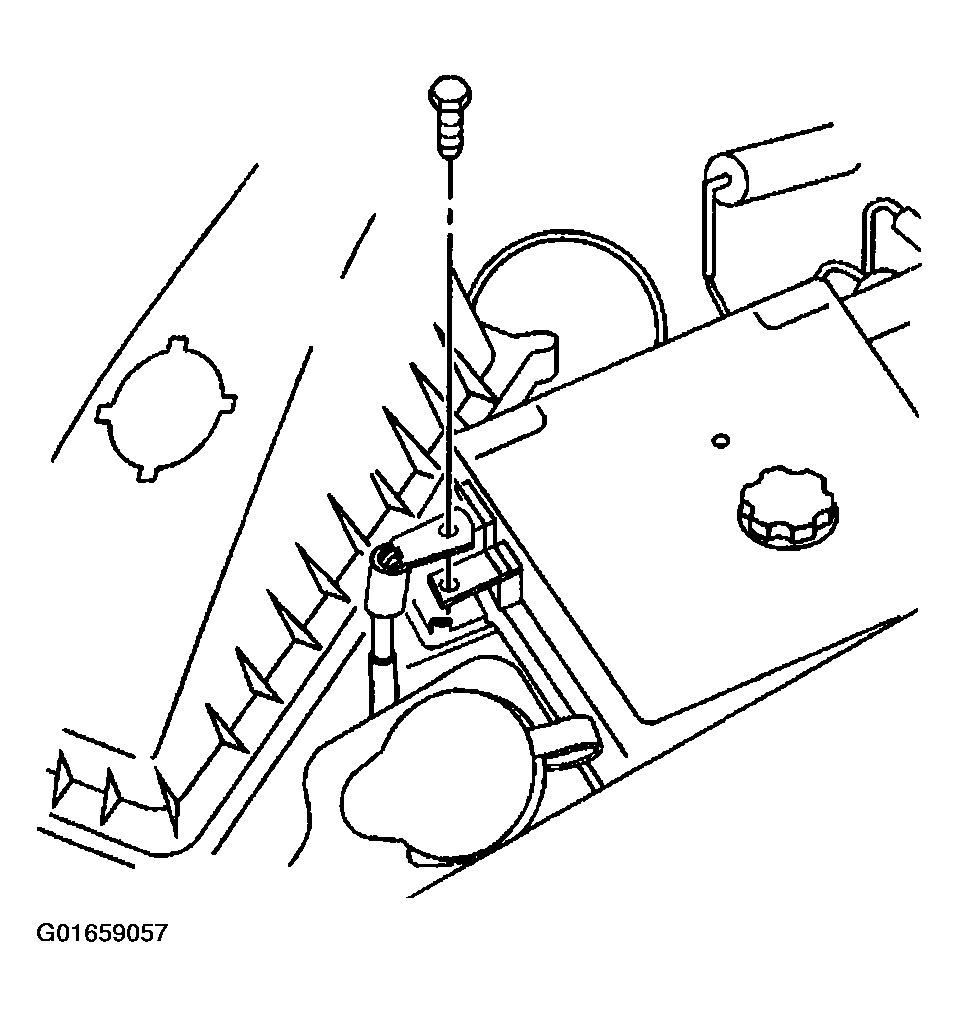

    Fig 3: Positive Battery Cable To Underhood Fuse Block Bolt (4.3L)
    G01659057Courtesy of GENERAL MOTORS CORP.
