Installation Procedure

  1. Install the positive battery cable to the vehicle.
  2. Route the positive battery cable through the hole in the engine mount.
  3. Install the left engine mount. Refer to ENGINE MOUNT REPLACEMENT - LEFT .
    NOTE: Refer to FASTENER NOTICE .
  4. Install the positive battery cable harness bolt to the engine.

    Tighten

    Tighten the positive battery cable harness bolt to 9 N.m (80 lb in).

  5. Install the nut retaining the positive battery cable to the starter.

    Tighten

    Tighten the positive battery cable nut to 9 N.m (80 lb in).

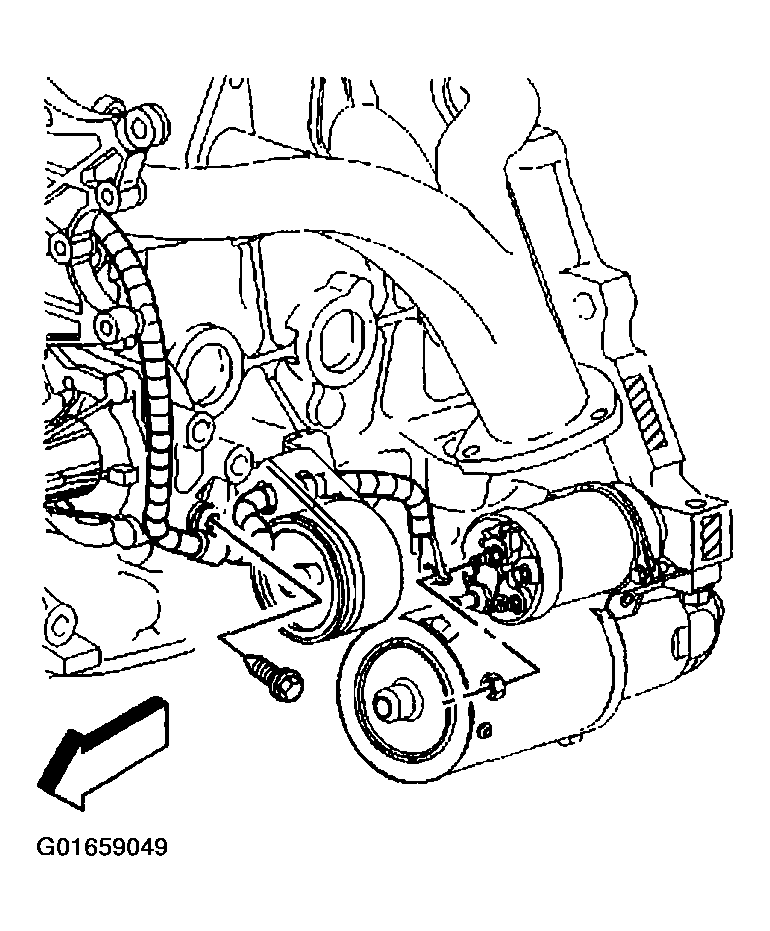

    6. Fig 1: Positive Battery Cable To Starter Nut & Positive Battery Cable Harness Bolt (2.2L)
    G01659049Courtesy of GENERAL MOTORS CORP.
  6. Lower the vehicle.
  7. Install the nut retaining the positive battery cable to the generator.

    Tighten

    Tighten the positive battery cable nut to 17 N.m (13 lb ft).

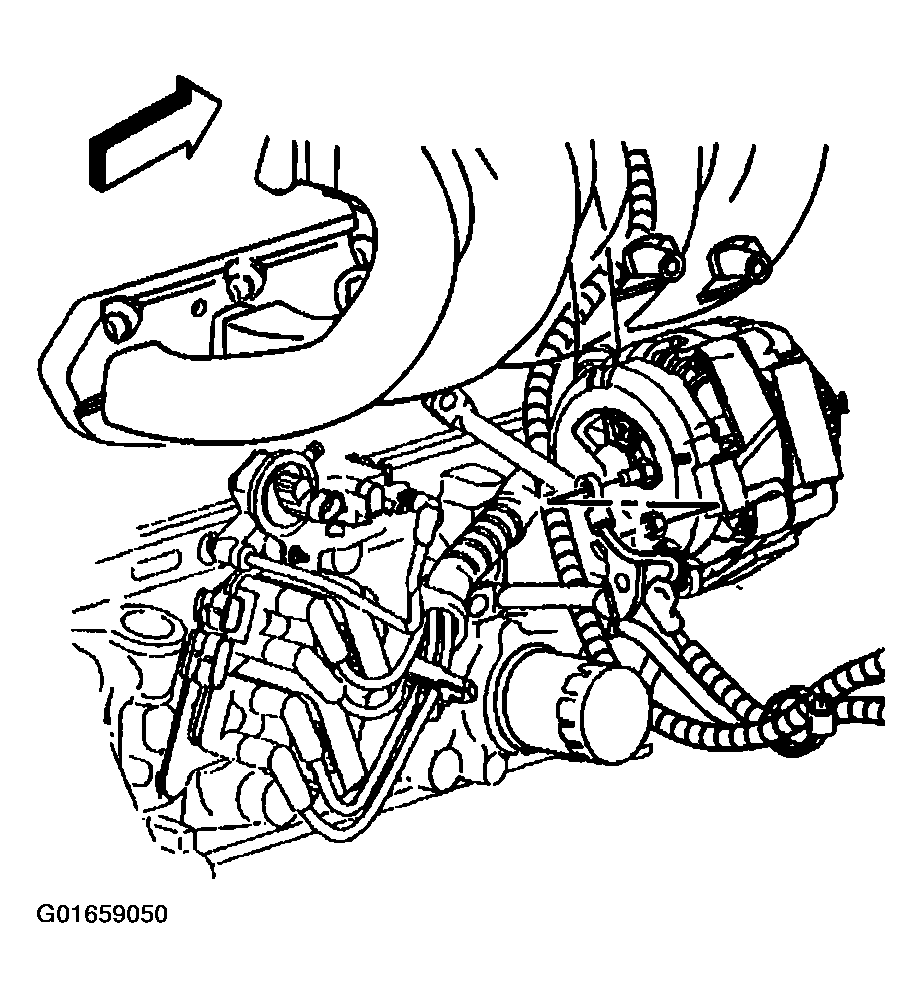

    Fig 2: Positive Battery Cable To Generator Nut (2.2L)
    G01659050Courtesy of GENERAL MOTORS CORP.
  8. Install the nut retaining the positive battery cable to the underhood fuse block.

    Tighten

    Tighten the positive battery cable nut to 10 N.m (89 lb in).

  9. Connect the positive battery cable to the battery.

    Tighten

    Tighten the positive battery terminal bolt to 15 N.m (11 lb ft).

  10. Connect the negative battery cable to the battery.

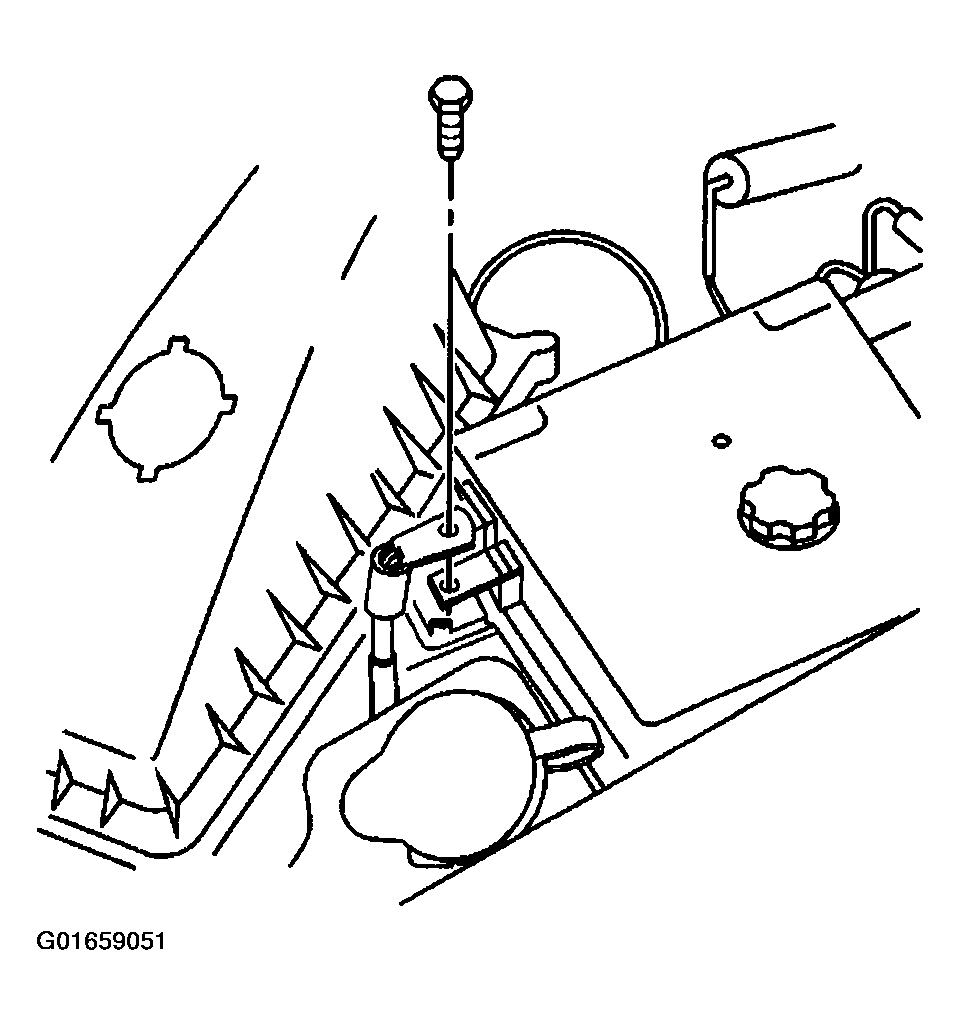

    Fig 3: Positive Battery Cable To Underhood Fuse Block Bolt (2.2L)
    G01659051Courtesy of GENERAL MOTORS CORP.
