  1. Install the negative battery cable.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the negative battery cable bolt to the block.

    Tighten

    Tighten the negative battery cable bolt to 17 N.m (13 lb ft).

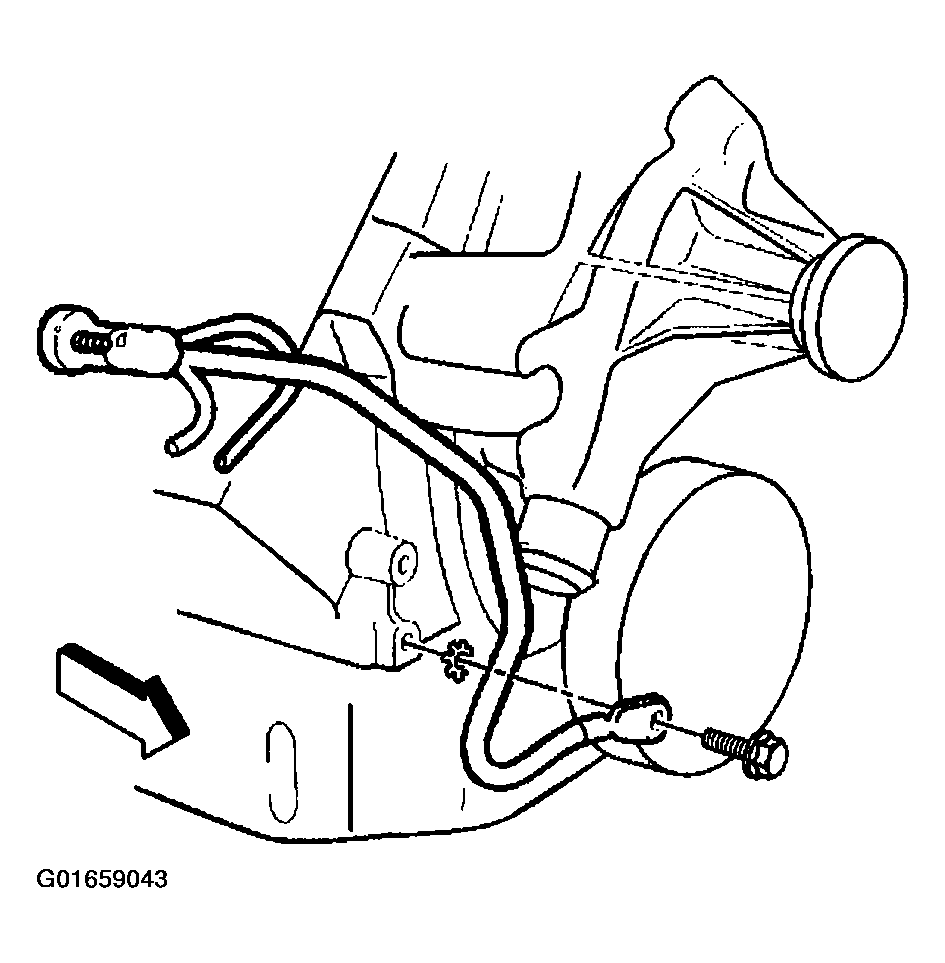

    Fig 1: Negative Battery Cable Bolt At Block (4.3L)
    G01659043Courtesy of GENERAL MOTORS CORP.
  3. Install the negative battery cable bolt to the radiator support.

    Tighten

    Tighten the negative battery cable bolt to 9 N.m (80 lb in).

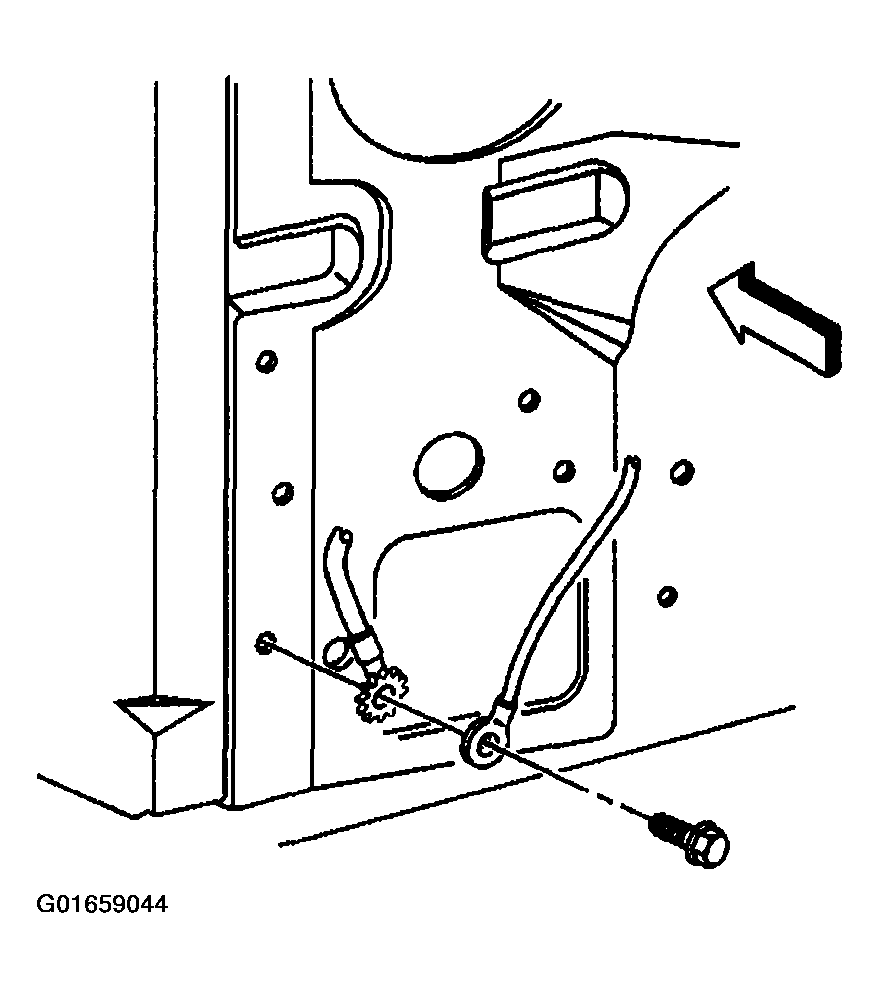

    Fig 2: Negative Battery Cable Bolt At Radiator Support (4.3L)
    G01659044Courtesy of GENERAL MOTORS CORP.
  4. Install the negative battery cable bolt to the frame.

    Tighten

    Tighten the negative battery cable bolt to 9 N.m (80 lb in).

  5. Lower the vehicle.
  6. Connect the negative battery cable. Refer to Battery Negative Cable Disconnect/Connect Procedure .
    Fig 3: Negative Battery Cable Bolt At Frame (4.3L)
    G01659045Courtesy of GENERAL MOTORS CORP.
