Installation Procedure

IMPORTANT: Do not use RTV or any other type of sealant on the EBCM gasket or mating surfaces.

Install EBCM (2) onto BPMV (3).
NOTE: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.

IMPORTANT: Do not reuse the old mounting bolts. Always install new bolts with the new BPMV.

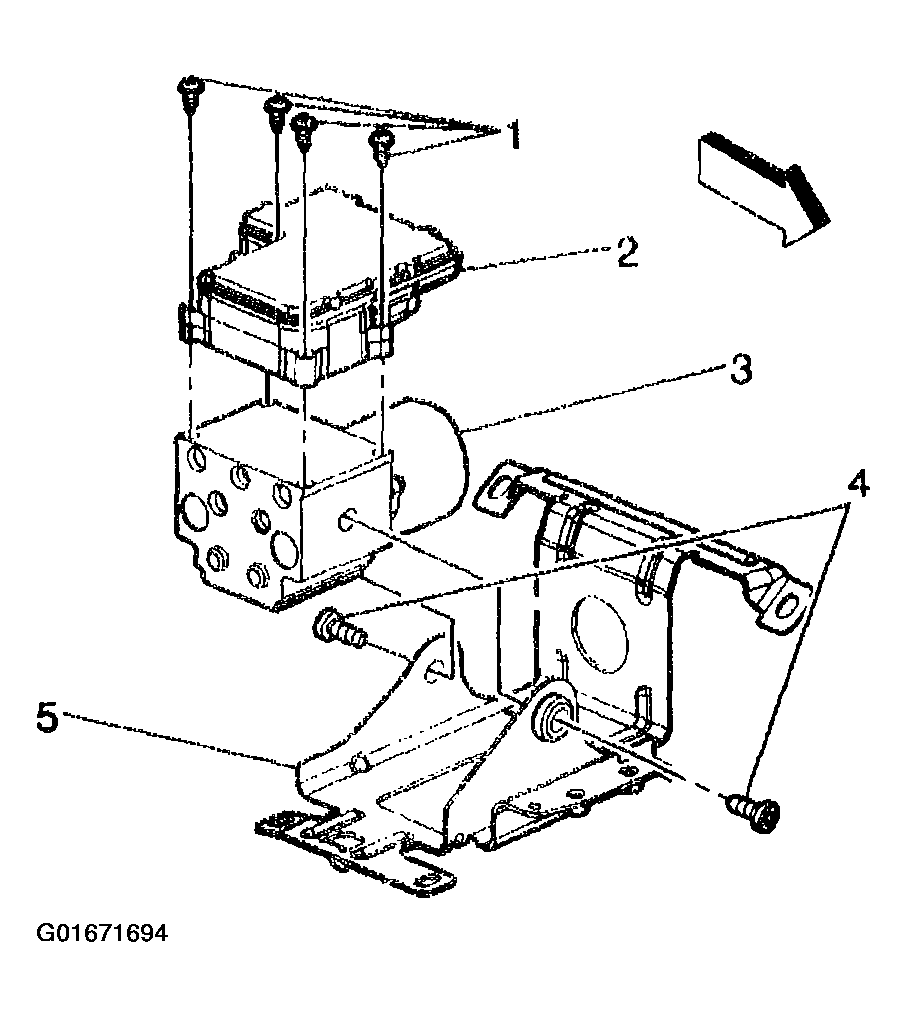

Fig 1: Brake Pressure Modulator Valve

Courtesy of GENERAL MOTORS CORP.

Install the four EBCM bolts.
Tighten

Tighten the four bolts to 5 N.m (39 lb in) in an X-pattern.
Connect the 2 way ABS pump motor connector to the EBCM (2).
Install BPMV (3) to EHCU bracket (5).
Connect the two electrical harness connectors to the EBCM (2).
IMPORTANT: The brake pipes are held in the proper place by a frame mounted plastic bracket. Make sure that the brake pipes stay in the correct place for proper reassembly.
Install the 5 brake pipes to the BPMV (3).
Tighten

Tighten the brake pipe fittings to 30 N.m (22 lb ft).
Bleed the brake system. Refer to ABS Automated Bleed Procedure .
