Schematic and Routing Diagrams

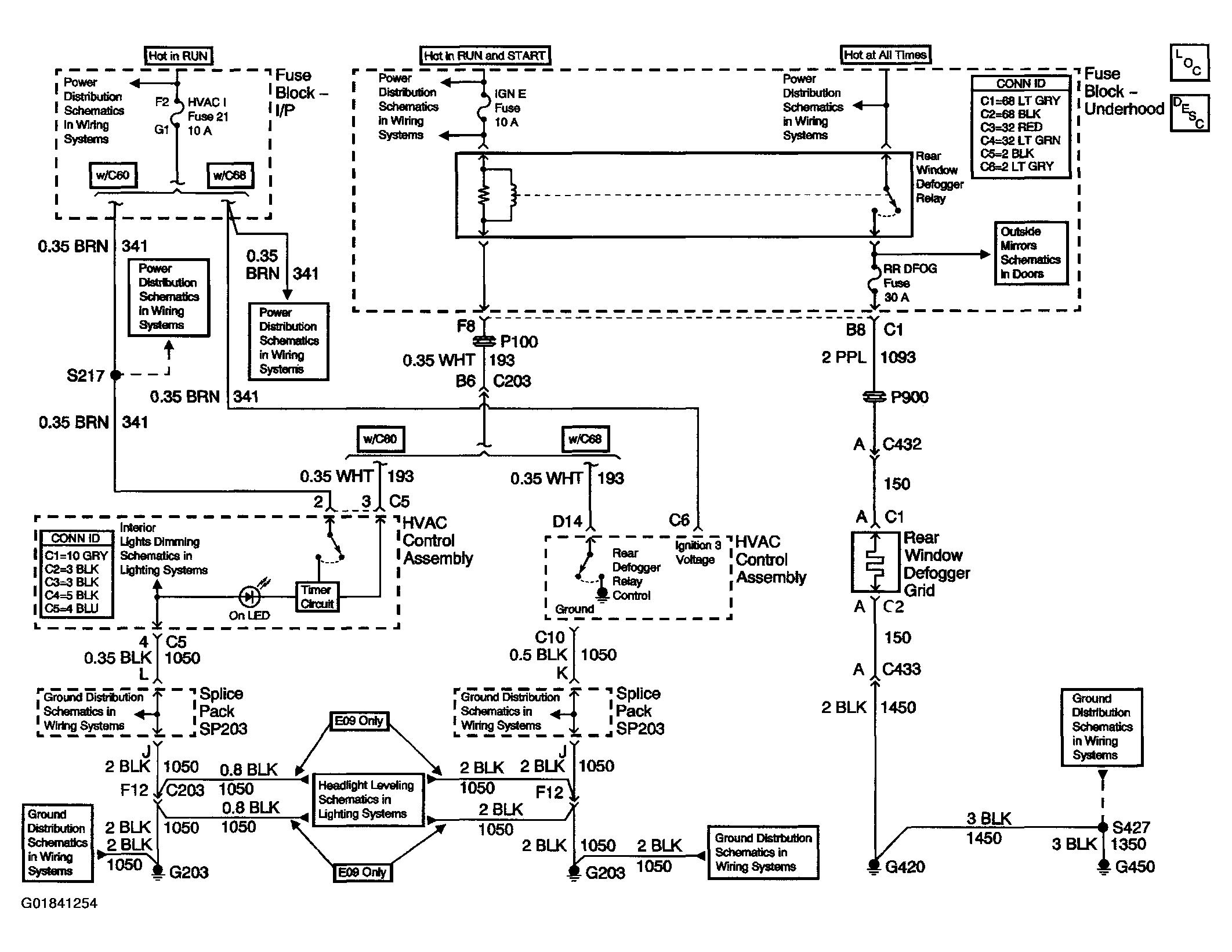

Fig 1: Defogger Schematic

G01841254

Courtesy of GENERAL MOTORS CORP.

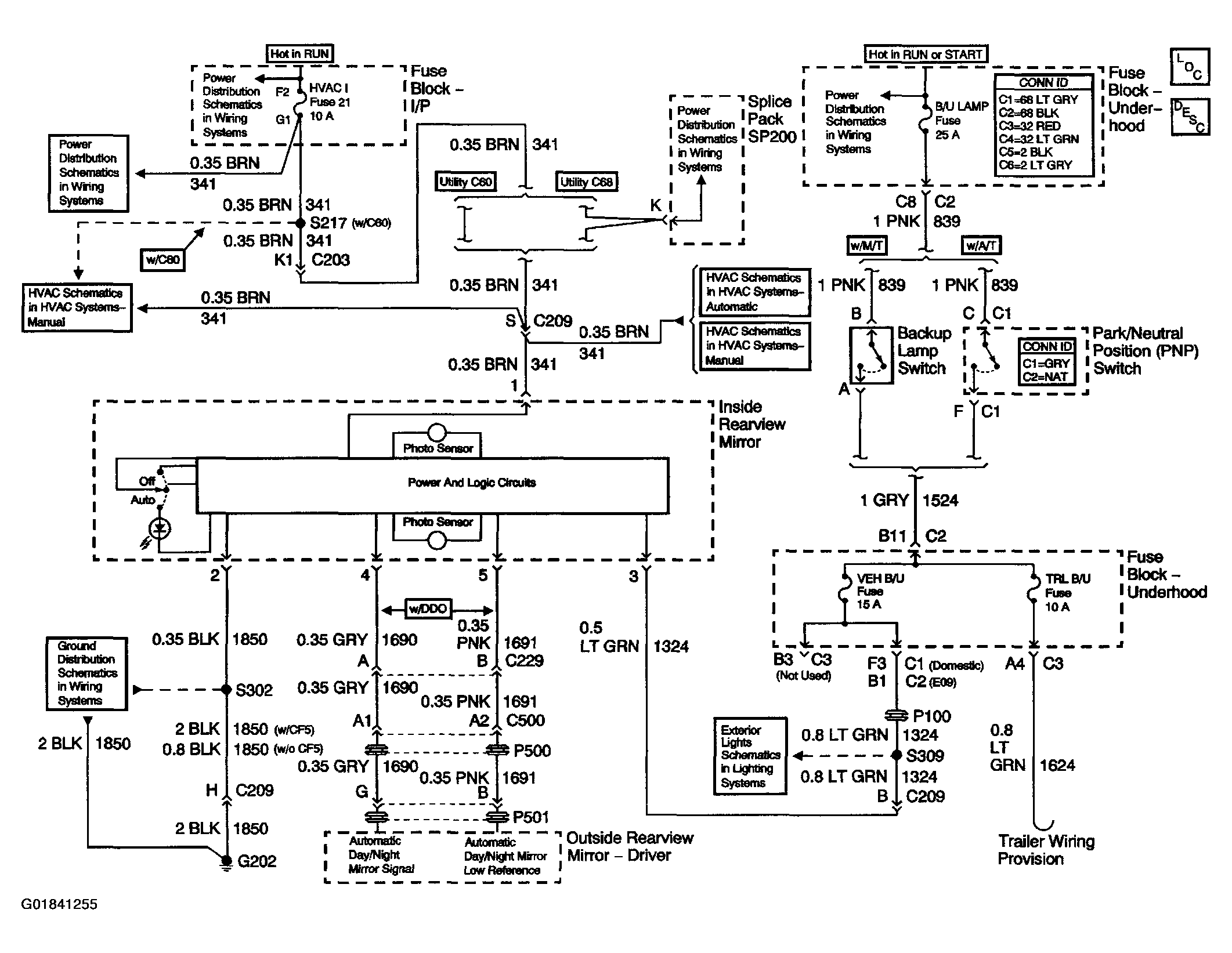

Fig 2: Inside Rearview Mirror Schematic

G01841255

Courtesy of GENERAL MOTORS CORP.
