Removal Procedure

  1. Remove the window. Refer to Window Replacement - Front Door .
  2. Disconnect the power window motor electrical connector, if equipped.
  3. Remove the electrical harness retainers, if equipped.
  4. Drill out the rivets that secure the window regulator to the door.
  5. Remove the window regulator from the door.
  6. Remove the power window motor, if equipped. Refer to Motor Replacement - Power Window .

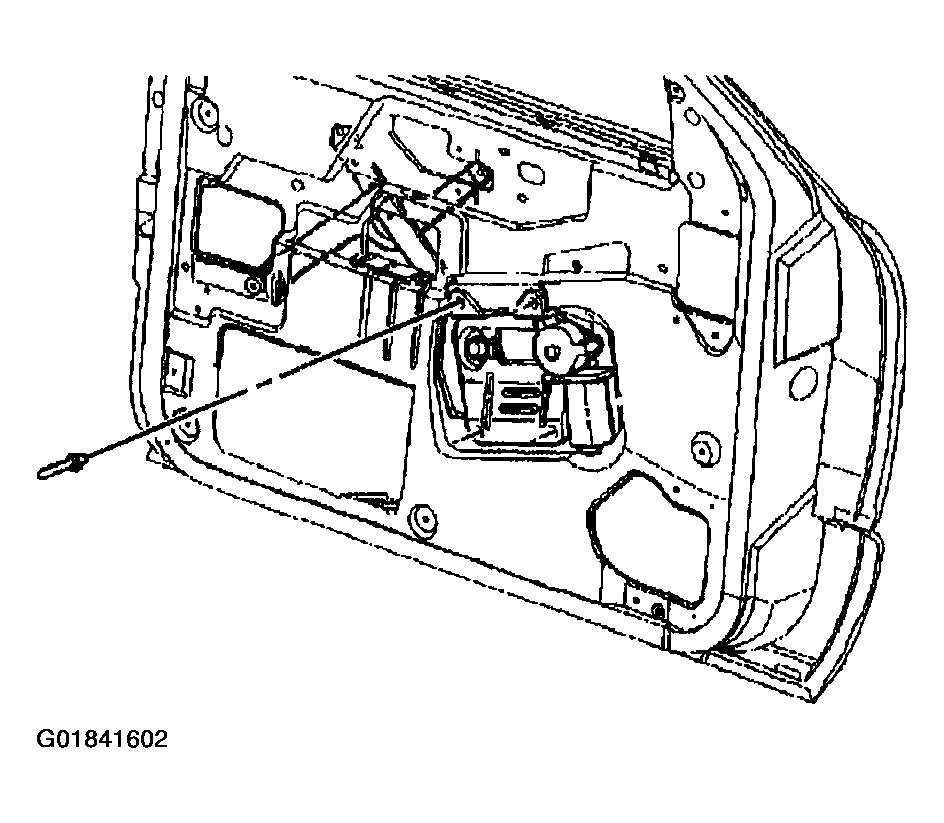

    Fig 1: Removing Rivets That Secure Window Regulator To Door - Front Door
    G01841602Courtesy of GENERAL MOTORS CORP.
