Removal Procedure

CAUTION: Refer to BATTERY DISCONNECT CAUTION in Cautions and Notices.
  1. Disconnect the battery negative cable.
  2. Remove the power accessory switch panel from the armrest.

    Use a flat-bladed tool in order to carefully pry the cover up at the front leading edge.

  3. Disconnect the electrical connectors from the switch.
  4. Remove the switches from the switch mounting panel, if necessary.

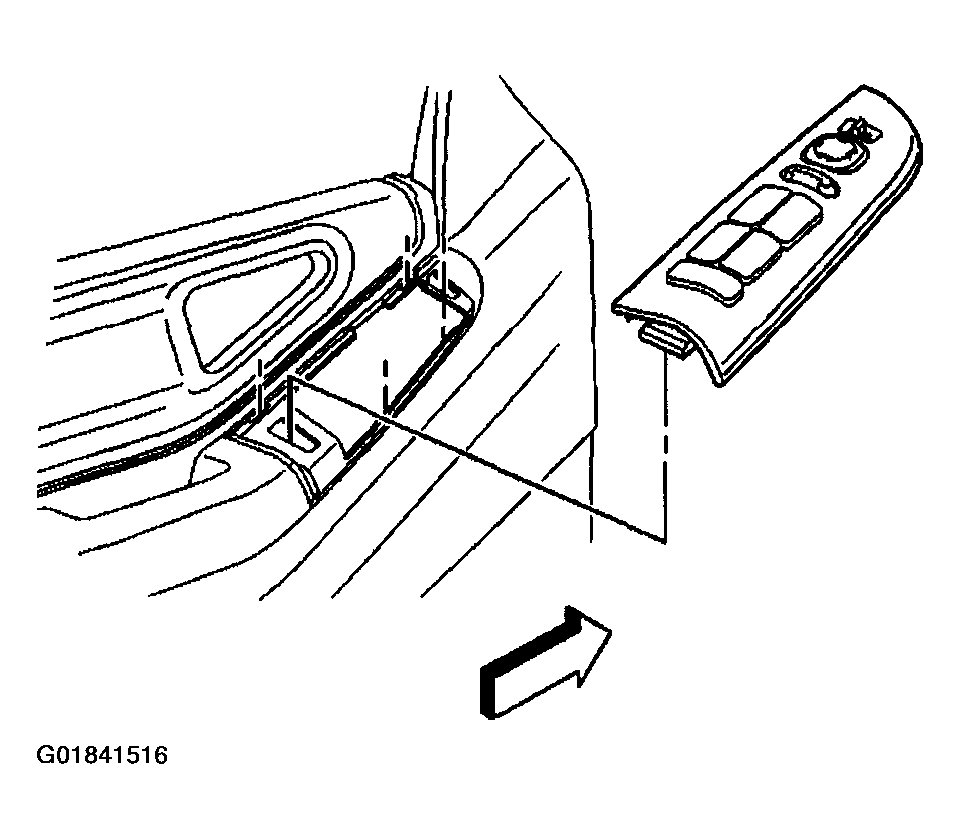

    Fig 1: Removing Power Accessory Switch Panel From Armrest
    G01841516Courtesy of GENERAL MOTORS CORP.
