Removal Procedure

  1. Remove the door trim panel. Refer to Trim Panel Replacement - Side Front Door .
  2. Remove the access hole plugs.
  3. Remove the nuts that retain the outside rearview mirror to the door.

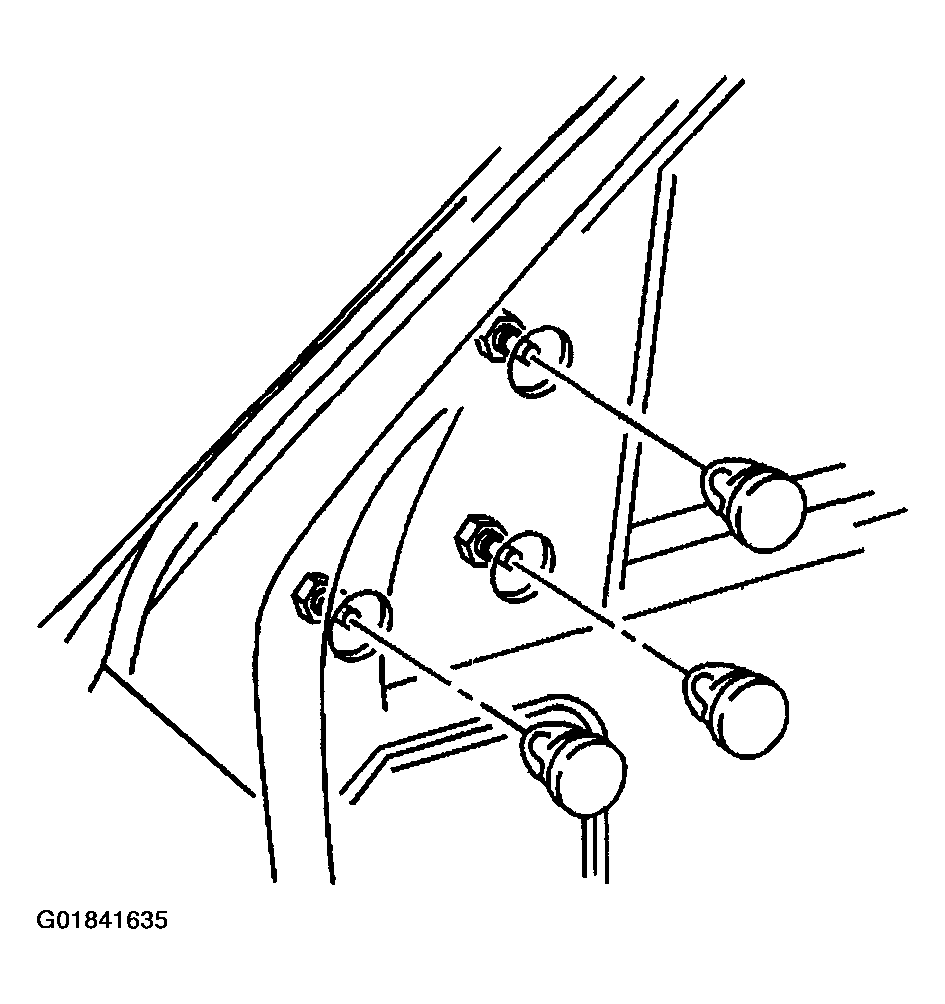

    Fig 1: Removing Access Hole Plugs
    G01841635Courtesy of GENERAL MOTORS CORP.
  4. Remove the outside rearview mirror from the door.
  5. Disconnect the electrical connector, if equipped.

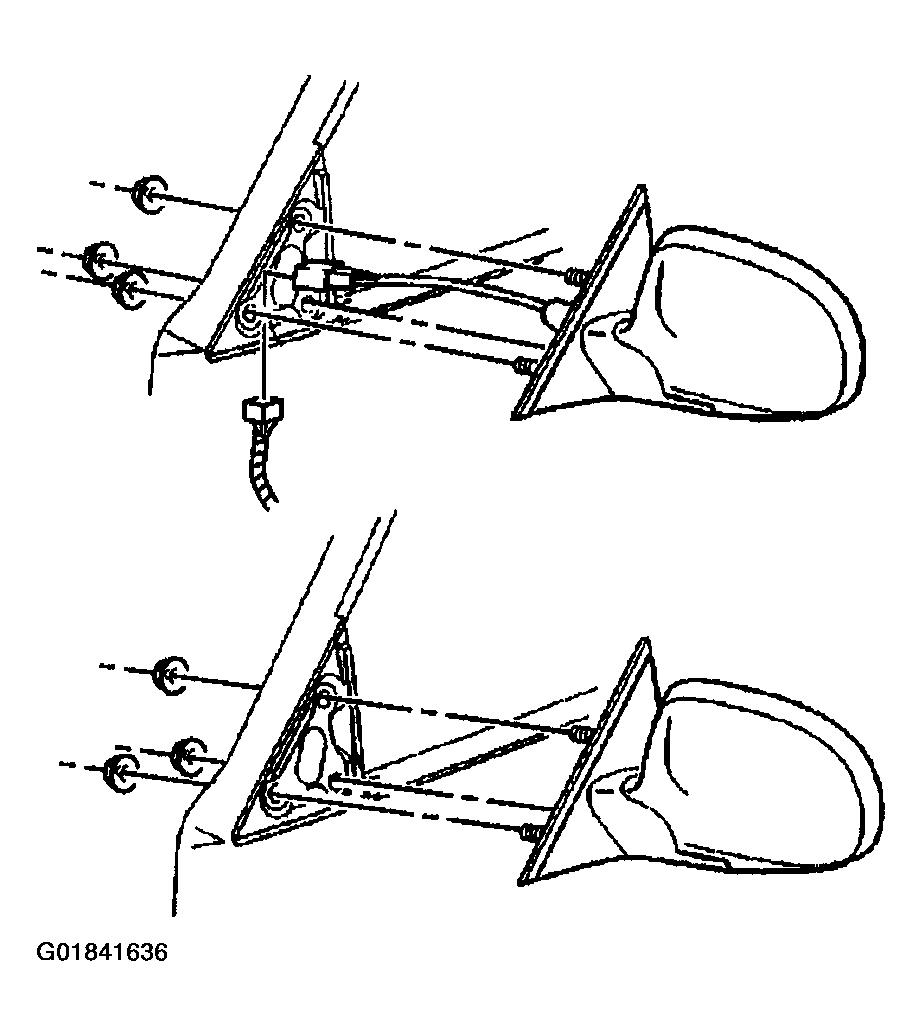

    Fig 2: Remove the outside rearview mirror from the door
    G01841636Courtesy of GENERAL MOTORS CORP.
