Removal Procedure
CAUTION:
When working with any type of glass or sheet metal with exposed or rough edges, wear approved safety glasses and gloves in order to reduce the chance of personal injury.

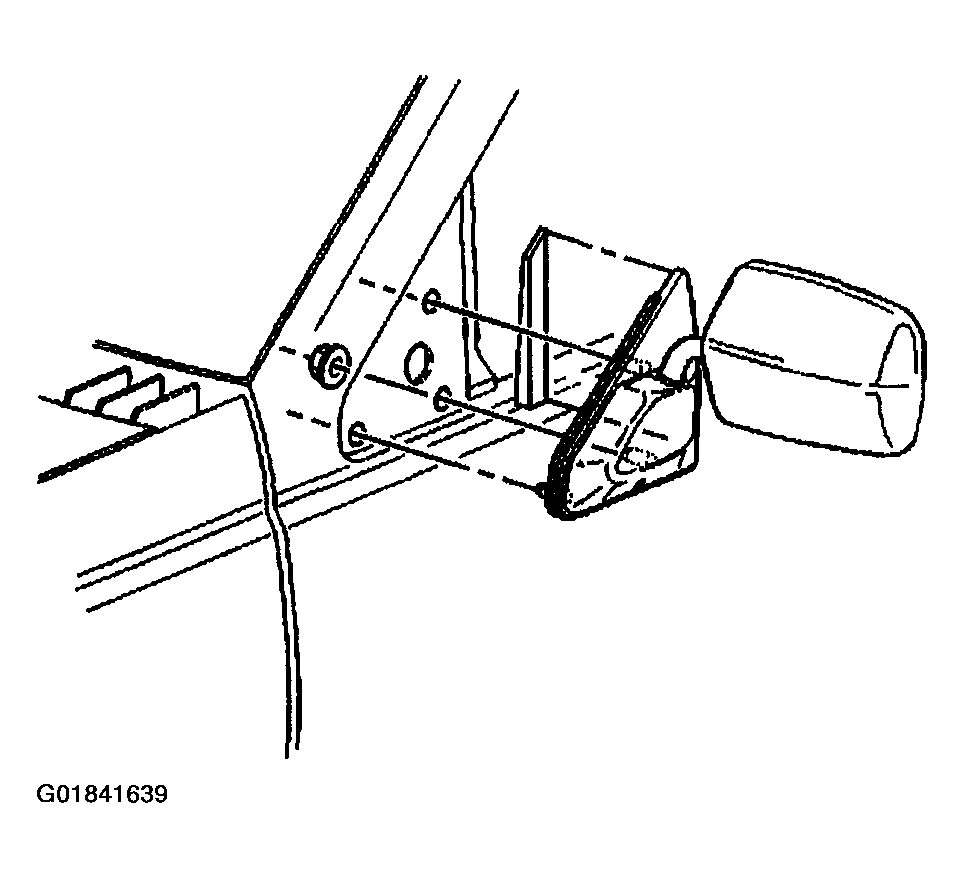

- Remove the mirror from the door. Refer to Mirror Replacement .
- Remove the damaged mirror back and glass sub-assembly from the mirror housing by completing the following steps:
- 2.1. Insert your fingers as far as possible behind the mirror back toward the center of the back.
- 2.2. With force sufficient in order to disengage the trunnion from the motor pack, pull the mirror back straight out of the housing.
- Inspect the motor pack top for any damage to the trunnion area.
- Remove the remaining jack screws that may remain in the motor pack helical gear openings.
- Clean the glass from the inside of the mirror frame.
