Installation Procedure

  1. Install the lumbar adjustment handle to the seat bottom.
  2. Ensure that the adjustment handle is secure before installing the retainer clip to the adjustment handle.
  3. Install the retainer clip to the adjustment handle.

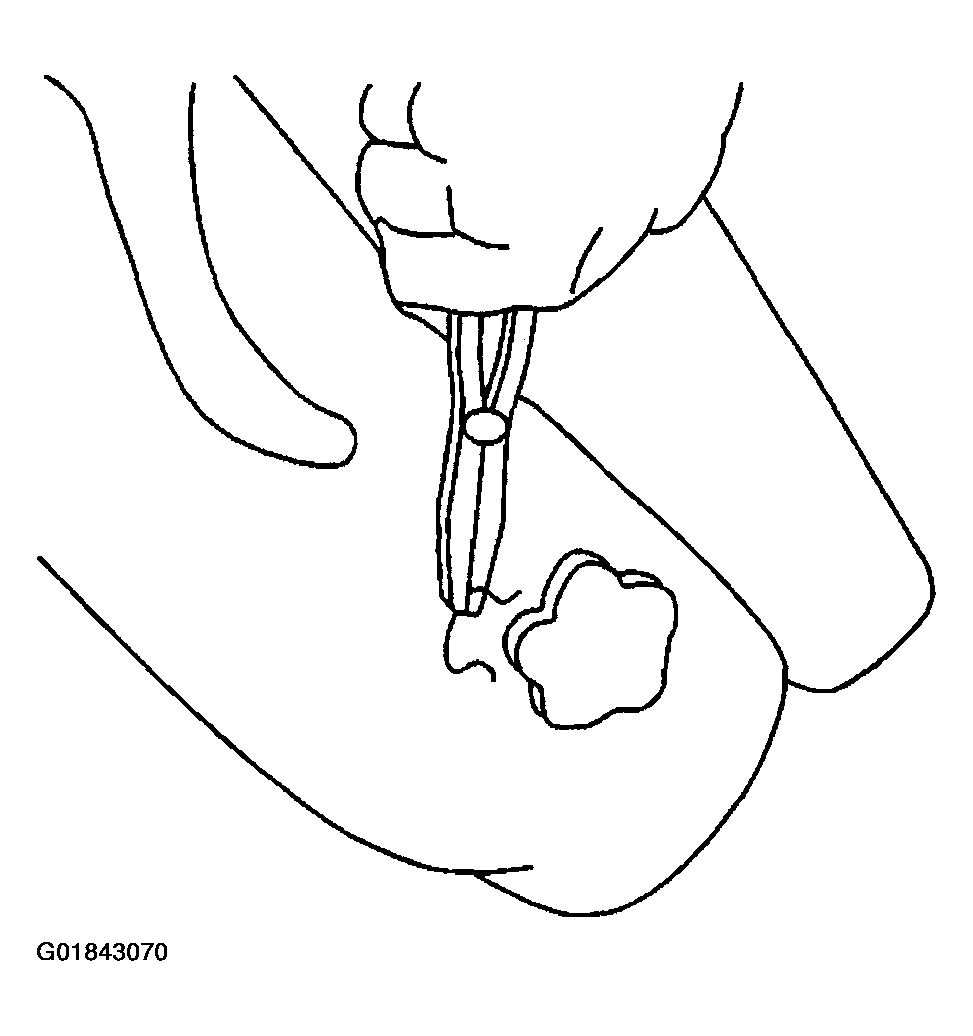

    Fig 1: Locating Lumbar Support Knob Retainer Clip
    G01843070Courtesy of GENERAL MOTORS CORP.
