Doors Component Views

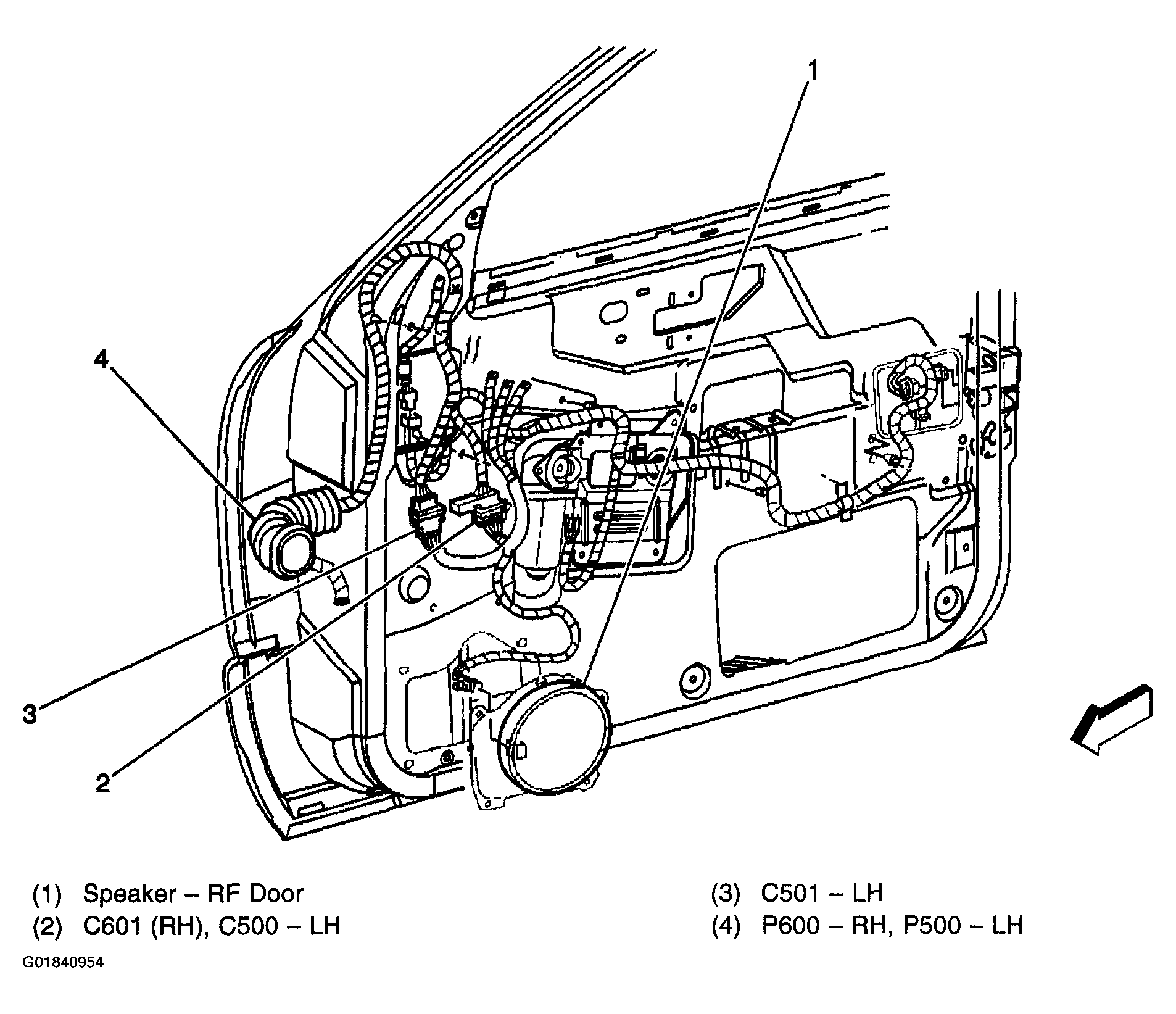

Fig 1: Doors, Front Passenger Shown, Driver Similar

G01840954

Courtesy of GENERAL MOTORS CORP.
