Transfer Case Shift Control Module Connector End View (1 Of 2)

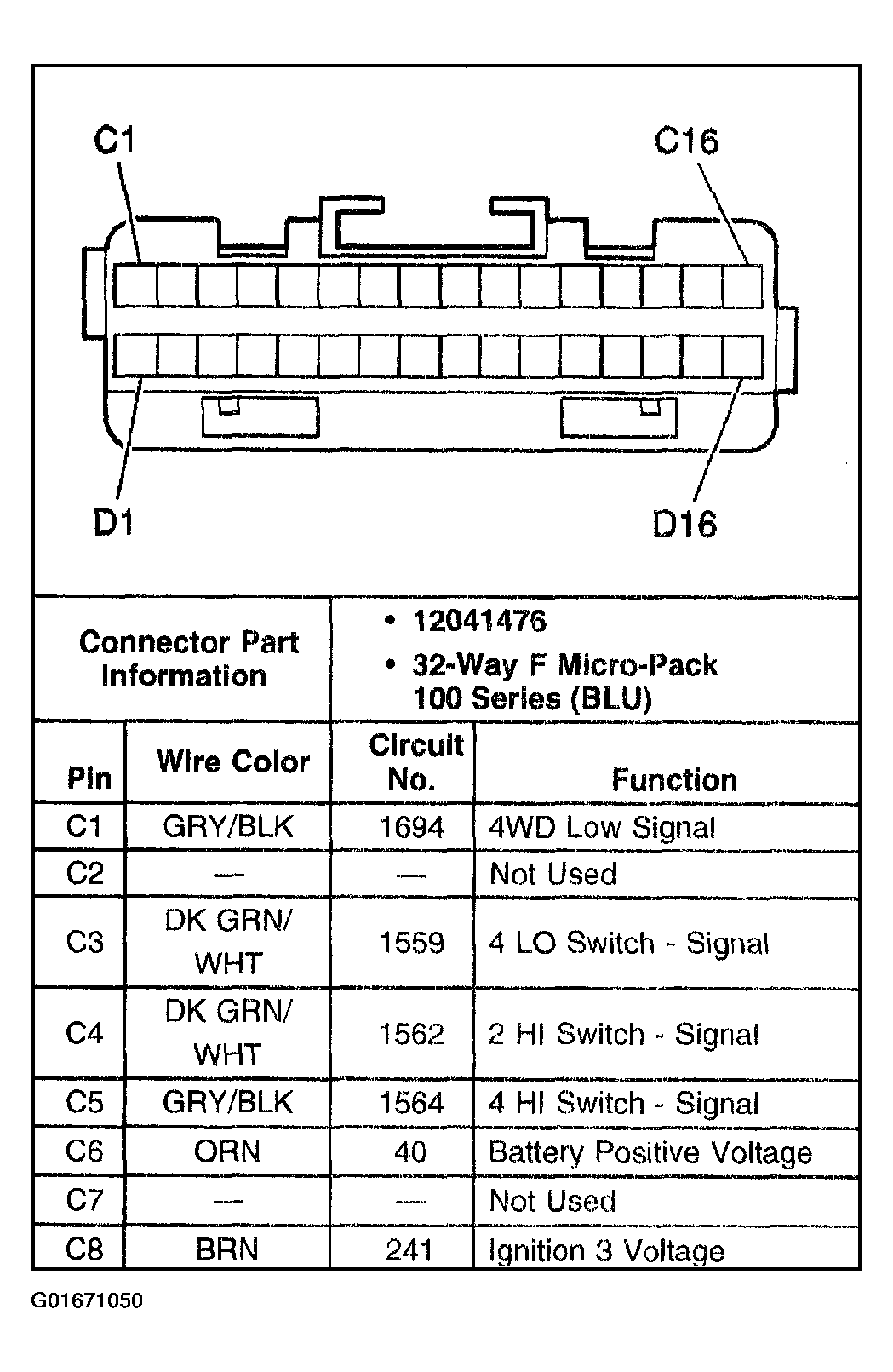

Fig 1: Transfer Case Shift Control Module Connector End View (1 Of 2)

G01671050

Courtesy of GENERAL MOTORS CORP.
