Identifying HVAC Module Harness Connector End View
Identifying HVAC Module Harness Connector End View

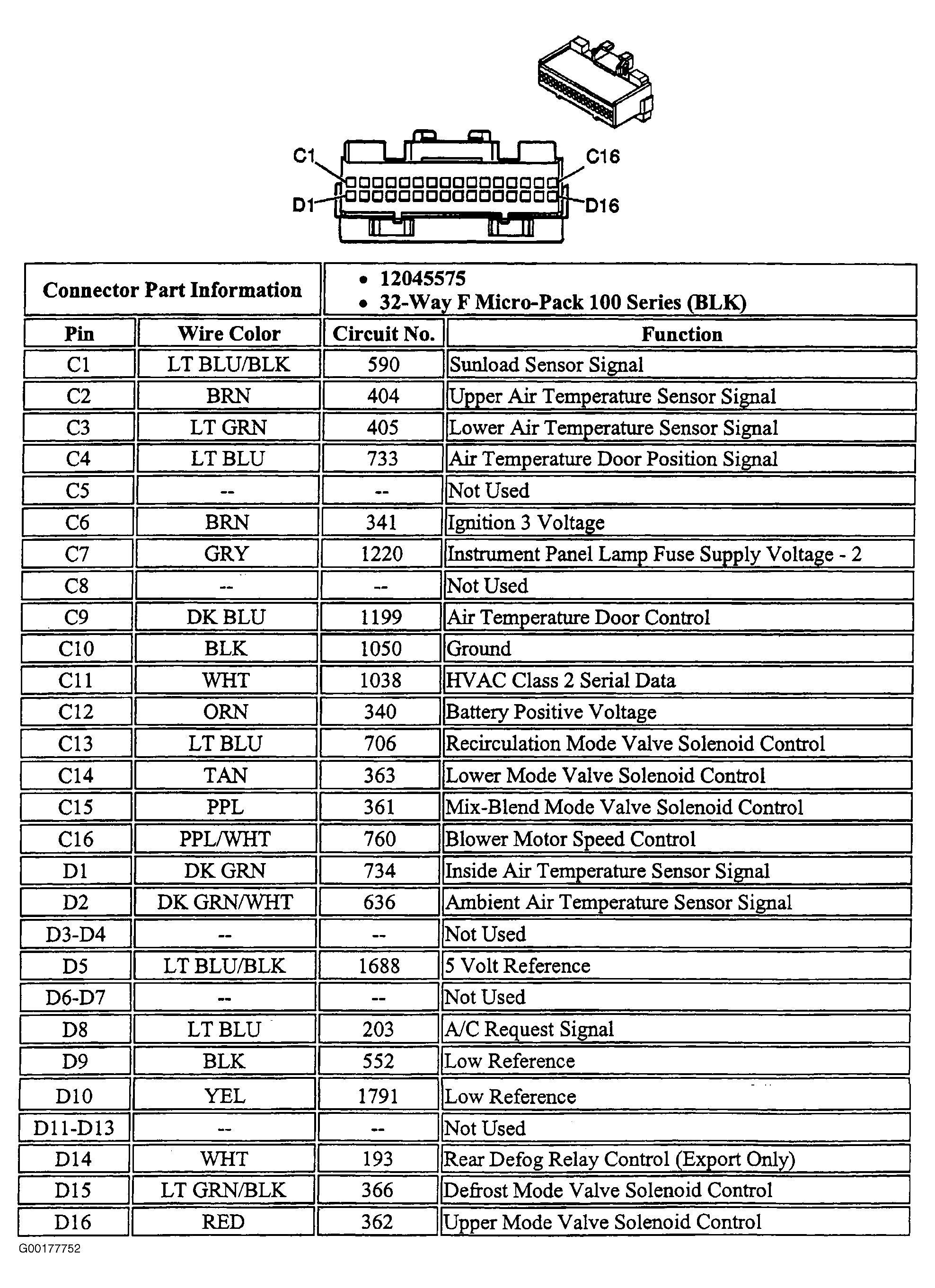

Fig 1: Identifying HVAC Module Harness Connector End View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
