Removal Procedure

CAUTION: Refer to BATTERY DISCONNECT CAUTION in GM VEHICLES CAUTIONS & NOTICES article.
  1. Disconnect the battery negative cable.
  2. Disconnect the cruise control cable. Refer to CRUISE CONTROL CABLE REPLACEMENT (4.3L)  or CRUISE CONTROL CABLE REPLACEMENT (2.2L) .
  3. Disconnect the electrical connector.
  4. Remove the 3 nuts that retain the cruise control module to the mounting bracket studs.

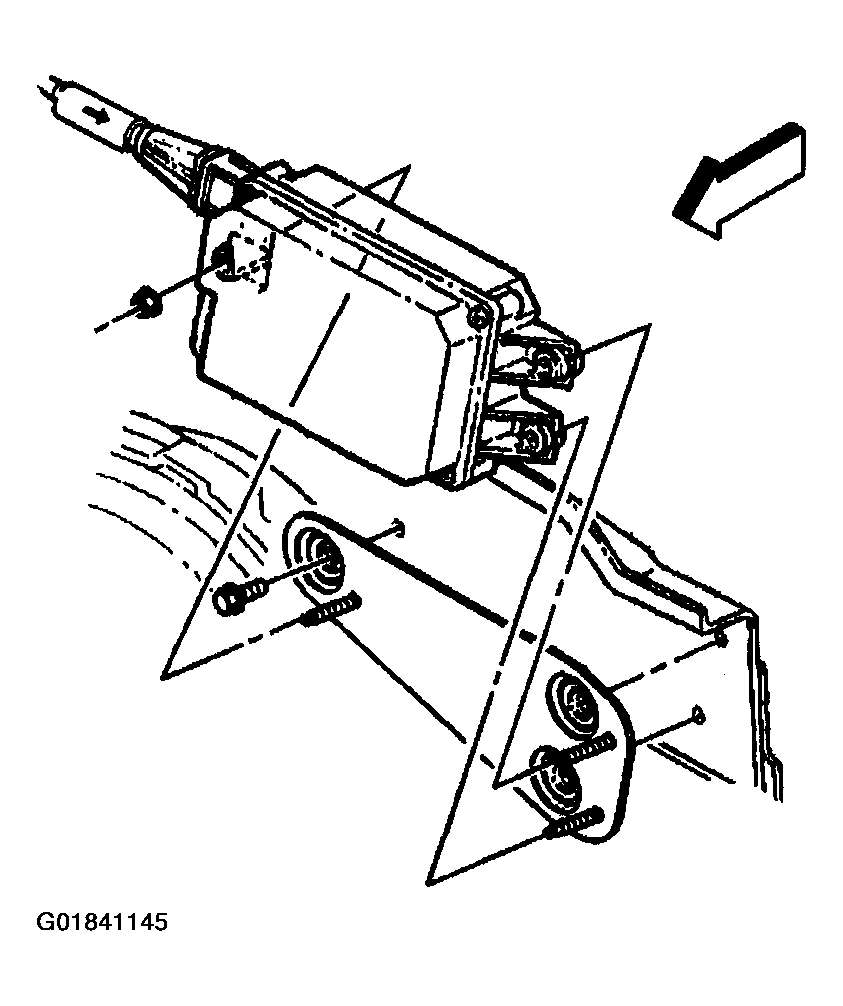

    Fig 1: Locating Cruise Control Module Mounting Nuts & Mounting Bracket Screws
    G01841145Courtesy of GENERAL MOTORS CORP.
  5. Remove the cruise control module from the mounting bracket.
  6. Remove the 3 screws that retain the mounting bracket to the cowl panel.
