Assembly Procedure

  1. Install the flow control spring (2) to the pump housing assembly (1).
  2. Install the control valve assembly (3) to the flow control spring (2).

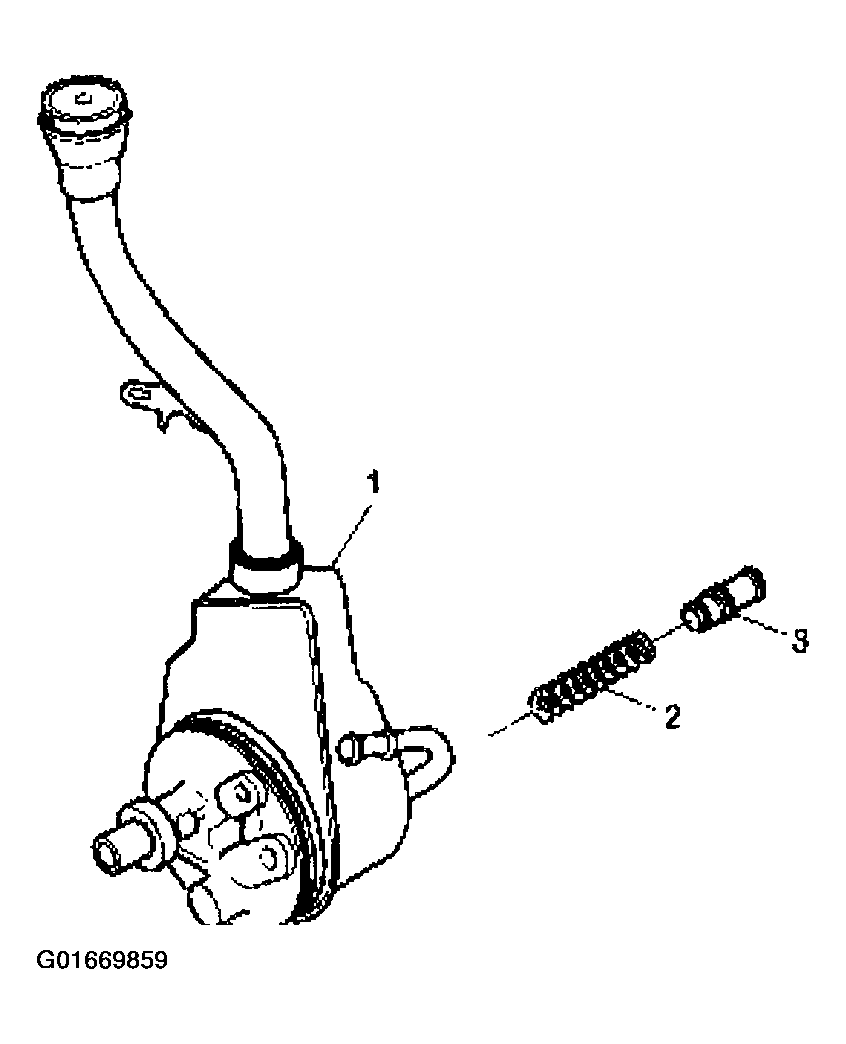

    Fig 1: Installing Flow Control Spring & Control Valve Assembly (P Series)
    G01669859Courtesy of GENERAL MOTORS CORP.
  3. Install the O-ring seal (3) to the connector and fitting assembly (4).
    NOTE: Refer to FASTENER NOTICE .
  4. Install the connector and fitting assembly (4) to the pump housing (1).

    Tighten

    Tighten the connector and fitting assembly (4) to 75 N.m (55 lb ft).

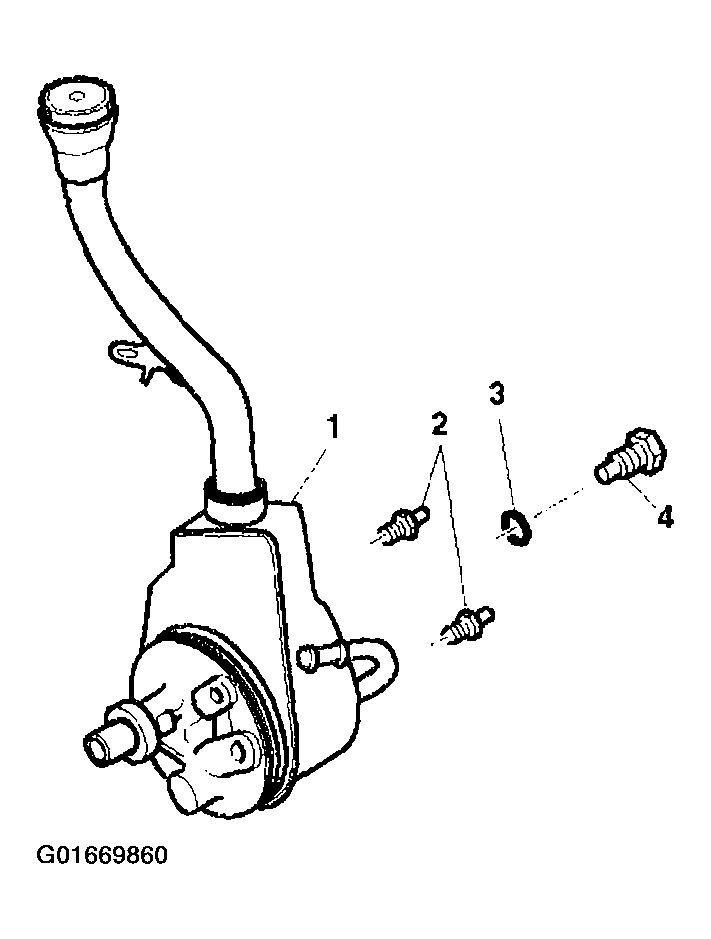

    Fig 2: Installing O-Ring Seal & Connector/Fitting Assembly (P Series)
    G01669860Courtesy of GENERAL MOTORS CORP.
