Power Steering Pump Disassembled View (CB Series)

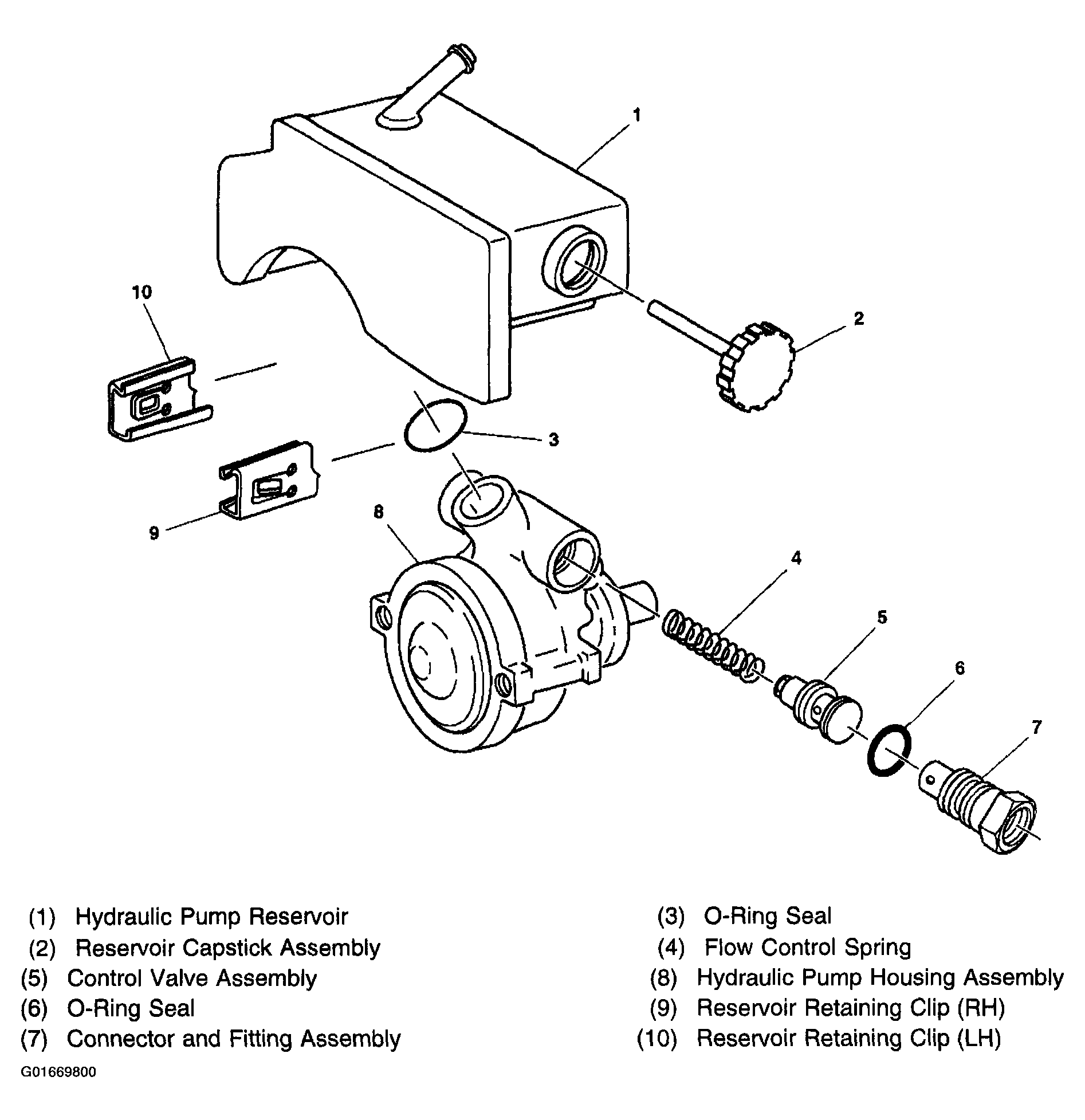

Fig 1: Power Steering Pump Reservoir Disassembled View (CB Series)

G01669800

Courtesy of GENERAL MOTORS CORP.
