Power Steering Gear Disassembled View (700 Gear)

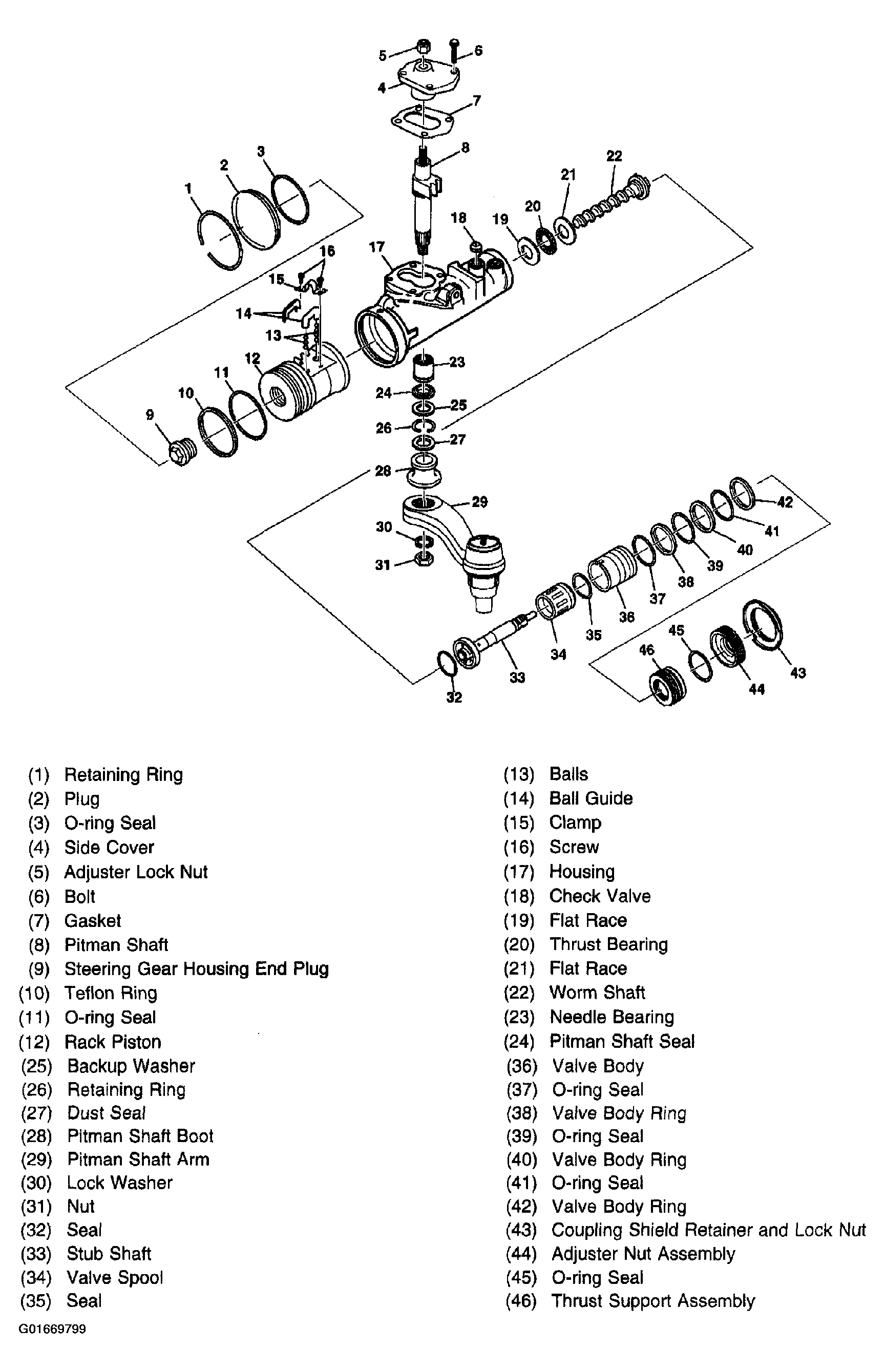

Fig 1: Power Steering Gear Disassembled View (700 Gear)

G01669799

Courtesy of GENERAL MOTORS CORP.
