Rear Wheel Steering Component Views

WARNING: This page is about a different car, the 2004 GMC Sierra, 2004 GMC Cab & Chassis Sierra, 2004 Chevrolet Silverado, and 2004 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Steering Wheel Speed/Position Sensor

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Steering Column
2	C201
3	Steering Wheel Speed/Position Sensor

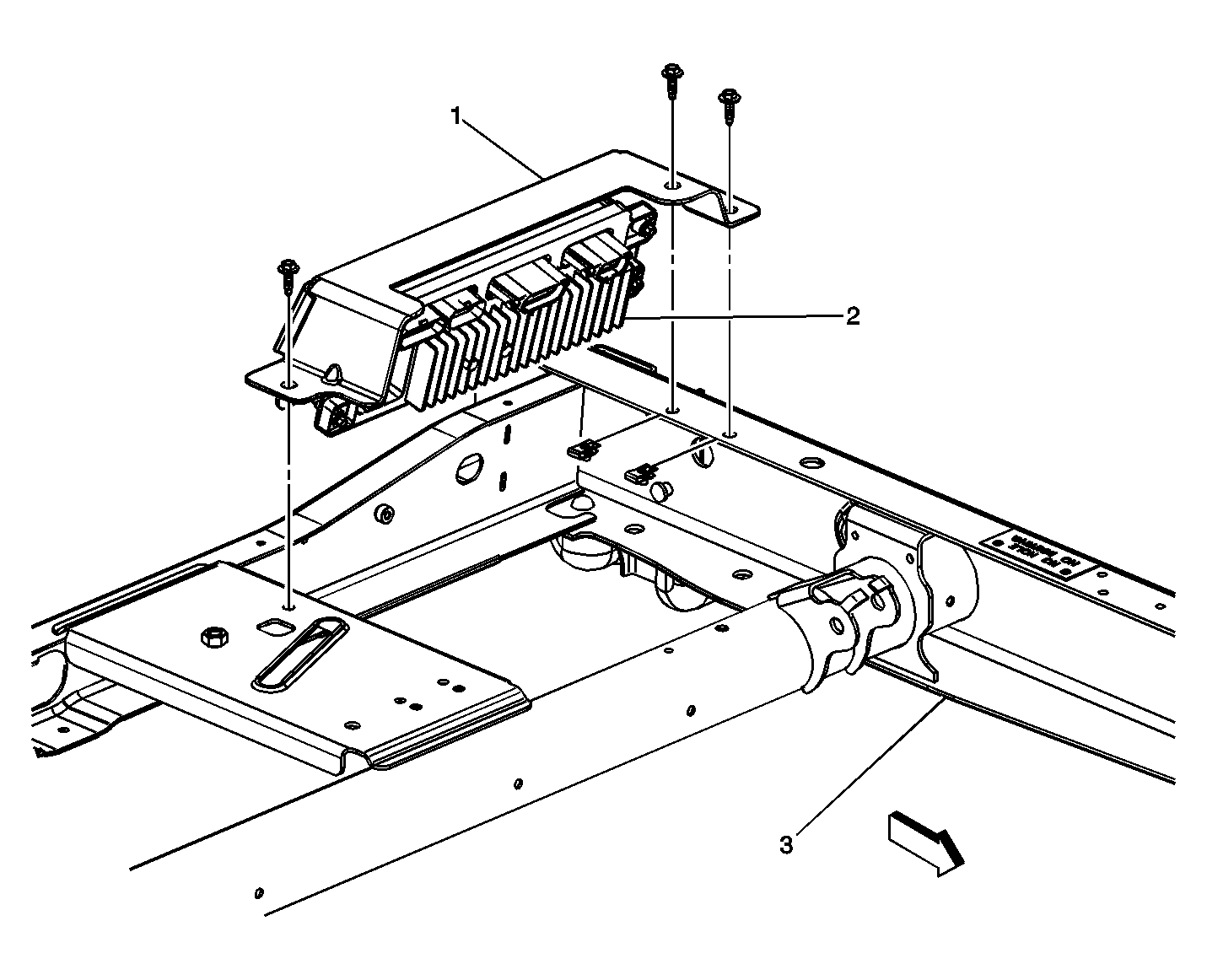

Fig 2: Rear Wheel Steering Control Module

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Mounting Bracket
2	Rear Wheel Steering Control Module
3	Frame

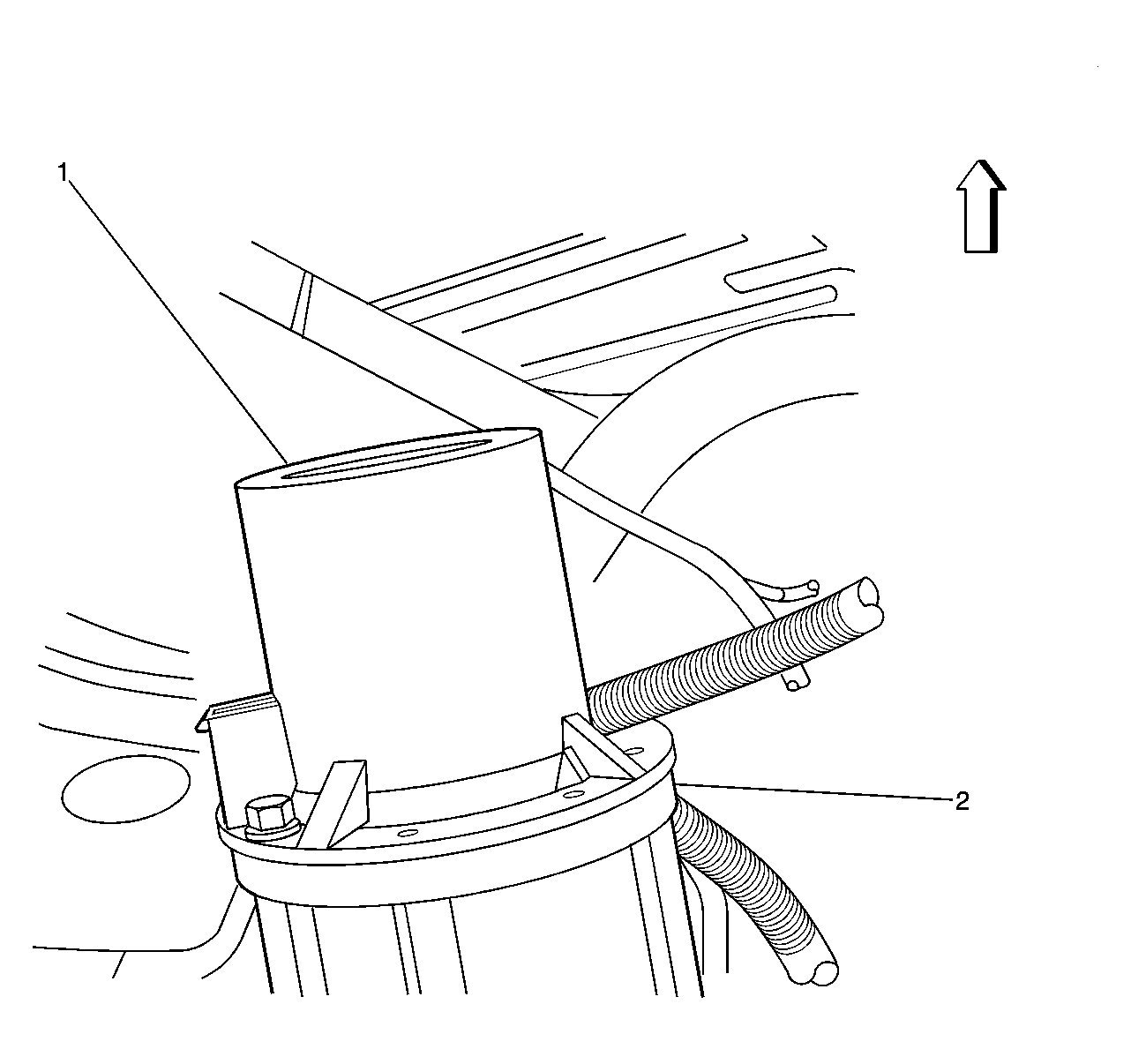

Fig 3: Rear Steering Gear Motor

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Steering Gear Motor
2	Steering Gear Assembly

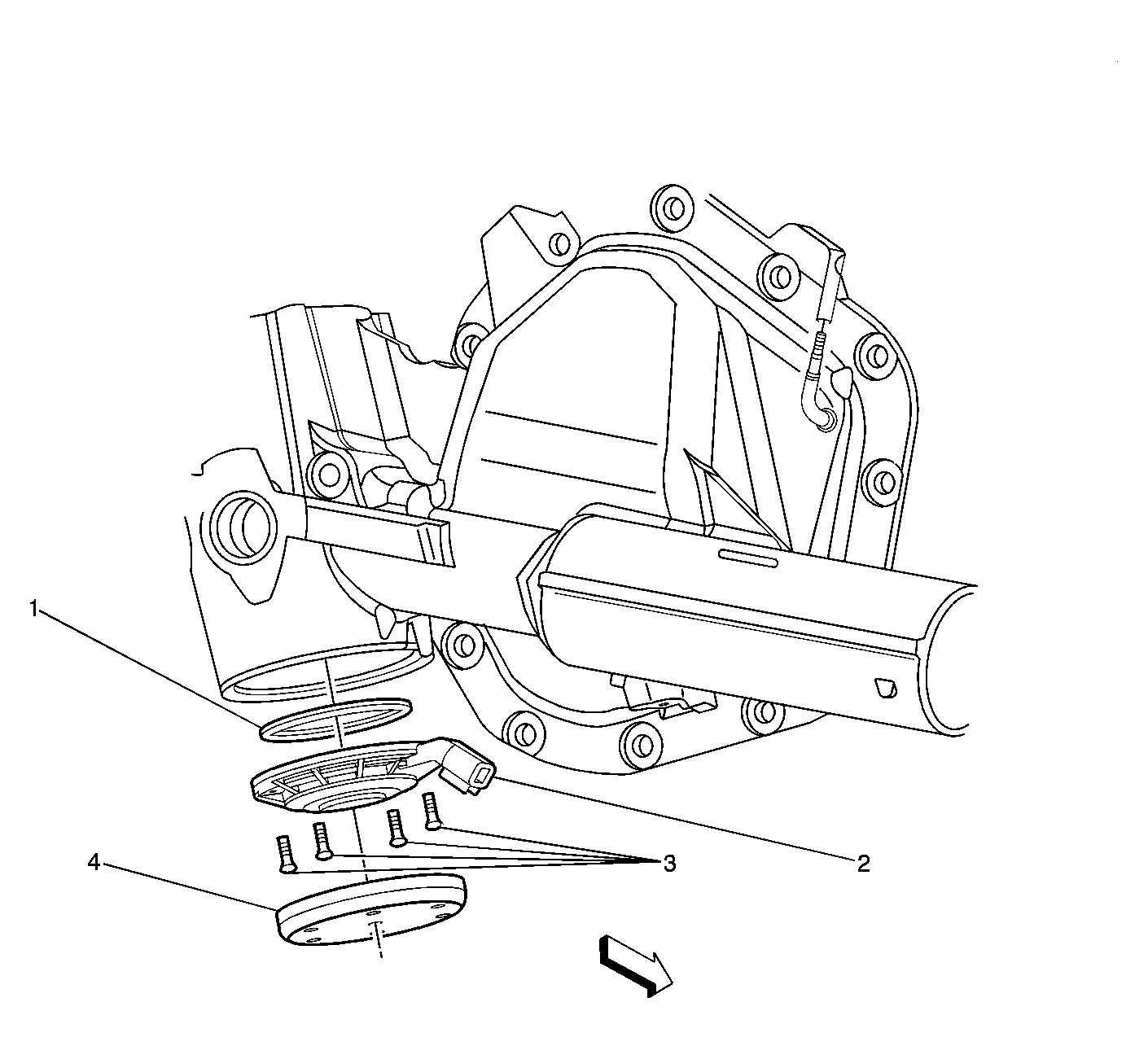

Fig 4: Rear Wheel Position Sensor

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	O-Ring
2	Rear Wheel Position Sensor
3	Retaining Bolts
4	Sensor Cover

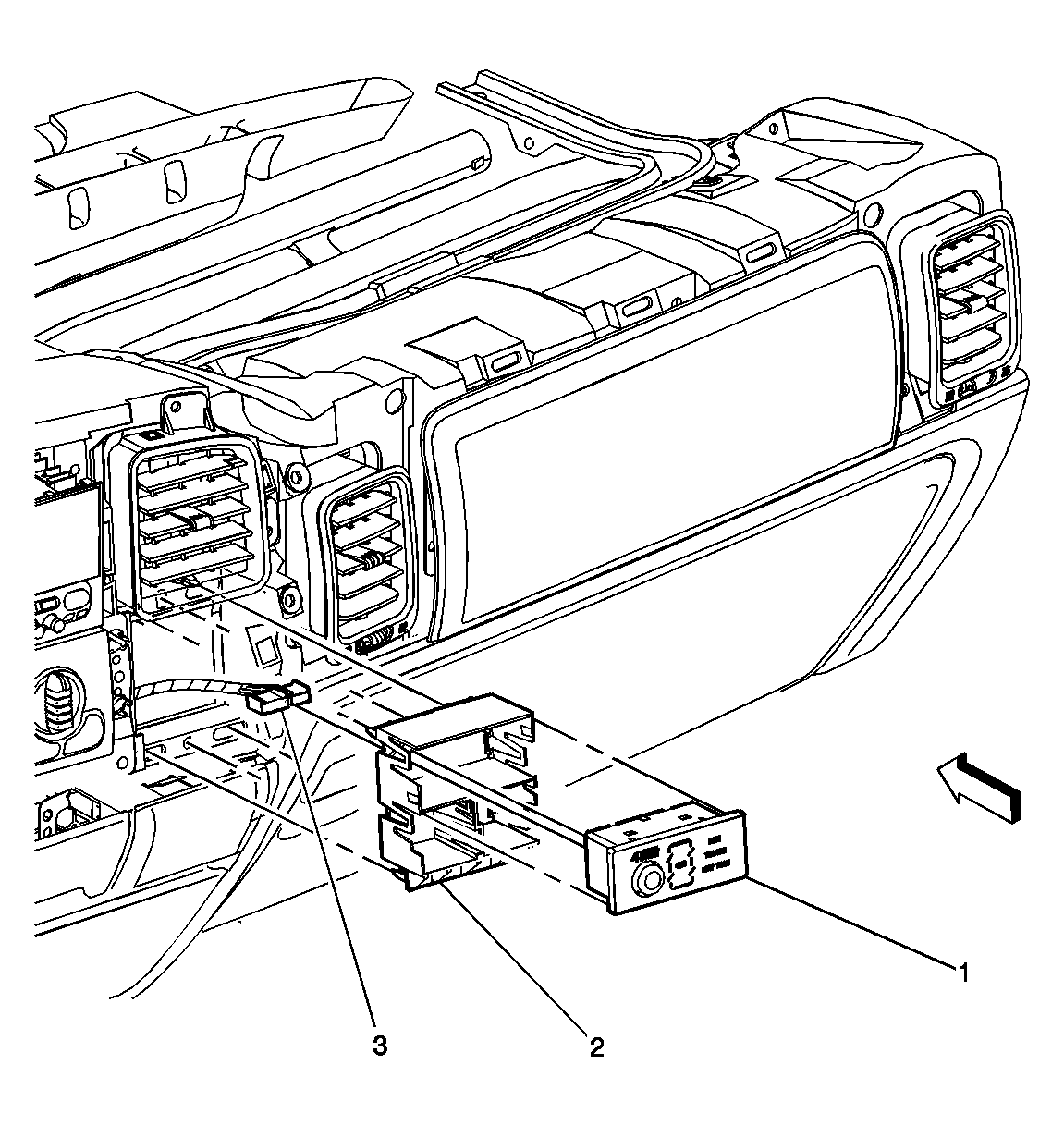

Fig 5: Rear Wheel Steering Mode Select Switch

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Wheel Steering Mode Select Switch
2	Switch Housing
3	Switch Electrical Connector
