Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lower the headliner. Refer to HEADLINER REPLACEMENT in Interior Trim.
  2. Disconnect the cables from the antenna.
  3. Loosen the retaining nut until the antenna assembly can be pulled from the top of the roof.

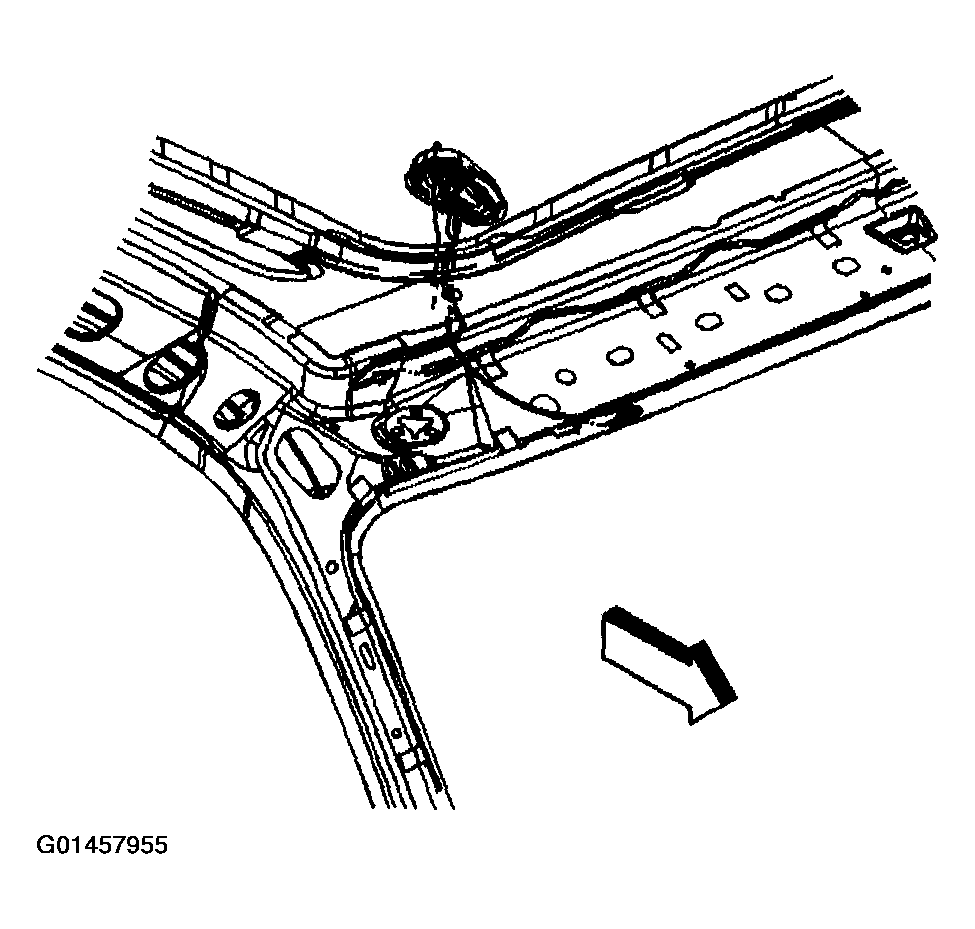

    4. Fig 1: Removing Cellular And Navigation Antenna Assembly
    G01457955Courtesy of GENERAL MOTORS CORP.
