Section 75 (Electrical Component Locator): Grounds
WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
GROUNDS LOCATION
| Component |
Location |

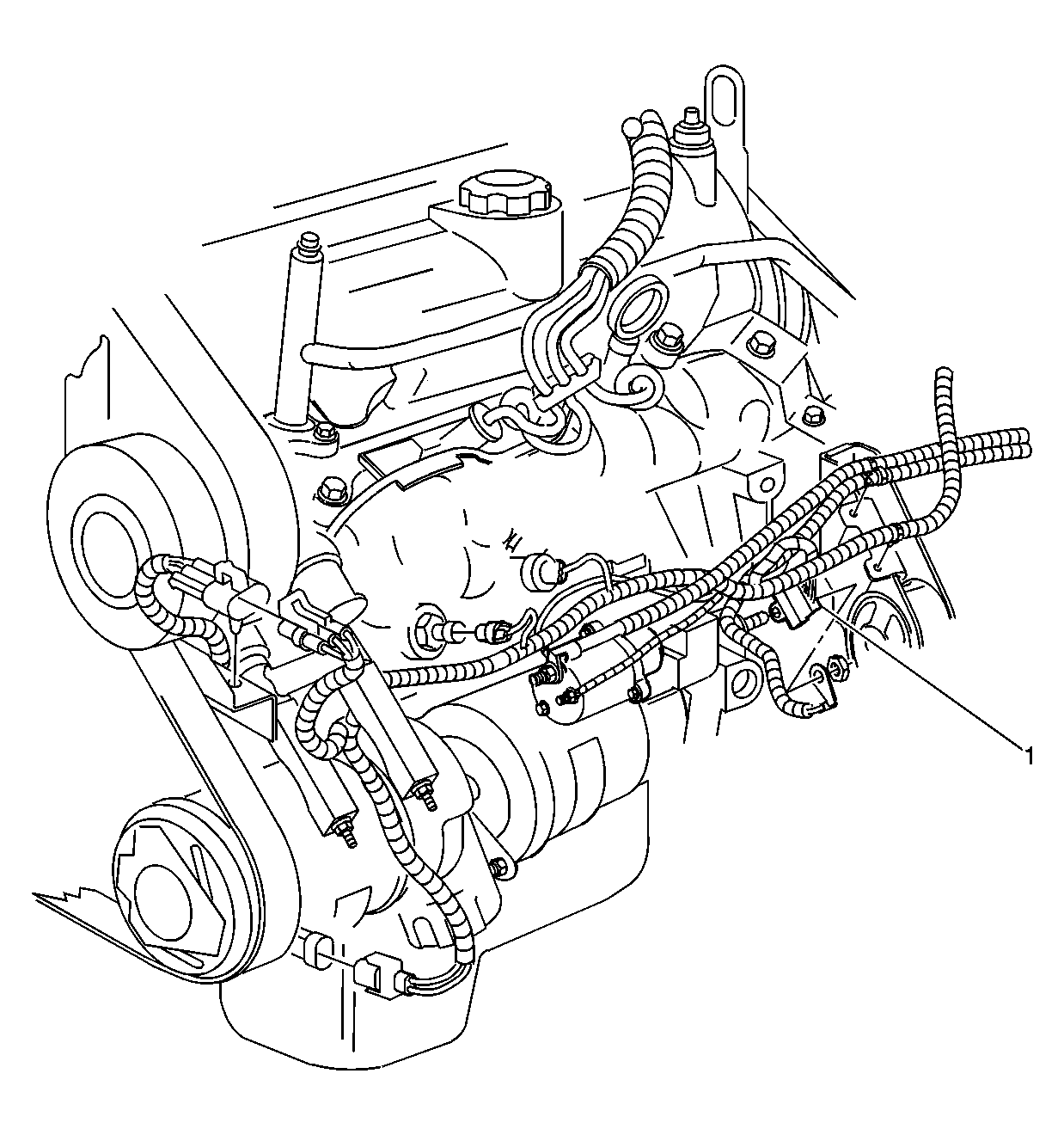

| G102 |
On left side of engine. See Figure |
| G104 |
On left side of engine compartment. |
| G105 |
On left side of engine compartment. |
| G203 |
On right side of dash. See Figure. |
| G204 |
On right side of dash. See Figure. |
