Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lower the headliner.
  2. Disconnect the cables from the antenna.
  3. Loosen the retaining nut till the antenna assembly can be pulled from the top of the roof.

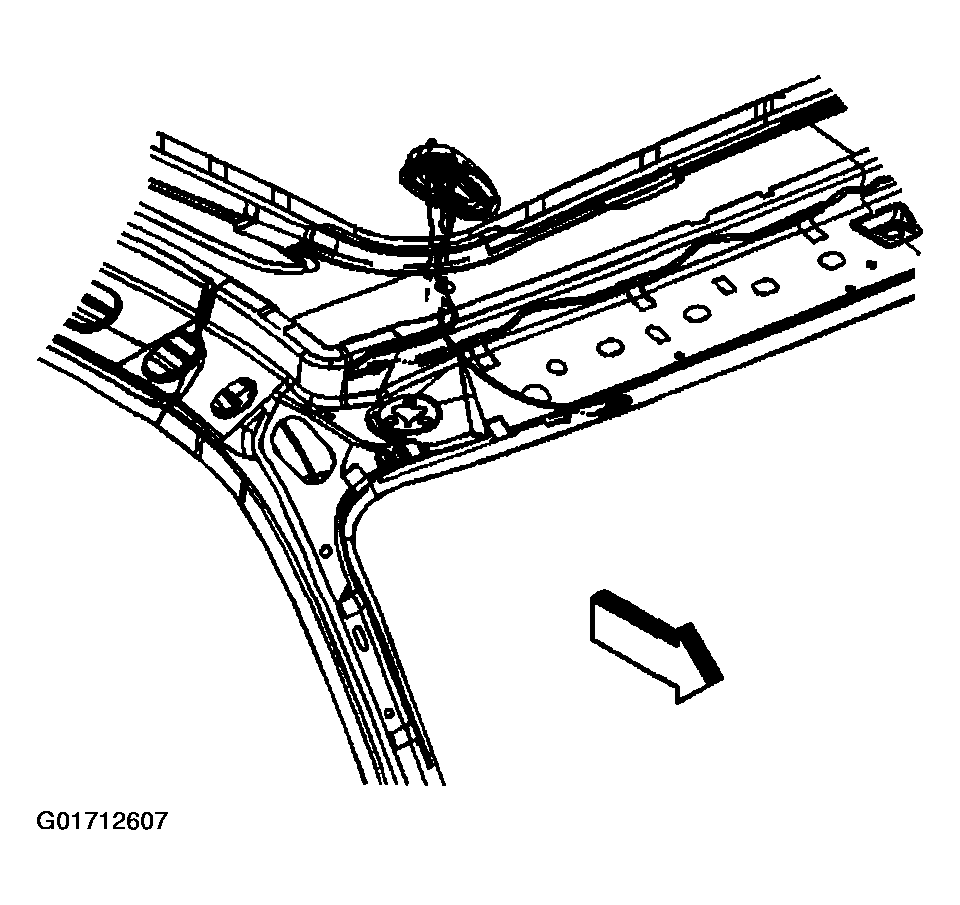

    Fig 1: Antenna Assembly Replacement - Cellular & Navigation
    G01712607Courtesy of GENERAL MOTORS CORP.
