Second Operation Inoperative with Transmitter

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

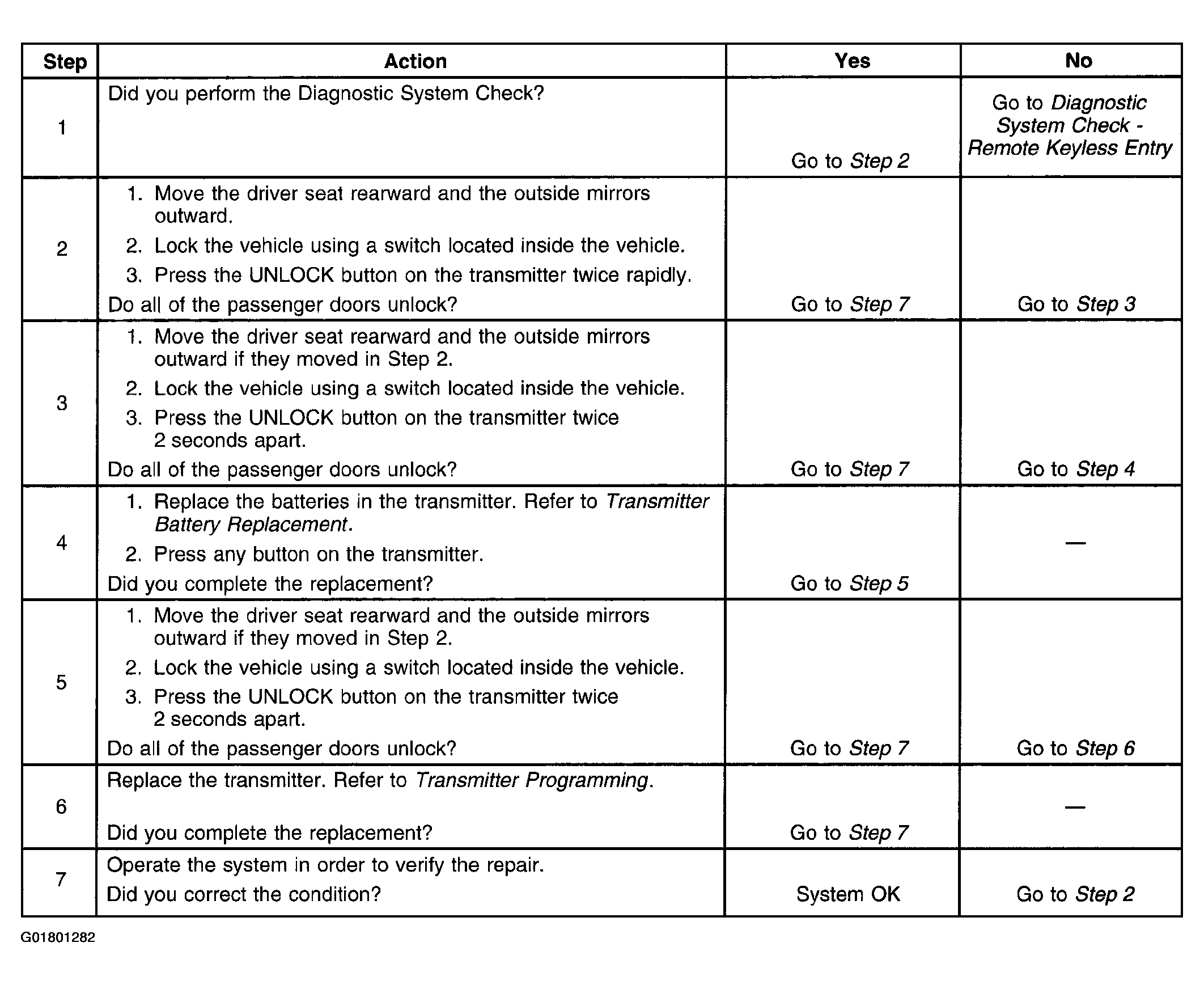

Fig 1: Second Operation Inoperative with Transmitter
G01801282Courtesy of GENERAL MOTORS CORP.
